CS WallMountTrack
Cavity Sliders

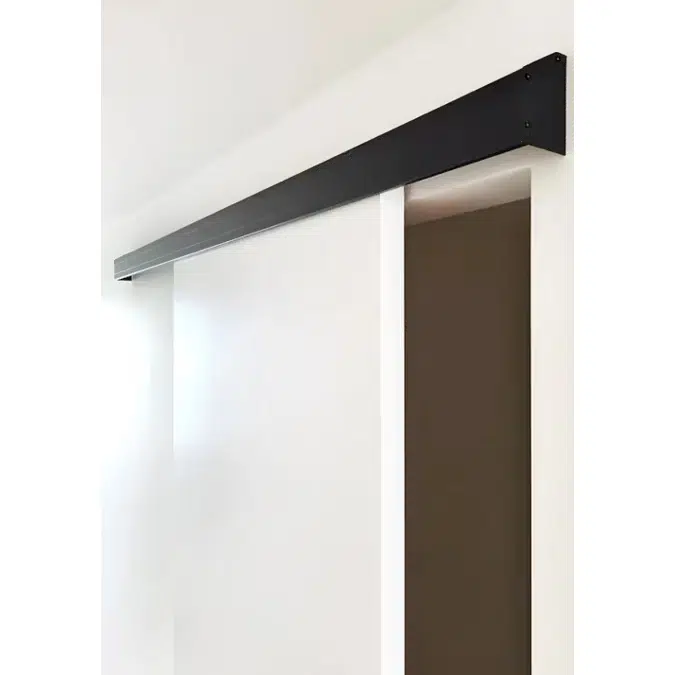

CS WallMountTrack

The CS WallMountTrack is the perfect solution for a contemporary barn door system.

This system stands apart with its distinctive angled pelmet and minimalist design, offering a modern twist on traditional barn door systems.

The track is supplied with pre-drilled fixing holes for quick and easy installation. It also comes with a pre-finished clip-on aluminum fascia and end caps that neatly conceal the top of the door, track, and running gear.

The CS WallMountTrack can also be upgraded with the SofStop® soft-close feature, making it ideal for quiet environments like bedrooms, offices, and patient rooms.

Specification

  • Features

    • The CS WallMountTrack is a modern aesthetic barn door solution.
    • Fascia may be anodized or powder-coated. Standard finishes: Clear or Bronze Anodized. Inquire about custom colors.
    • Available as a single track set-up only, i.e. no double or triple track versions are available.
    • Track can be configured to suit Bi-Parting doors.

    Technical Details

    Fascia Finishes: Clear or Bronze Anodized Aluminum

    Track Finish: Milled Aluminum

    Suitable Door Thickness: 1-3/8” to 1-3/4” (35-45mm)

    Maximum Door Weight: 500 lb (240kg)

    Maximum Track Length: 24' (7.3m)

    Brush Seals Available: Yes

    Carriage Packs: M6 (200lb), M8 (500lb), SofStop, SofStop HD

Technical specification
  • Unique ref.cs-wallmounttrack
  • Product familyCaviTrack
  • Product groupBarn Door Tracks
  • Date of publishing2025-05-12
  • Edition number1
