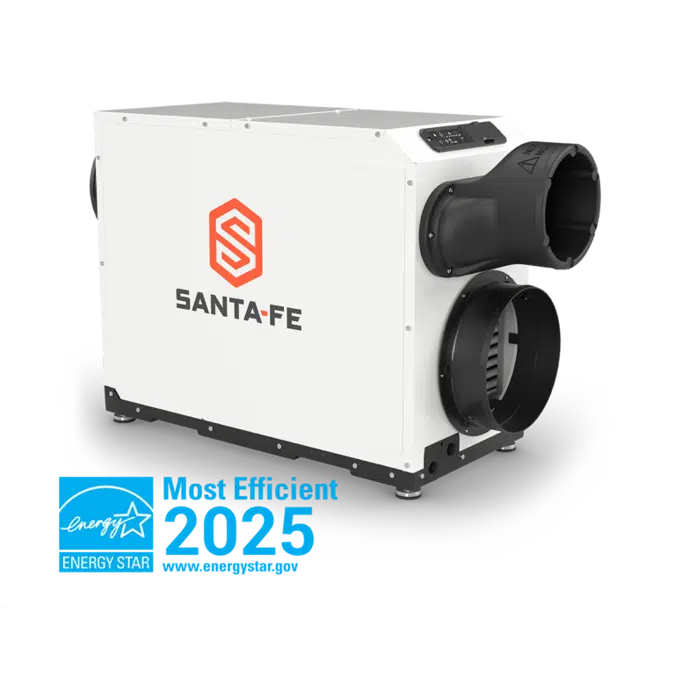

Santa-Fe Ultra V Series: V155 Whole House Ventilating Dehumidifiers

• Part Number: 4047300
• Pint Capacity: 155 pints / 19.3 gallons @ 80°F and 60% RH
• Power: 810 watts @ 73°F and 60% RH
• Supply Voltage: 115V – 60 Hz

Blower

• 435 CFM @ 0.0" WC
• 395 CFM @ 0.2" WC
• 360 CFM @ 0.4" WC
• 322 CFM @ 0.6" WC

Ventilation

• 170 CFM @ 0.0" WC
• 154 CFM @ 0.2" WC
• 140 CFM @ 0.4" WC
• 125 CFM @ 0.6" WC
• Current Draw: 10.0 amps @ 104°F and 36% RH
• Operating Temperature: 34°F min., 105°F max.
• Control Type: Digital control and terminal block with 24V AC on-board power
• Sizing: Up to 3,500 sq. ft.

Performance at 80°F and 60% RH

• Water Removal: 155 pints/day
• Efficiency: 7.1 pints/kWh

Performance at 73°F and 60% RH

• Water Removal: 128 pints / 16 gallons per day
• Efficiency: 6.5 pints/kWh

Air Filter

• MERV-13 filter

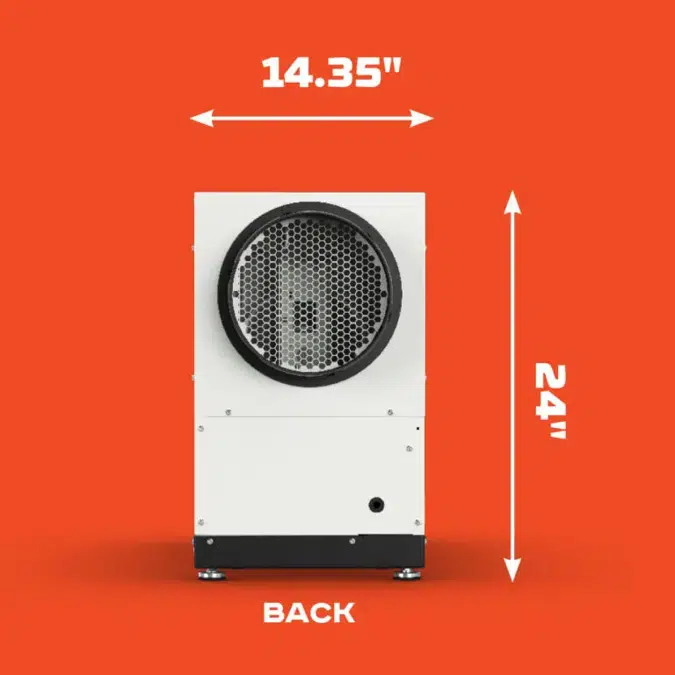

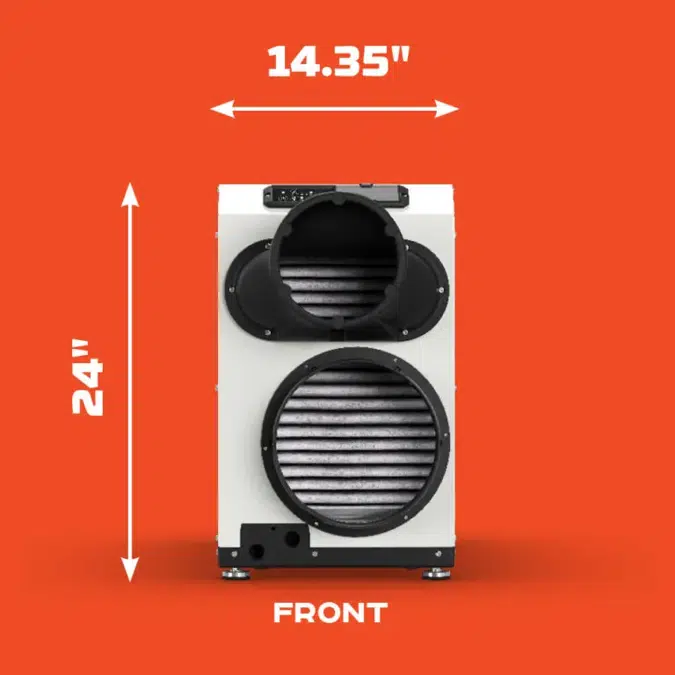

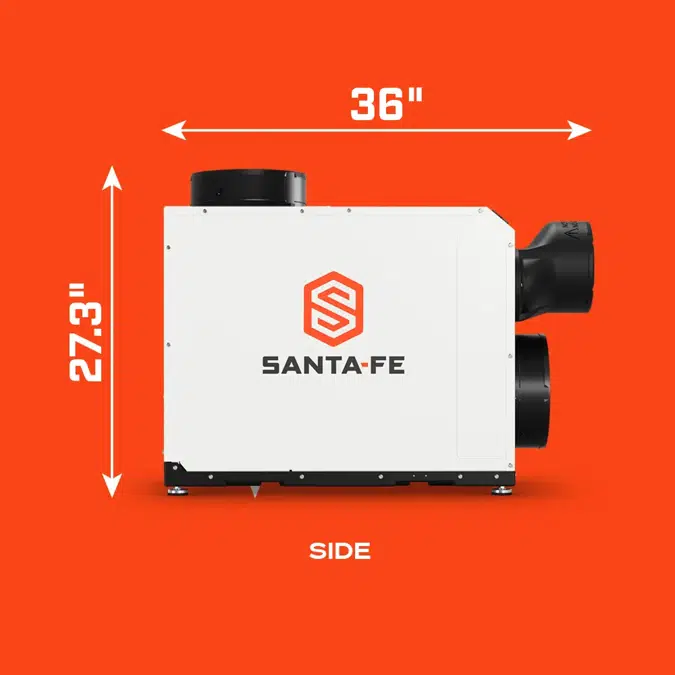

• Unit Dimensions (without collars): 14.35"W × 24"H × 39.25"D
• Unit Weight: 112 lbs.
• Shipping Dimensions: 19.75"W × 28.25"H × 44.2"D
• Shipping Weight: 124 lbs.
