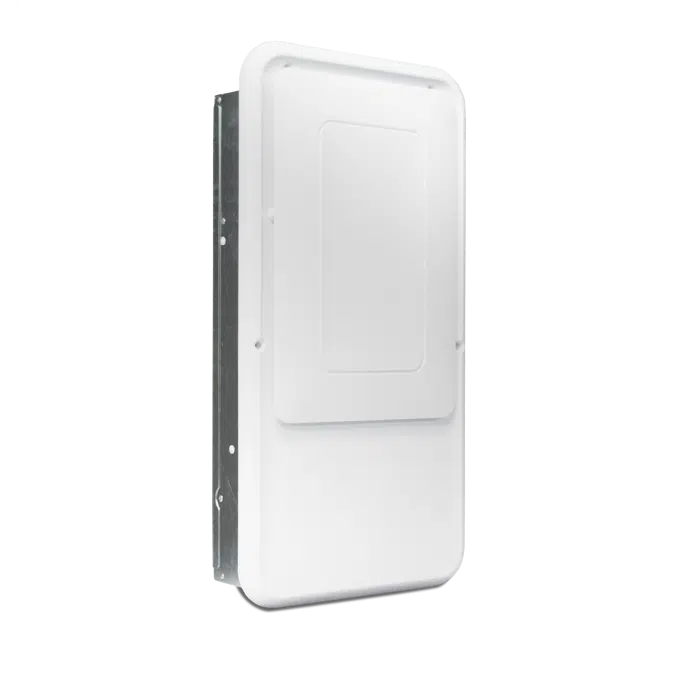

Santa-Fe Ultra MD33 In-Wall Dehumidifier
Santa-Fe Ultra MD33 In-Wall Dehumidifier
Santa-Fe Ultra MD33 In-Wall Dehumidifier
Santa-Fe Ultra MD33 In-Wall Dehumidifier
Santa-Fe Ultra MD33 In-Wall Dehumidifier
    AprilAire

    Santa-Fe Ultra MD33 In-Wall Dehumidifier

    The Santa Fe UltraMD33 is the first true in-wall dehumidifier that features a slim profile.

    The Santa-Fe UltraMD33 runs independent of the HVAC system, removing up to 37 pints of water a day. Sized for up to 1,200 square feet, the UltraMD33 is the perfect solution to control moisture in multi-family applications and features a digital RH control behind a tamper-proof cover.

    The unit can be hardwired into existing electrical or directly plugged into a 110v outlet with the provided cord. Designed to drain directly into a hub-drain or plumbing line, the UltraMD33 is truly a hands-off dehumidification system.

    Ideal Applications

    • Basements
    • Crawl spaces
    • Garages
    • Home theaters
    • Workshops
    • Gun rooms
    • Exercise rooms
    • New home
    • Whole home
    • Commercial
    • Apartments


    Specification
      • Part Number: 4044610
      • Pint Capacity: 37 pints / 4.6 gallons @ 80°F and 60% RH
      • Power: 260 watts @ 65°F and 60% RH
      • Supply Voltage: 120 volt – 1 phase – 60 Hz (hard-wired)
      • Current Draw: 2.2 amps @ 65°F and 60% RH
      • Blower: 155 CFM @ 0.0" WG
      • Average Sound Level: 45 dBA
      • Operating Range: 49°F min., 95°F max.
      • Control Type: Onboard digital controls
      • Sizing: Up to 1,200 sq. ft.

      Performance at 80°F and 60% RH

      • Water Removal: 37 pints/day
      • Efficiency: 5.1 pints/kWh

      Performance at 73°F and 60% RH

      • Water Removal: 22 pints/day
      • Efficiency: 3.46 pints/kWh

      Air Filter

      • Washable filter
      • Part Number: 4037714

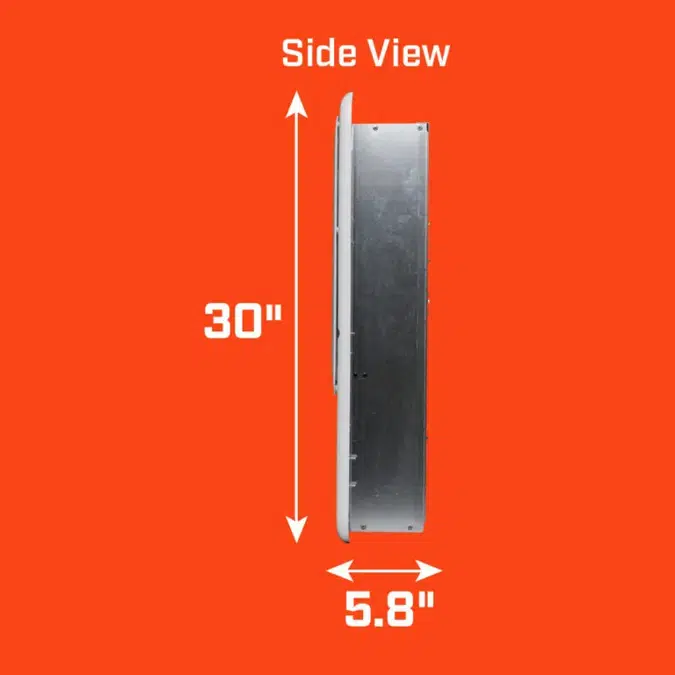

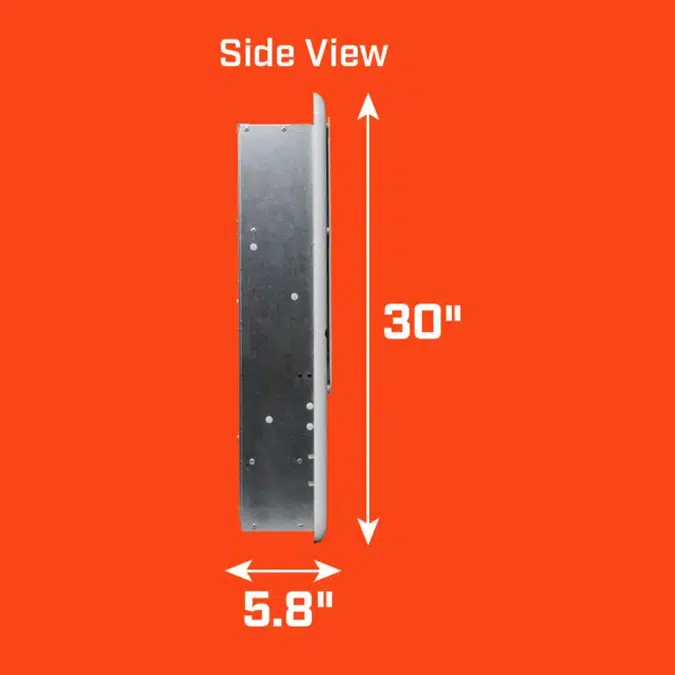

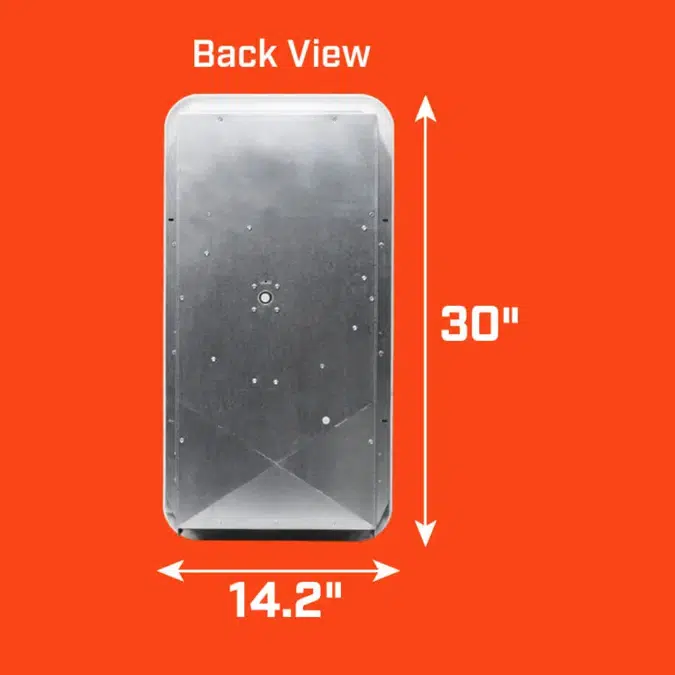

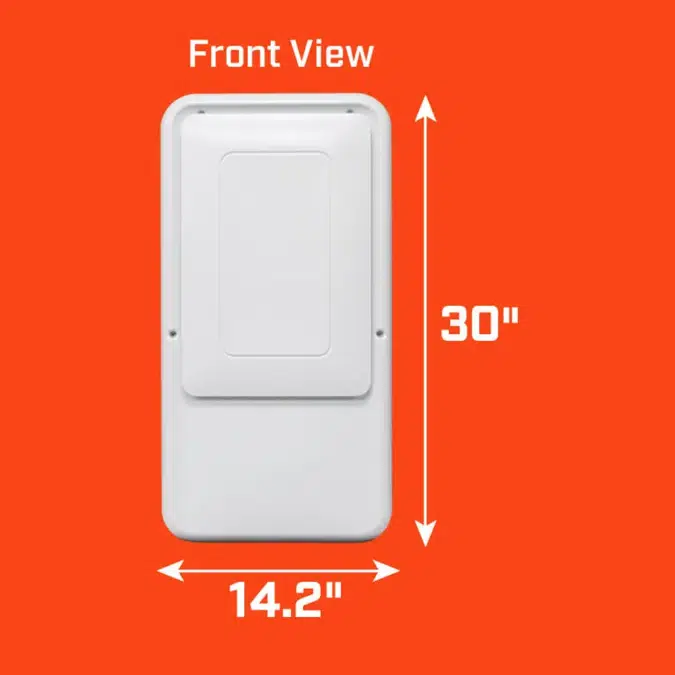

      • Unit Dimensions: 14.19"W × 30"H × 5.75"D
      • Unit Weight: 39 lbs.
      • Shipping Dimensions: 20"W × 37"H × 11"D
      • Shipping Weight: 57 lbs.
    Technical specification
    • Unique ref.santa-fe-ultra-md33-in-wall-dehumidifier
    • Product familyDehumdification
    • Product groupIn Wall Dehumidifiers
    • TypeObject (single object)
    • Date of publishing2026-04-06
    • Edition number1
    Related
    • Material mainMetal
    • Designed inUnited States
    • Manufactured inUnited States
    Classification
    • BIMobject CategoryHVAC - Mechanical Ventilation
    • Uniclass 2015 CodePr_65_67_39
    • Uniclass 2015 DescriptionHumidifiers and dehumidifiers
    • CSI MasterFormat 2014 Code23 84 16
    • CSI MasterFormat 2014 TitleMechanical Dehumidification Units
    • OmniClass Number23-33 27 13
    • OmniClass TitleDehumidifiers
