Santa-Fe Ultra V Series: V125 Whole House Ventilating Dehumidifiers

• Part Number: 4047200
• Pint Capacity: 125 pints / 15.5 gallons @ 80°F and 60% RH
• Power: 800 watts @ 73°F and 60% RH
• Supply Voltage: 115V – 1 phase – 60 Hz

Blower

• 385 CFM @ 0.0" WC
• 350 CFM @ 0.2" WC
• 305 CFM @ 0.4" WC
• 260 CFM @ 0.6" WC

Ventilation

• 150 CFM @ 0.0" WC
• 135 CFM @ 0.2" WC
• 120 CFM @ 0.4" WC
• 100 CFM @ 0.6" WC
• Current Draw: 10.2 amps @ 104°F and 36% RH
• Operating Temperature: 34°F min., 105°F max.
• Control Type: Digital control and terminal block with 24V AC on-board power
• Sizing: Up to 3,000 sq. ft.

Performance at 80°F and 60% RH

• Water Removal: 125 pints / 15.5 gallons per day
• Efficiency: 5.9 pints/kWh

Performance at 73°F and 60% RH

• Water Removal: 101 pints / 12.6 gallons per day
• Efficiency: 5.2 pints/kWh

Air Filter

• MERV-13 filter

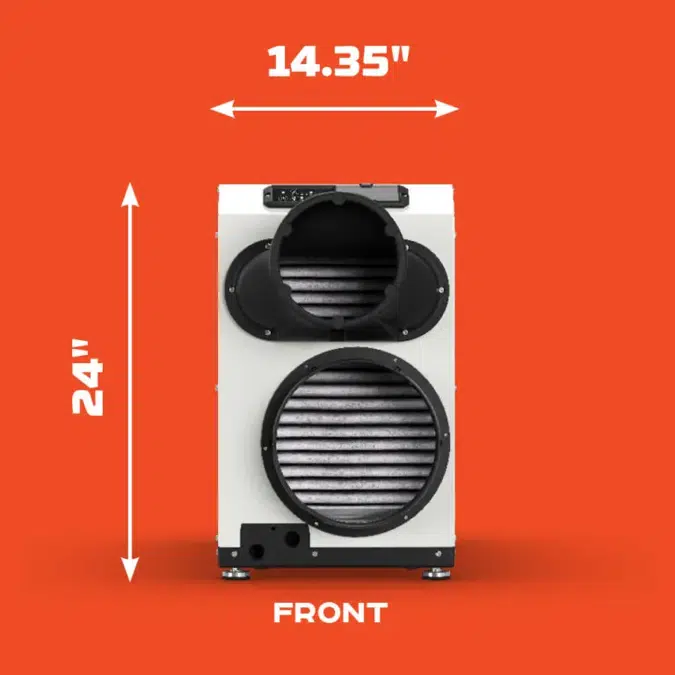

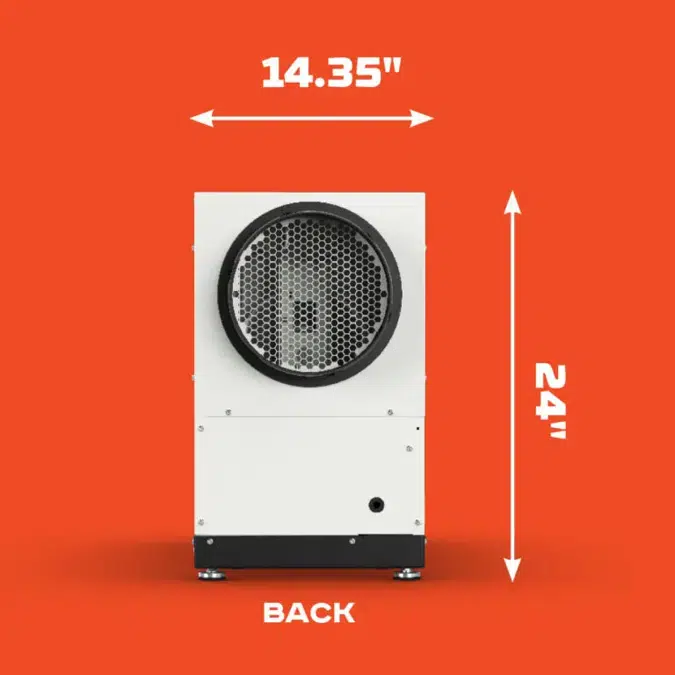

• Unit Dimensions (without collars): 14.35"W × 24"H × 39.25"D
• Unit Weight: 104 lbs.
• Shipping Dimensions: 19.75"W × 28.25"H × 44.2"D
• Shipping Weight: 115 lbs.
