acoustic sectional door NOISELOCK dB47
acoustic sectional door NOISELOCK dB47
acoustic sectional door NOISELOCK dB47
acoustic sectional door NOISELOCK dB47
acoustic sectional door NOISELOCK dB47
    Winlock

    acoustic sectional door NOISELOCK dB47

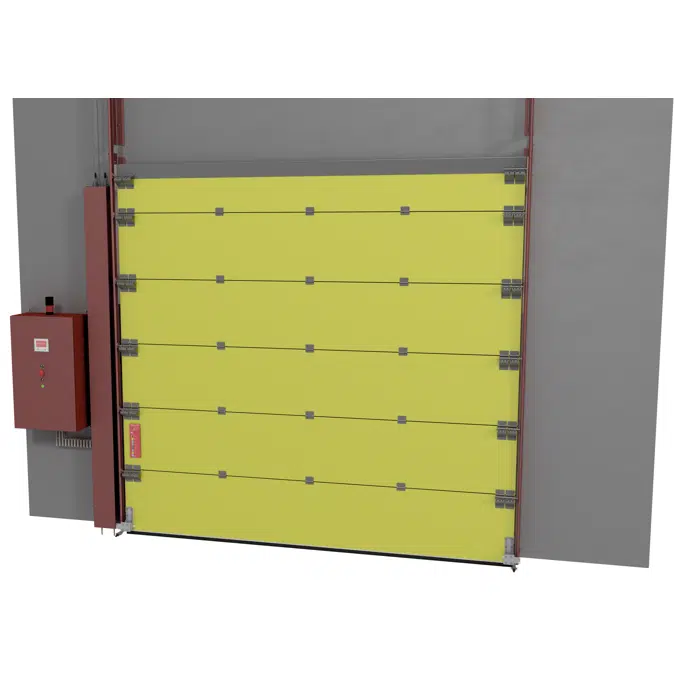

    This sound-insulating sectional door is compatible with all our other applications. Available in a version with 36dB or 47dB attenuation (according to EN ISO 10140-2), tailored to the needs of your project.

    Our Winlock sectional doors are fully compliant with European standards. They are designed for industrial and commercial applications. Each door is custom-built to specification and combines durability with user-friendly operation, available in both manual and automatic versions. A wide range of finishes and colours ensures seamless integration with any architectural style. Winlock doors are suitable for a wide range of sectors, including industrial production facilities, logistics and distribution centres, commercial and retail environments, and public buildings or critical infrastructure where strict standards apply.

    Specification
    • The NOISELOCK 47 dB provides a solution for high-noise production sites, concert halls, healthcare facilities, or testing environments where external sounds may interfere with operations or measurements.

      • EN 13241
        • Test-Standard: EN ISO 10140-1
        • Classification standard: EN ISO 717-1
      • Performance: Rw (C;Ctr) = 47 (-1;-4) dB

      Available and compatible with other options including Fire-resistants, ATEX, liquidbarrier, and more.

    Technical specification
    • Unique ref.noise_lock-db47
    • Product familyNOISE_LOCK
    • Product groupdB47
    • TypeObject (single object)
    • Date of publishing2026-04-24
    • Edition number1
    Classification
    • BIMobject CategoryDoors - Acoustic Doors
    • IFC classificationDoor
    • ETIM CodeEC003535
    • ETIM NameInterior door (complete with frame)
    • Uniclass 2015 CodeAc_15_50_25
    • Uniclass 2015 DescriptionDoors, windows and glazing surveying
    • CSI MasterFormat 2014 Code08 36 13
    • CSI MasterFormat 2014 TitleSectional Doors
    • OmniClass Number23-17 11 19 21 13
    • OmniClass TitleSectional Overhead Composite Doors
