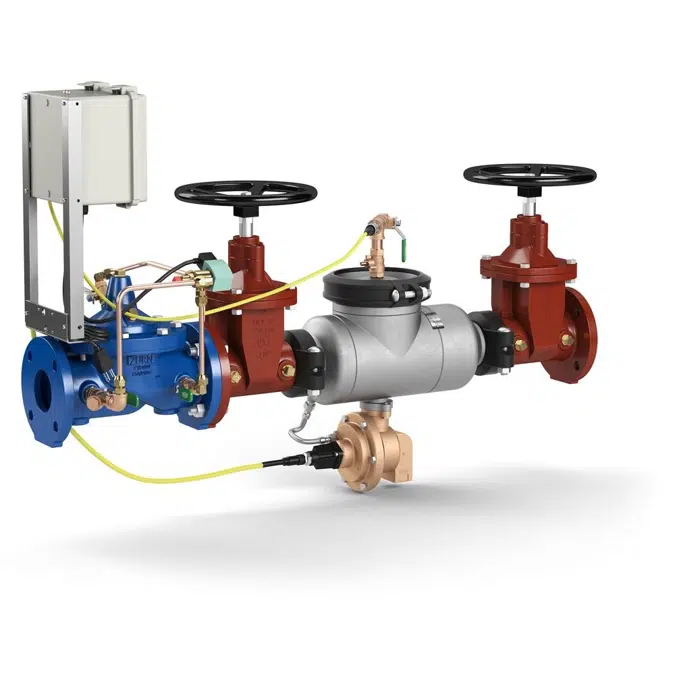

Wilkins FCIS Connected Flood Control System

The Connected Flood Control System (Model FCIS) shall consist of a Reduced Pressure Principle Assembly (RP) (Model 375ASTW1, 375AW1, 375W1), a Solenoid Control Valve(SCV) (Model ZW206), and a Zurn Relief Valve Monitor and shall be constructed and tested at the factory as a complete assembly. The RP shall be certified to NSF/ANSI/CAN 61 & 372, and shall be ASSE 1013 Listed. The RP shall be furnished with full port, resilient seated shut-off valves, and shall be equipped with an integral Relief Valve Monitor that monitors the Relief Valve in a closed position. The seat ring and the check valves shall be Noryl, the stems and springs shall be Stainless Steel, and the elastomers shall be EPDM. The SCV shall be a single seated, line-pressure-operated, diaphragm-actuated, pilot-controlled valve. The SCV shall seal by means of a corrosion-resistant seat and a resilient, rectangular seat disc. The stem of the SCV shall be guided top and bottom by integral bushings, and shall contain no packing glands or stuffing boxes. The SCV shall be protected with internal and external FDA approved epoxy coating, and the diaphragm shall not be used as a seating surface. The Relief Valve Monitor shall have an input voltage of 120 VAC, and shall be provided with an output of 24 VDC controlled by a relay. The Relief Valve Monitor shall be housed in a water-tight NEMA enclosure, and shall have both normally open and normally closed outputs. The three components, the RP, SVC, and Relief Valve Monitor, when combined together, automatically shut off the water supply in the event of catastrophic relief valve discharge. The Reduced Pressure Principle Assembly, Solenoid Control Valve, and assembled as a complete unit shall be the WILKINS FCIS.

Compliance:

• NSF Standard 61
• NSF Standard 372
• ASSE® Listed 1013
• CSA® Certified B64.4
• cUPC listed
• UL listed
• IPC listed
• NPCC listed
• Product USC Approved
• Product FM Approved

Features:

• Ideal for installation in areas not immediately visible where undetected relief valve discharge could potentially cause catastrophic flooding and water damage.
• Automatic shutoff of the water system reduces potential for costly flooding damage
• 24/7 relief water discharge data provides secure real-time monitoring and notifications
• Customizable water shutoff timer
• The pre-wired FCIS package includes a Model 375W1, 375AW1 or 375ASTW1
• Reduced Pressure Principle Backflow Preventer and is attached to a Model ZW206 ACV Solenoid Control Valve.
• Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
• Reduced Pressure Principle Assembly is AWWA compliant C511 (with gates only ) and C550
