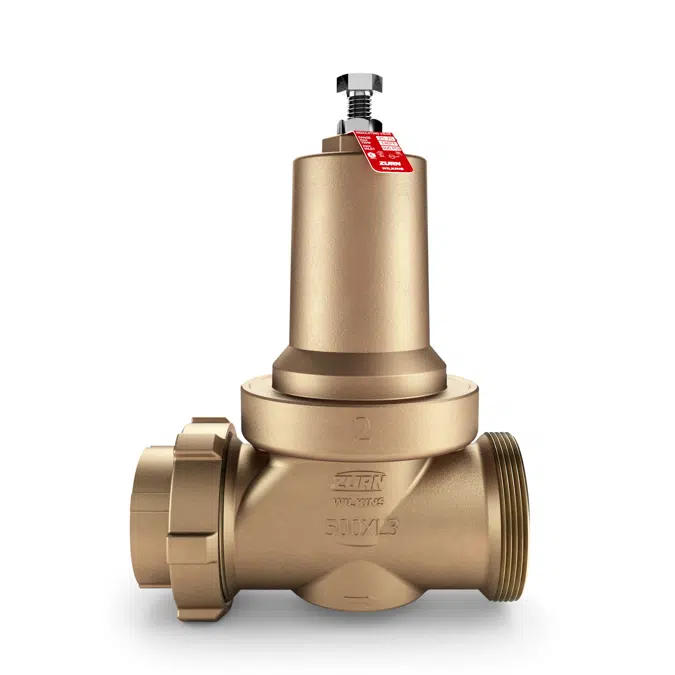

Wilkins 500XL3 Pressure Reducing Valve 1" - 4"

The Pressure Reducing Valve shall be certified to NSF/ANSI/CAN 61 & 372, consisting of a low lead cast bronze body and bronze bell housing, and a bolt to adjust the downstream pressure. The bronze bell housing shall be threaded to the body on the 1"-2" sizes or affixed to the body with stainless steel bolts on the 2-1/2", 3" or 4" sizes. The assembly shall be of the balanced piston design and shall reduce pressure in both flow and no-flow conditions with integral venturi for improved flow performance. The assembly shall be accessible for maintenance without having to remove the body from the line. Shall include a removable cartridge and corrosion resistant materials. The Pressure Reducing Valve shall be a ZURN WILKINS Model 500XL3.

Application:

Zurn Wilkins model 500XL3 designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The patented integral venturi enables the valve to have best-in class flow performance. The high flow capacity makes this device most suitable for commercial plumbing systems and Industrial water lines. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion (1" - 2"). The balanced piston design enables the pressure reducing valve to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes. Includes a removable cartridge and corrosion resistant materials.

Compliance:

ASSE® Listed 1003, cUPC® Listed, CSA® Certified B356, Meets the requirements of NSF/ANSI/CAN 61 & 372

Features:

• Industry leading flow performance, durability, and premium materials of all direct-acting pressure reducing valves on the market
• Delivers best-in-class flow performance of all direct-acting pressure reducing valves allowing for value engineered design optimization
• Compact and shortest pressure reducing valve on the market allowing for installation versatility
• Highly durable, all-bronze body resists corrosion and provides easy access to cartridge internals
• Get smart pressure alerts with optional ZCSM-RP
• Lead-free

Keywords: PRV, Pressure Reducing Valve, 500XL3
