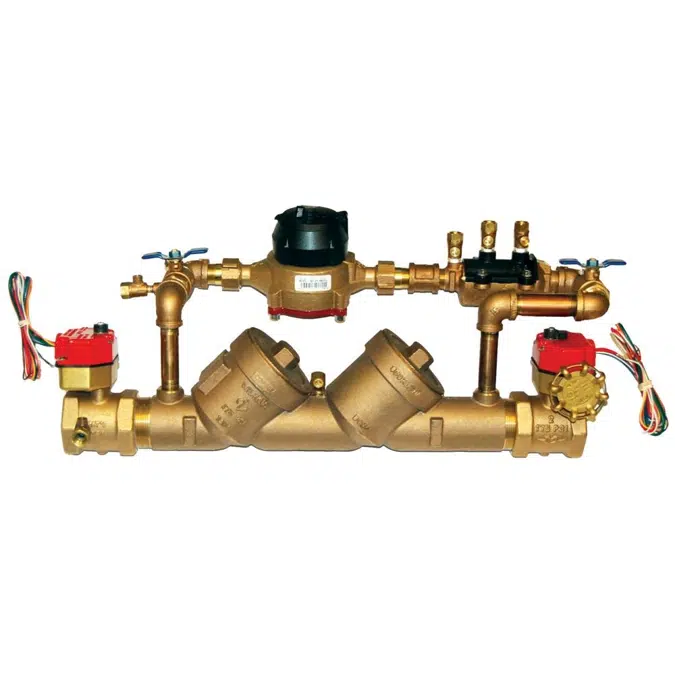

Wilkins 950XLTDABF Double Check Detector Assembly, 2"
Wilkins 950XLTDABF Double Check Detector Assembly, 2"
    Wilkins

    Wilkins 950XLTDABF Double Check Detector Assembly, 2"

    Designed for installation on potable water lines in fire protection systems to protect against both backsiphonage and backpressure of polluted water into the potable water supply. The Model 950XLTDABF shall provide protection where a potential health hazard does not exist. Incorporates metered by-pass to detect leaks and unauthorized water use.
    Specification
    • The Double Check Detector Backflow Prevention Assembly shall be ASSE Listed 1048, and supplied with butterfly valves. The main body and access covers shall be bronze (ASTM B 584), the seat ring and all internal polymers shall be NSF® Listed Noryl™ and the seat disc elastomers shall be SILICONE. The first and second check shall be located at a 45° angle and accessible for maintenance from the top of the device, without removing the device from the line. Each check shall have separate access covers and test cocks shall be accessible from the top of the device. Test cocks shall be protected from debris by a plug. The Double Check Detector Backflow Prevention Assembly shall be a ZURN WILKINS Model 950XLTDABF.
    Technical specification
    • Unique ref.zurn-950xltdabf
    • Product familyBackflow Preventers
    • Product groupDouble Check Detector Assembly
    • TypeObject (single object)
    • Date of publishing2025-09-02
    • Edition number1
    Links
    Related
    • Material mainBronze
    • Material secondaryBronze
    • Designed inUnited States
    Classification
    • BIMobject CategoryPlumbing - Valves
