QT QuickTurn™ Back-To-Back Horizontal Adjustable Closet Carrier - QT-101-D

QT QuickTurn™ Back-To-Back Horizontal Adjustable Closet Carrier - QT-101-D

QT QuickTurn™ Back-To-Back Horizontal Adjustable Closet Carrier - QT-101-D

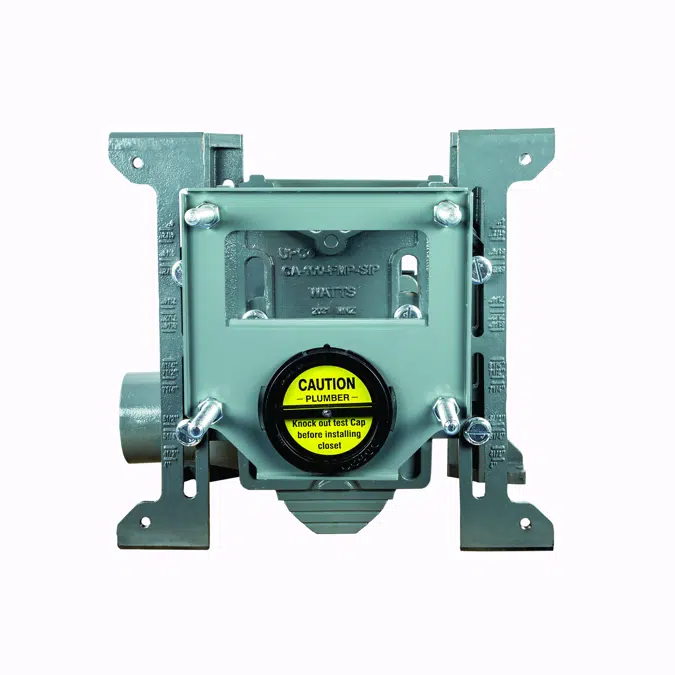

Watts QT-101-D back-to-back horizontal adjustable water closet carrier with epoxy coated cast iron fitting, 4"(102) no hub waste and 2"(51) no hub vent connections, epoxy coated cast iron patented faceplate assembly, and epoxy coated cast iron foot supports with incremental height markings. Adjustable for standard and wheelchair height, adjustable ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts. Carrier complies with the requirements of ASME A112.6.1M up to a 500 lb. (227 kg) static load.

Specification

Features
- Patent-pending wall plate
- Quarter-turn locking nipple seals mechanically with an O-ring
- Nipple is fully adjustable from outside finished wall
- 3/8" threaded flush valve mounting bosses
- Same size bolt heads
Keywords: tankless, water, heater, valve, set, lead, free, cotter, pin, float, valve, toilet, drainage products, watts, watts regulator, plumbing, drains

Technical specification

Unique ref.qt-101-d-closet-carrier
Product familyDrainage Solutions
Product groupFixture Carriers
TypeObject (single object)
Date of publishing2021-03-22
Edition number1

Links

Product urlhttps://www.watts.ca/products/drainage-solutions/fixture-carriers/qt-101-D
Installation instructionshttps://www.watts.ca/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/154388-source/638808893760000000/1927265-is-wd-qtca-installation.pdf
Technical descriptionhttps://www.watts.ca/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/140452-source/638810623520000000/es-wd-qt-101-d.pdf

Related

Material mainCast iron
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategorySanitary - Bathroom Accessories
UNSPSC namePlumbing fixtures
UNSPSC code3018
Uniclass 2015 CodePr_20_85_09_96
Uniclass 2015 DescriptionWall-hung WC support brackets
CSI MasterFormat 2014 Code22 30 00
CSI MasterFormat 2014 TitlePlumbing Equipment
OmniClass Number23-31 00 00
OmniClass TitlePlumbing Specific Products and Equipment
CSI UniFormat II CodeD20
CSI UniFormat II TitlePLUMBING

Region availability

North America
Canada
United States
