Industry Standard Single Vertical Adjustable Closet Carrier with Side Inlet(s) - ISCA-131-L/R/2

Industry Standard Single Vertical Adjustable Closet Carrier with Side Inlet(s) - ISCA-131-L/R/2

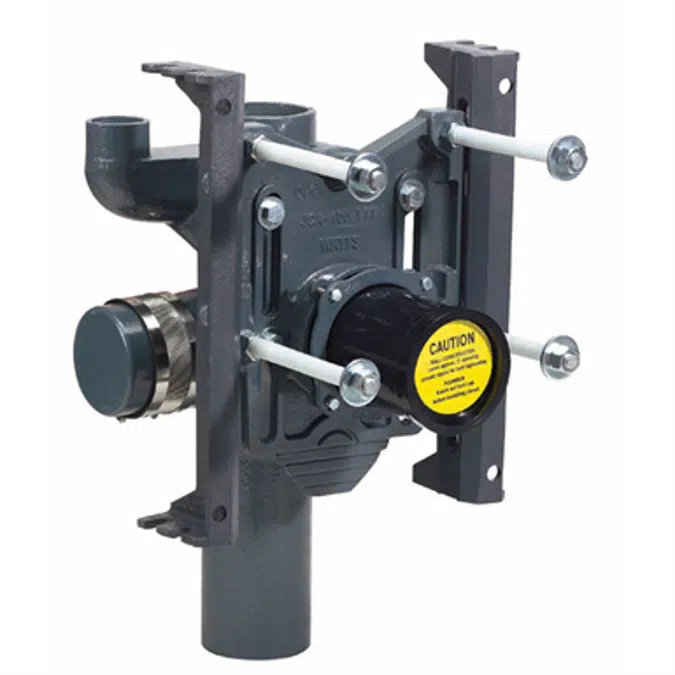

Watts Drainage ISCA-131-L/R/2 Industry Standard single vertical adjustable water closet carrier with epoxy coated cast iron fitting, 4"(102) no hub waste and 2"(51) no hub vent connections, 4"(102) no hub side inlet(s), epoxy coated cast iron patented compression seal faceplate assembly, epoxy coated cast iron foot supports reversible inlet cap, adjustable for standard and wheelchair height, adjustable ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts. Carrier complies with requirements of ASME A112.6.1M up to a 300 lb. (136 kg.) static load.

Specification

Keywords: da29-00003, da29-00003a, da29-00003a-b, da29-00003b, da29-00003g, da2900003a, da61-00159, da61-00159a, da61-00159a-b, pressure reducing valve, tada29-00003a, tada29-00003b, watts, plumbing, drains, drainage, components
Body Material: Epoxy Coated Cast Iron, Steel
Connection Size: 4" outlet, 2" vent
Connection Type: No Hub
Industry Standards: ASME A112.6.1M

Technical specification

Unique ref.1329
Product familyDrainage Products
Product groupSanitary Disposal Components
TypeObject (single object)
Date of publishing2018-01-17
Edition number1

Links

Product urlhttp://www.watts.com/pages/_products_details.asp?pid=1329
Installation instructionshttp://media.wattswater.com/8186409.pdf
Product certificationhttp://www.watts.com/pages/_products_details.asp?pid=1329#approvals
Technical descriptionhttp://media.wattswater.com/ES-WD-ISCA-131-L_R_2-USA.pdf

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategorySanitary - Bathroom Accessories
UNSPSC namePlumbing fixtures
UNSPSC code3018
Uniclass 2015 CodePr_20_85_09_96
Uniclass 2015 DescriptionWall-hung WC support brackets
CSI MasterFormat 2014 Code22 30 00
CSI MasterFormat 2014 TitlePlumbing Equipment
OmniClass Number23-31 00 00
OmniClass TitlePlumbing Specific Products and Equipment
CSI UniFormat II CodeD20
CSI UniFormat II TitlePLUMBING

Region availability

North America
Canada
United States
