Top-mounted awning for new buildings NA-MA with easyZIP guidance

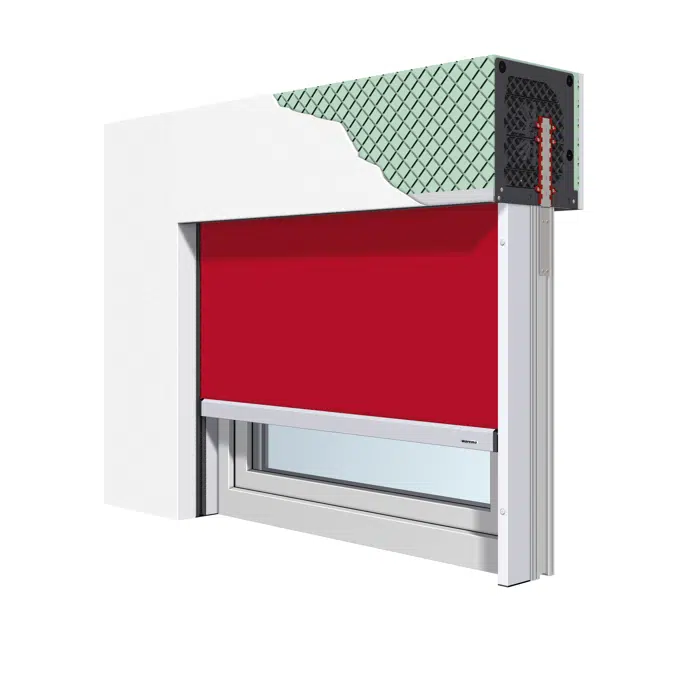

Top-mounted awnings for new buildings with easyZIP guidance are a textile, external sun shading system with awning fabric that is wound and unwound in a shaft and reliably guided laterally in an easyZIP rail. The foam-filled box in masonry thickness is located at the top on the window frame and inserted into the wall opening together with the window. Top-mounted awnings are ideal for new building projects and core renovations.

Unobtrusive

Flowing transitions: The new building top-mounted box is embedded in plaster on the outside and inside to blend unobtrusively into the facade structure.

Economical

A single source: The top-mounted system is attached to the window and installed together with the window in just one step.

Cleverly combined

The guide rail with bearing console and awning fabric is swivelled into the box opening and fixed to the window frame.

Discreet

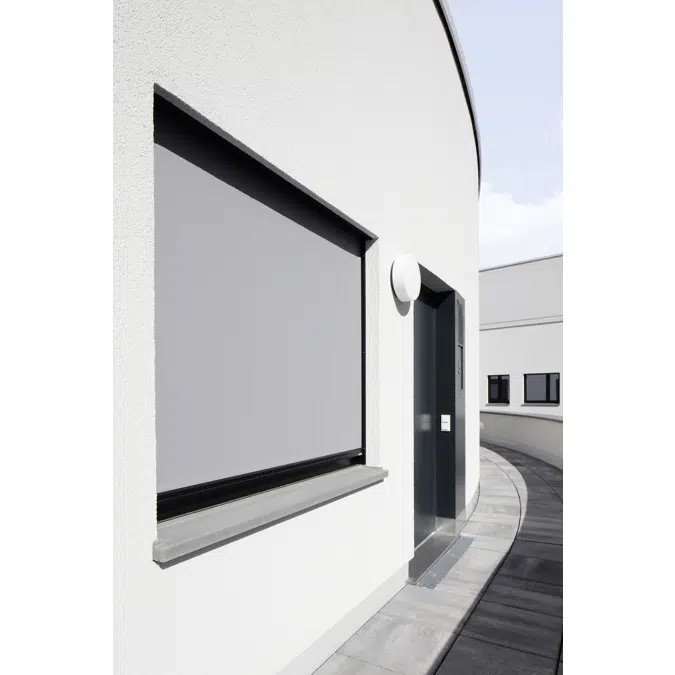

Modern, contemporary look: Homogeneous and flush areas when lowered. The narrow guide rails can be fully plastered.

Reliable

easyZIP principle: The awning fabric is safely guided in the guide rail – for maximum wind stability of up to 150 km/h (depending on the product design and installation situation) and optimum dim-out.

WAREMA offers you a rigid model on BIMobject. Discover our configurable models at mywarema.com/home, which can be perfectly adjusted to your individual needs.

Specification

Building limits:
Order width mx 3000 mm
Order height mx 3100 mm
Keyfacts:
- Wind-stable easyZIP guidance
- Box for masonry
- Inspection access outside, shaft depth 80 mm
