Awning window system FSM with drop arm

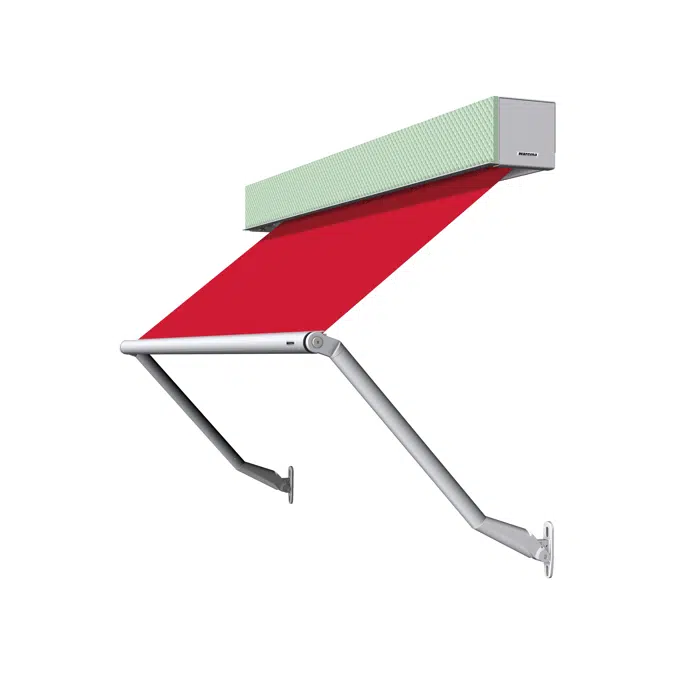

Awning window systems with drop arm are a textile, external sun shading system with awning fabric that is extended and tilted by the lateral drop arms and end rail. The awning fabric is already premounted in an aluminium cover in a folded design. Optimised for integration into exterior insulation and finish systems, this solution can also be located visibly in front of the window or facade.

Sophisticated

Effective and stylish building shading: Awning window systems are a weather-proof, external sun shading system with awning fabric that is extended and tilted by the lateral drop arms and end rail.

Protected, transparent

Sun shading system and uninterrupted view out: Tilted guide rails offer protection from direct solar radiation, prying eyes and glare control. And you still get the view out.

Full of character

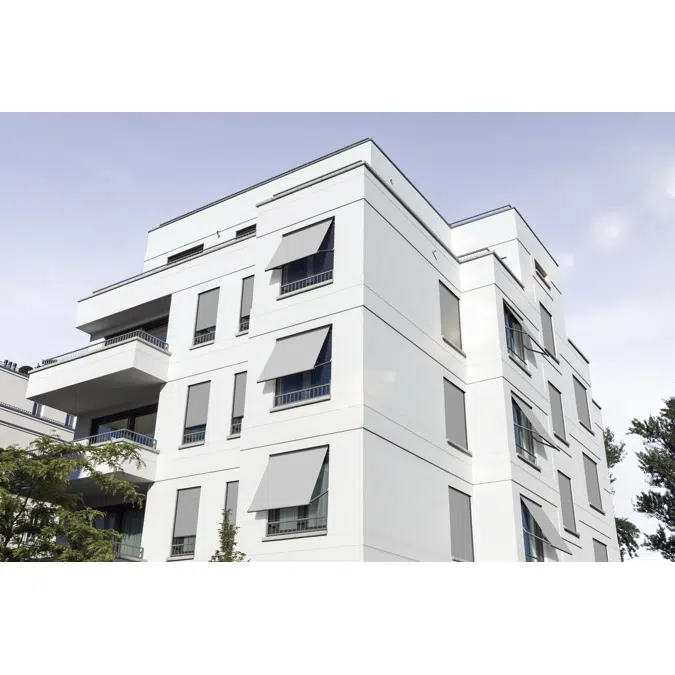

The tilted awning fabric lends facades a lively, light character. A combination with vertical window awnings creates a unique, attractive appearance.

Optimally adaptable

Perfectly matched: Individual cover panel folds can be integrated into any on-site situation.

Widely applicable

Flexible: The high-quality sun shading system is used inside the exterior insulation and finish system, but can also be integrated into existing shafts or visibly attached to the reveal.

WAREMA offers you a rigid model on BIMobject. Discover our configurable models at mywarema.com/home, which can be perfectly adjusted to your individual needs.
