Front-mounted awning with cable guidance

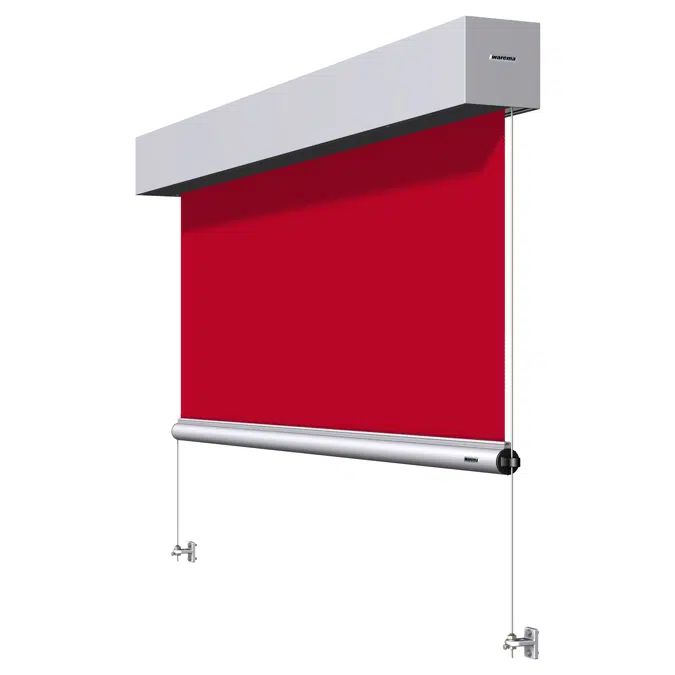

Cable-guided, front-mounted awnings are a textile, external sun shading system with awning fabric that is wound and unwound on a shaft. The lateral guidance uses slender tension cables in which the awning fabric is guided with the end rail. The awning fabric is housed in an extruded aluminium box located in front of the window

Compact

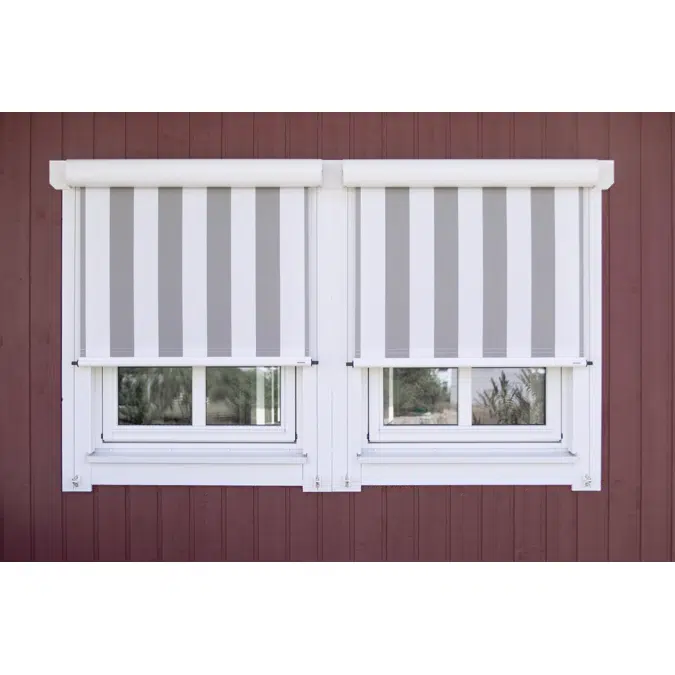

Wide-area shading on a broad front: With the robust, compact box made of extruded aluminium, the awning shades window fronts up to a width of three metres.

Broad range of variants

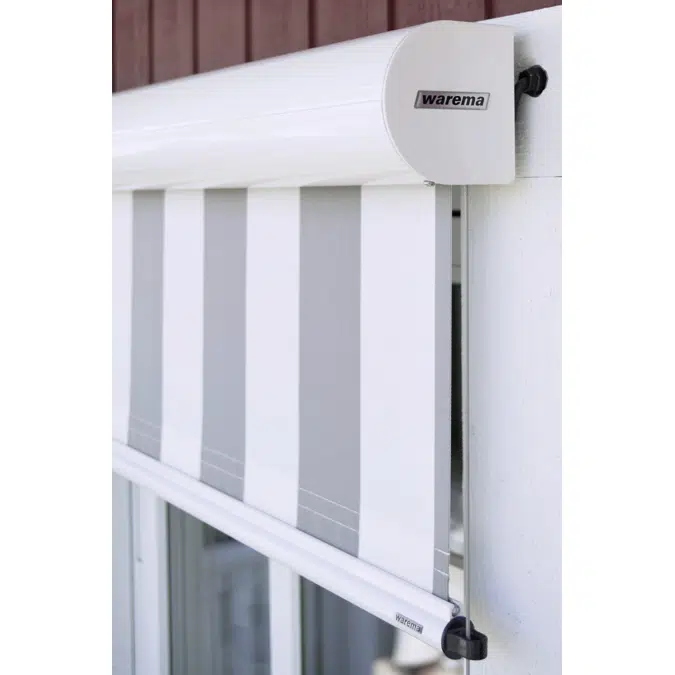

Perfect sun shading system for building facades: The box is available as a visible rectangular, half-round or round design and can be integrated into almost any facade.

Space-saving

The cable guidance saves space and can be integrated into almost any facade: The slender, lateral tension cables reliably guide the awning fabric over the end rail.

Quiet

The tension spring moderates short-term wind loads on the awning fabric and cable and reduces any noise development.

Well fixed

The box is installed using brackets. The cable guidance is fixed using a tension cable bracket.

WAREMA offers you a rigid model on BIMobject. Discover our configurable models at mywarema.com/home, which can be perfectly adjusted to your individual needs.
