External venetian blind window system FSR with rail guidance

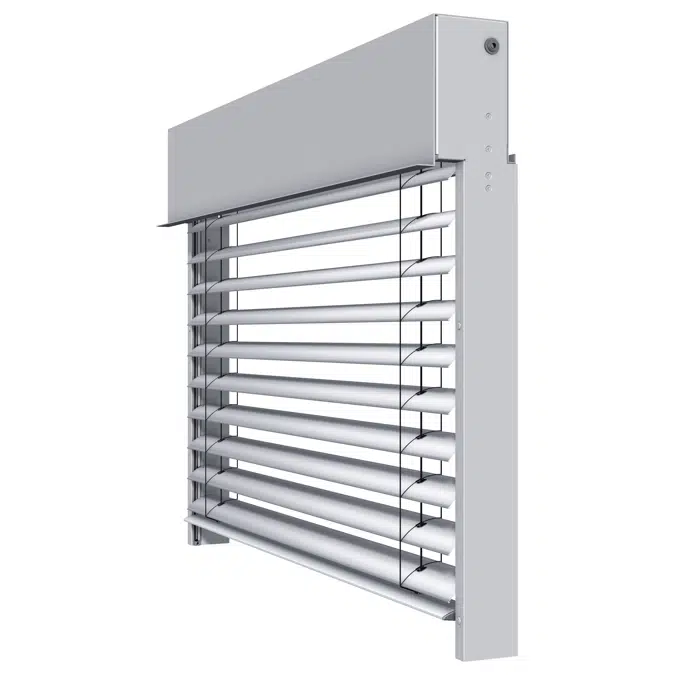

Rail-guided external venetian blind window systems are an external sun shading system consisting of connected horizontal slats – providing thermal protection, glare control and visual privacy with an adjustable view out. The slat stack is premounted in a flat aluminium cover panel in a folded design. Optimised for integration into exterior insulation and finish systems, this solution can also be located visibly in front of the window or facade.

Seamless

Low installation depth: The aluminium cover panel is matched to the dimensions of the slat and slat stack height. The slat stack is housed completely in the cover panel – even when the height is greater. The plug-in connector disappears into the cover panel.

Classic

Securely guided: The rail guidance is the classic among the guidance versions. The reliable lateral guidance provides great stability in windy conditions, good noise reduction, and a low-wear movement of the slats across the guide pins.

Optimally adaptable

Perfectly matched: Individual cover panel folds can be integrated into any on-site situation.

Protected from insects

Enhancement of functions from the factory: The optional insect screen offers effective protection against insects when your windows and doors are open.

Pre-assembled

High degree of premounting: The sophisticated design, with a premounted slat stack, reduces the installation time. The guide rails are used for fixing in the structure.

WAREMA offers you a rigid model on BIMobject. Discover our configurable models at mywarema.com/home, which can be perfectly adjusted to your individual needs.

Specification

Building limits:
Order width mx 4000 mm
Order height mx 4000 mm
Keyfacts:
- Simple integration
- High wind stability
- Front sides of guide profiles can be entirely plastered
