Basic shaft awning with rail guidance

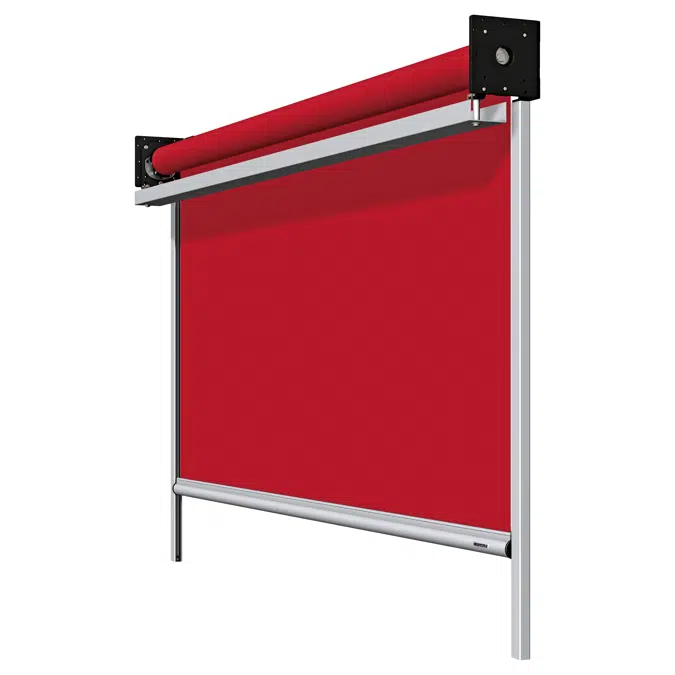

Rail-guided basic shaft awnings are a textile, external sun shading system with awning fabric that is wound and unwound on a shaft. The awning fabric is guided into the guide rails with the end rail (a gap remains between awning fabric and guidance). Installation is done using the fabric shaft consoles in the on-site shaft or an on-site cover panel.

Accentuating

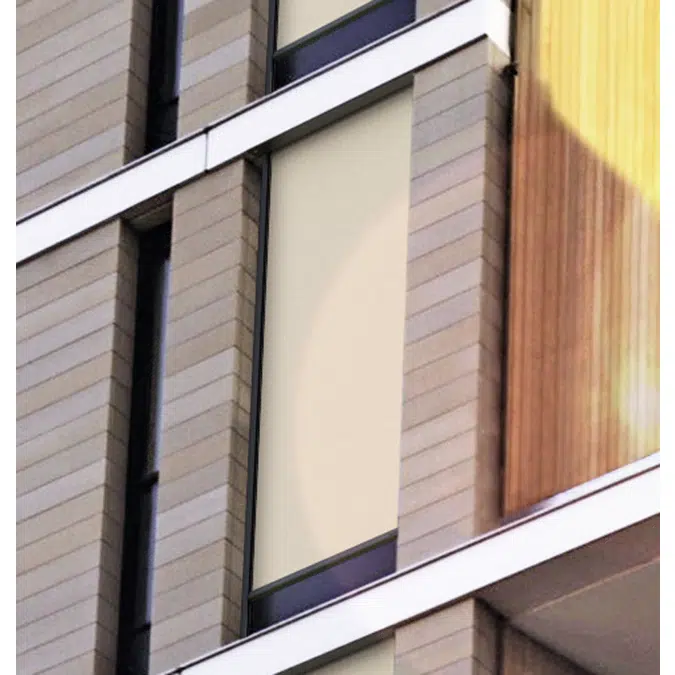

Effective and stylish building shading: Basic shaft awnings are a weather-proof, external sun shading system with awning fabric that is wound and unwound on a shaft and laterally guided.

Classic

Reliably guided: The tried and proven lateral guidance with guide rails ensure high stability and reliable running in wind.

Integrable

Get the best from the on-site conditions: Shaft systems are suitable for installation in on-site shafts or lintel boxes.

Invisible

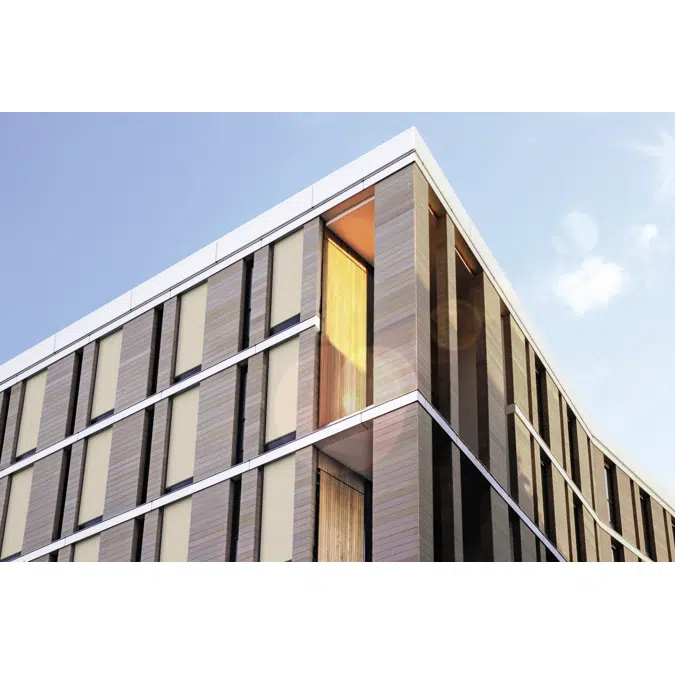

Unobtrusively integrated into the building structure: When raised, the sun shading system disappears into the shaft.

Solid

Reliable system: Basic shaft awnings are fixed in the on-site shaft using the fabric shaft consoles.

WAREMA offers you a rigid model on BIMobject. Discover our configurable models at mywarema.com/home, which can be perfectly adjusted to your individual needs.

Specification

Building limits:
Order width mx 3500 mm
Order height mx 4000 mm
Keyfacts:
- Rail-guided external venetian blinds
- Without box
- Fixation via consoles
