Basic shaft awning with cable guidance

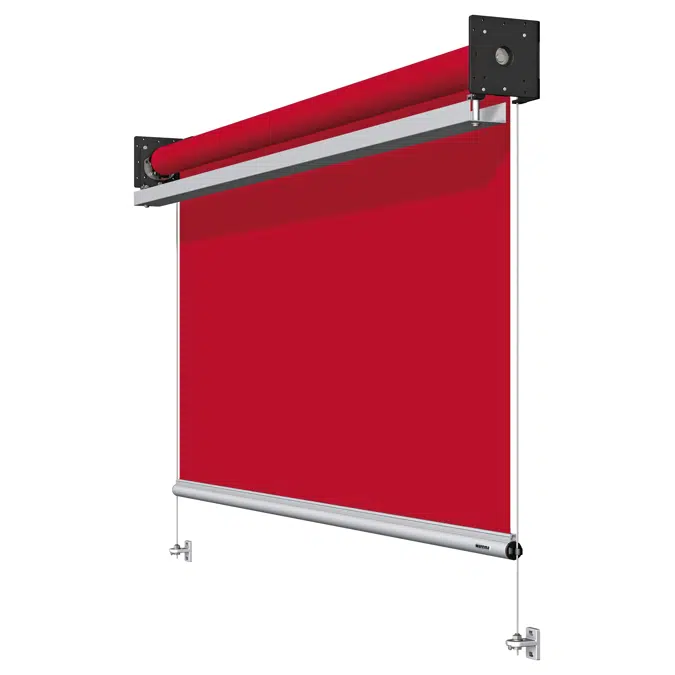

Cable-guided basic shaft awnings are a textile, external sun shading system with awning fabric that is wound and unwound on a shaft. The lateral guidance uses slender tension cables in which the awning fabric is guided with the end rail. Installation is done using the fabric shaft consoles in the on-site shaft or an on-site cover panel.

Accentuating

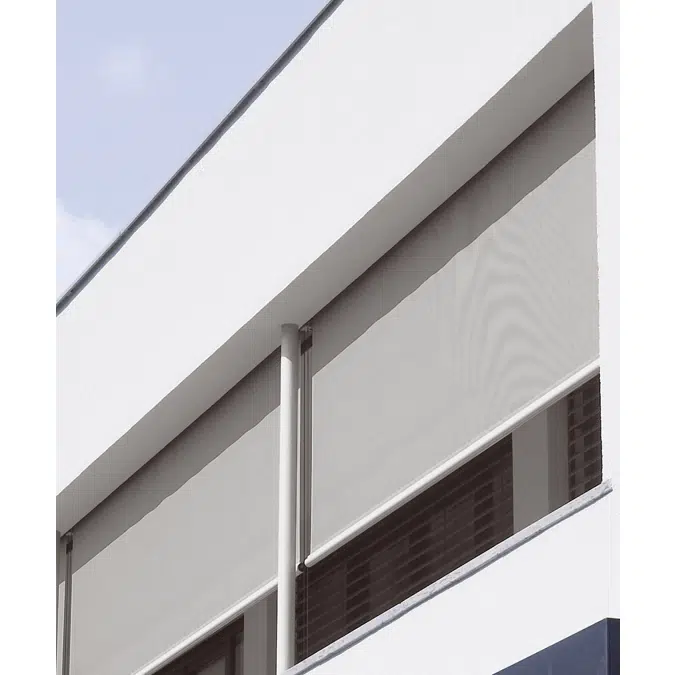

Effective and stylish building shading: Basic shaft awnings are a weather-proof, external sun shading system with awning fabric that is wound and unwound on a shaft and laterally guided.

Integrable

Get the best from the on-site conditions: Shaft systems are suitable for installation in on-site shafts or lintel boxes.

Space-saving

The cable guidance saves space and can be integrated into almost any facade: The slender, lateral tension cables reliably guide the awning fabric over the end rail.

Quiet

The tension spring moderates short-term wind load on the awning fabric and tension cable and reduces any noise development.

Solid

Reliable system: Basic shaft awnings are fixed in the on-site shaft using the fabric shaft consoles.

WAREMA offers you a rigid model on BIMobject. Discover our configurable models at mywarema.com/home, which can be perfectly adjusted to your individual needs.
