Two Tilt & Turn Window with corner coupling - SOFTLINE 82 MD

Two Tilt & Turn Window with corner coupling - SOFTLINE 82 MD

SOFTLINE 82 MD is a high‑performance PVC‑U window system with an 82 mm installation depth and a three‑level MD sealing system. The advanced multi‑chamber geometry and VEKA Class A wall thicknesses ensure excellent thermal insulation, high stability and long‑term durability. With support for triple glazing and large element sizes, SOFTLINE 82 MD is ideal for energy‑efficient new builds and demanding renovation projects.

Specification

Product:

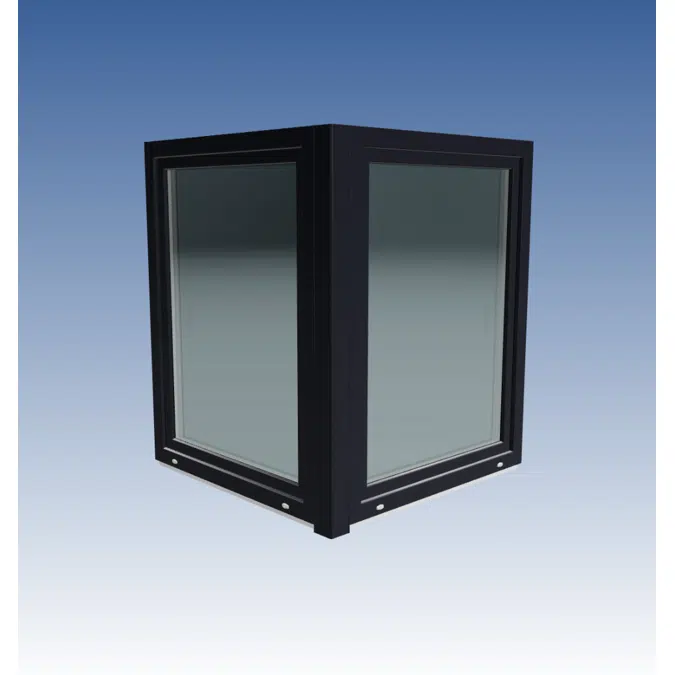

Corner window – Two Tilt & Turn windows with corner coupling, SOFTLINE 82 MD system
Finish:
Outside anthracite grey fine structure, inside white
Profile:

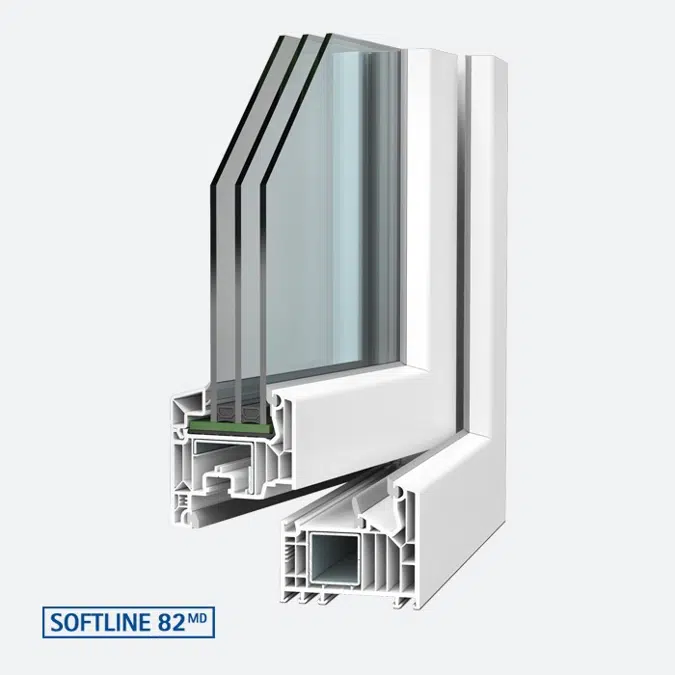

VEKA Class A PVC‑U profile, 82 mm installation depth, multi‑chamber design for high stability and durability
Glazing:
Up to 52–54 mm, suitable for triple glazing and functional glass (thermal insulation, sound insulation, safety glazing)
Features:
- Corner window configuration with two Tilt & Turn sashes connected via structural corner coupling
- MD sealing system with three gasket levels for high airtightness and reliable weather protection
- Excellent thermal performance with Uf‑values approx. 1.0 W/(m²K), depending on configuration
- High acoustic comfort, with sound insulation up to approx. 47 dB depending on glazing
- High structural stability for large glass surfaces and corner solutions
- Slim sightlines for maximum daylight and a clear architectural appearance
Application:
Suitable for residential and commercial buildings, ideal for modern architecture with open corner designs, in new construction and renovation projects requiring high energy efficiency and design flexibility.

Technical specification

Unique ref.two-tilt-and-turn-window-with-corner-coupling-softline-82-md
Product familyVEKA Softline 82 MD
Product groupTilt and Turn Windows
TypeObject (single object)
Date of publishing2026-03-13
Edition number1

Links

Product urlhttps://www.veka.de/en/homepage/products/window-systems/softline82md.html
Technical descriptionhttps://www.veka.de/en/homepage/company/partner-concept/partnerregistration.html

Material mainPVC
Material secondaryGlass
Designed inGermany

Classification

BIMobject CategoryWindows - Tilt and Turn Windows
IFC classificationWindow
ETIM CodeEC003536
ETIM NameWindow (complete with frame)
Uniclass 2015 CodePr_30_59_98_92
Uniclass 2015 DescriptionUnplasticized polyvinyl chloride (PVC-U) window units
CSI MasterFormat 2014 Code08 50 00
CSI MasterFormat 2014 TitleWindows
OmniClass Number23-17 13 00
OmniClass TitleWindows
