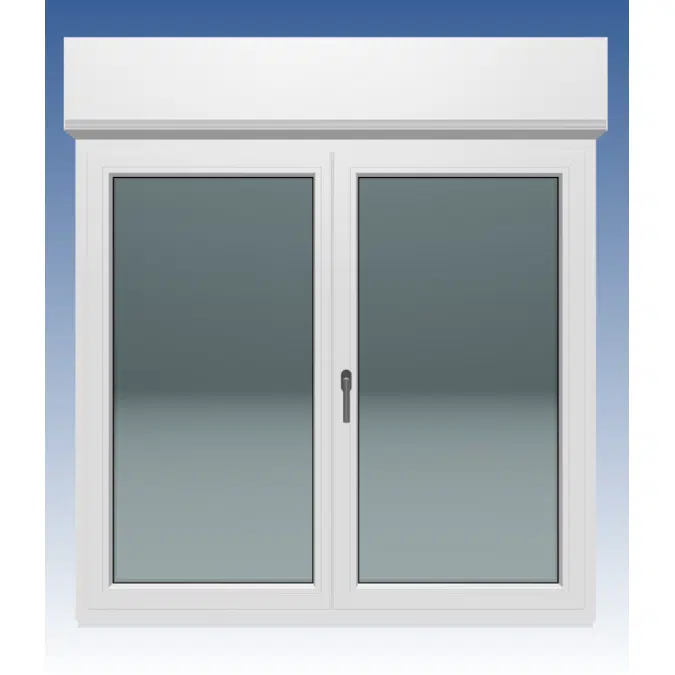

Two part moveable mullion window, turn/turn-tilt - SOFTLINE 82 MD, VEKAVARIANT EPS

Turn / Turn‑Tilt, SOFTLINE 82 MD with VEKAVARIANT EPS

Product:
Two‑part moveable mullion window (stulp window), turn / turn‑tilt, SOFTLINE 82 MD system with VEKAVARIANT EPS top‑mounted roller shutter box

Finish:
Outside anthracite grey fine structure, inside white

Profile:

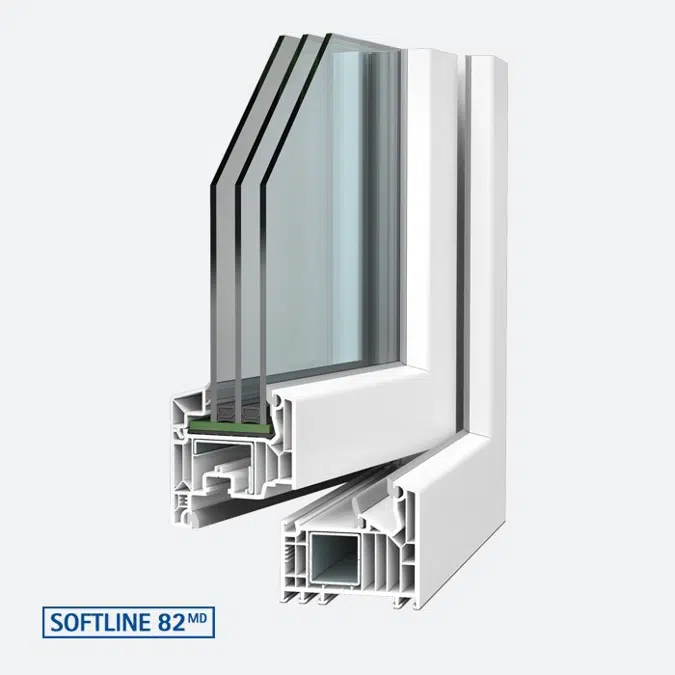

VEKA Class A PVC‑U profile, 82 mm installation depth, multi‑chamber design for high structural stability and durability

Glazing:
Up to 52–54 mm, suitable for triple glazing and functional glass (thermal insulation, sound insulation, safety glazing)

Window Features

• Two operable sashes with moveable mullion (stulp) for a wide, unobstructed opening
• Turn / Turn‑Tilt operation for flexible ventilation and user comfort
• MD sealing system with three gasket levels for high airtightness and weather resistance (air permeability class 4, driving rain tightness up to class 9A, depending on configuration) [fensterfabrik24.de]
• Excellent thermal performance with Uf‑values approx. 1.0 W/(m²K), or up to 0.94 W/(m²K) in thermally optimized versions
• High acoustic comfort with sound insulation up to approx. 47 dB, depending on glazing and element design

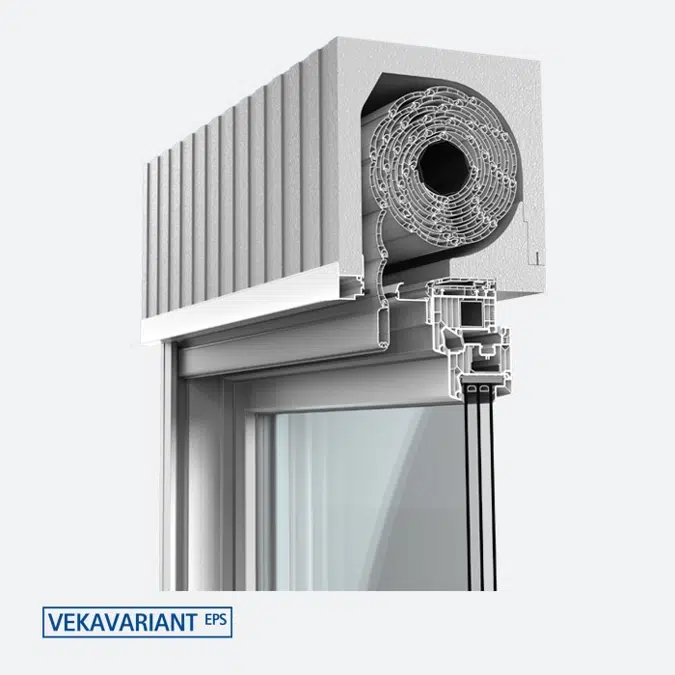

VEKAVARIANT EPS – Integrated Roller Shutter Box

• High‑performance EPS insulation box designed for top‑mounted installation on window elements
• Excellent thermal insulation with Usb‑values down to approx. 0.42 W/(m²K) (depending on box size and variant)
• Very good acoustic performance with rated sound reduction values up to Rw ≈ 48 dB for the roller shutter system (depending on configuration)
• Available with revision inside or outside, suitable for new construction and major renovations
• Compatible with all VEKA window systems, including SOFTLINE 82 MD, via established clip technology
• Optional integration of insect screen, ZIP/textile screen or raffstore systems
