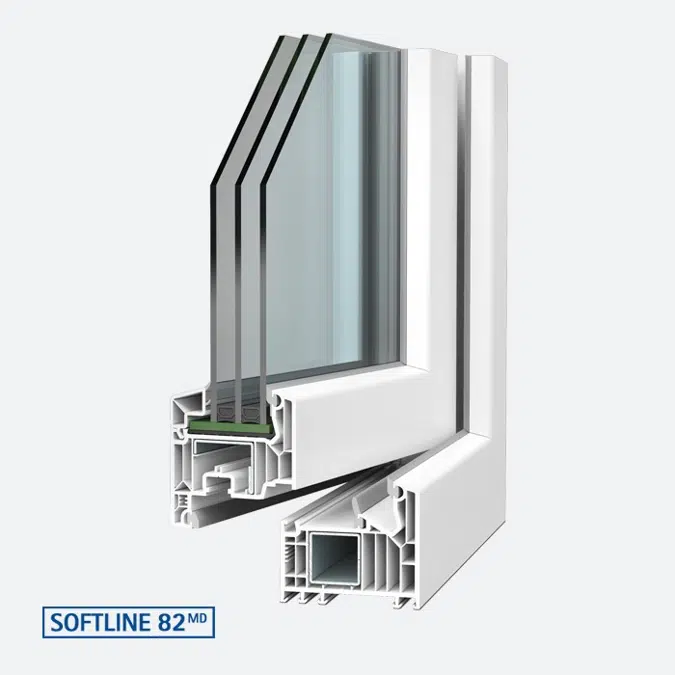

SOFTLINE 82 MD is a high‑performance PVC‑U window system with an 82 mm installation depth and a three‑level MD sealing system. The advanced multi‑chamber geometry and VEKA Class A wall thicknesses ensure excellent thermal insulation, high stability and long‑term durability. With support for triple glazing and large element sizes, SOFTLINE 82 MD is ideal for energy‑efficient new builds and demanding renovation projects.

VEKAVARIANT EPS Grupor is a top‑mounted roller shutter box with EPS insulation, designed for excellent thermal and acoustic performance in new construction and major renovation projects. The system is fully compatible with VEKA window systems via proven clip technology and allows the integration of roller shutters, insect screens, ZIP/textile screens or raffstores.

Specification

Product:

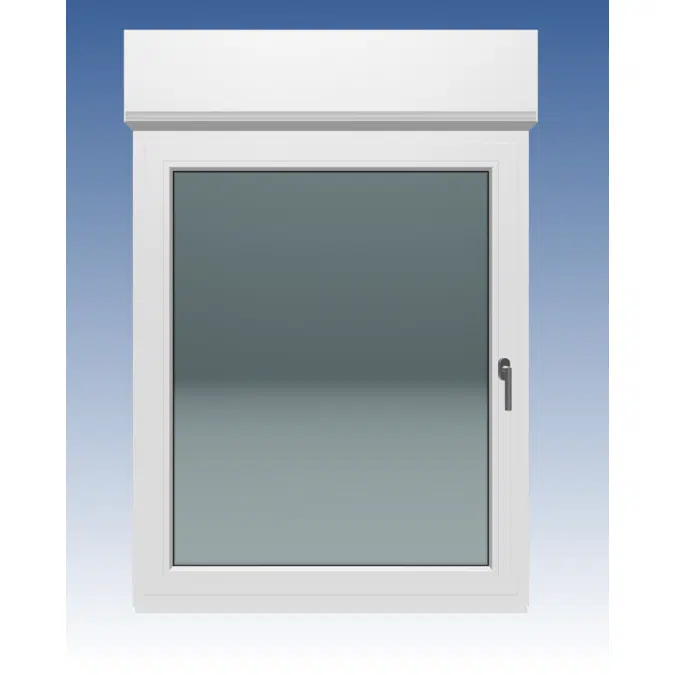

Tilt & Turn window with integrated roller shutter, SOFTLINE 82 MD system with VEKAVARIANT EPS Grupor
Finish:
Inside white, outside according to project requirements (foil or aluminium cover caps)
Profile:
VEKA Class A PVC‑U profile, 82 mm installation depth, multi‑chamber design for high stability, durability and energy efficiency
Glazing:
Up to 52–54 mm, suitable for triple glazing and functional glass (thermal insulation, sound insulation, safety glazing)
Window Features
- Tilt & Turn sash for flexible ventilation and easy cleaning
- MD sealing system with three gasket levels for high airtightness and weather resistance
- Excellent thermal performance with Uf‑values approx. 1.0 W/(m²K), depending on configuration
- High acoustic comfort, suitable for residential and commercial applications

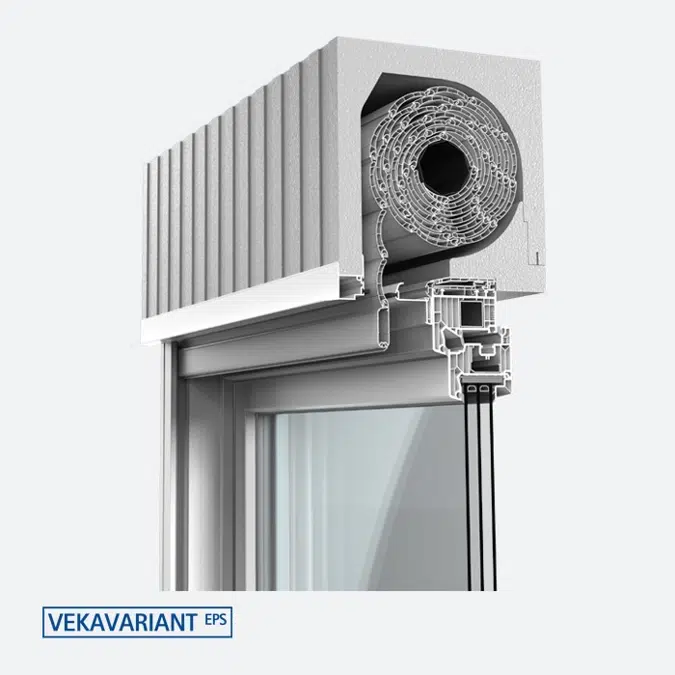

Roller Shutter Box – VEKAVARIANT EPS Grupor
- Top‑mounted roller shutter box with high‑performance EPS insulation for excellent thermal and acoustic properties
- Very good thermal performance with Usb‑values down to approx. 0.42 W/(m²K), depending on box size and variant
- Available with inside or outside revision, suitable for new buildings and major renovations
- Fully compatible with SOFTLINE 82 MD and other VEKA window systems via proven clip technology
- Optional integration of roller shutters, insect screens, ZIP/textile screens or raffstores

Technical specification

Unique ref.tilt-and-turn-window-with-roller-shutter-softline-82-md-vekavariant-eps-grupor
Product familyVEKA Softline 82 MD
Product groupTilt and Turn Windows
TypeObject (single object)
Date of publishing2026-03-13
Edition number1

Links

Product urlhttps://www.veka.de/en/homepage/products/window-systems/softline82md.html
Technical descriptionhttps://www.veka.de/en/homepage/company/partner-concept/partnerregistration.html

Material mainPVC
Material secondaryGlass
Designed inGermany

Classification

BIMobject CategoryWindows - Tilt and Turn Windows
IFC classificationWindow
ETIM CodeEC003536
ETIM NameWindow (complete with frame)
Uniclass 2015 CodePr_30_59_98_92
Uniclass 2015 DescriptionUnplasticized polyvinyl chloride (PVC-U) window units
CSI MasterFormat 2014 Code08 50 00
CSI MasterFormat 2014 TitleWindows
OmniClass Number23-17 13 00
OmniClass TitleWindows
