Tilt & Turn Window – Roller Shutter | VEKAVARIANT 2.0

VEKA

Tilt & Turn Window – Roller Shutter | VEKAVARIANT 2.0

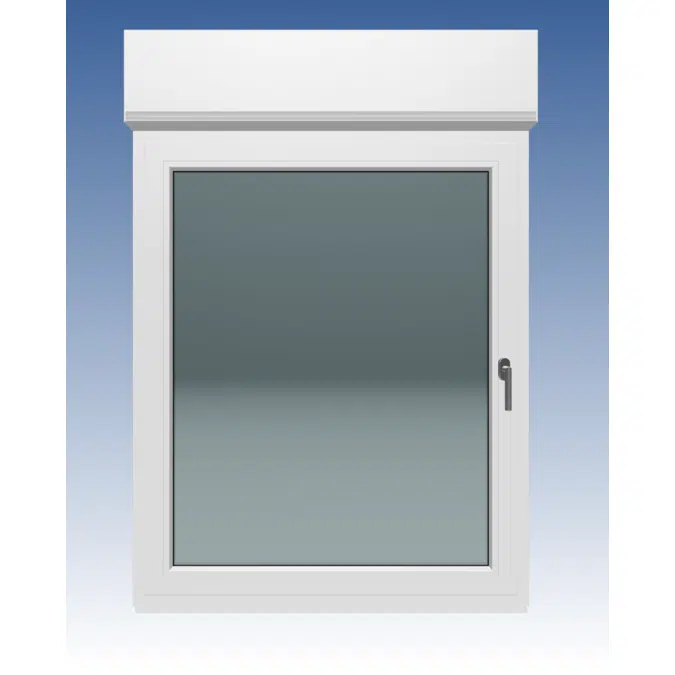

Tilt & Turn Window with roller shutter (SOFTLINE 76 AD & VEKAVARIANT 2.0)

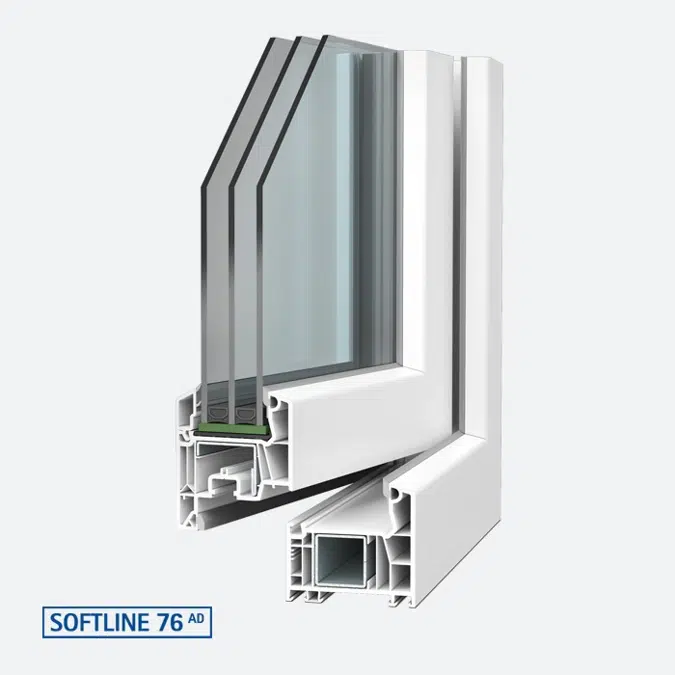

SOFTLINE 76 AD is a versatile PVC‑U window system with a 76 mm installation depth, offering an optimal balance between energy efficiency and cost effectiveness. The VEKA Class A profile quality with robust wall thicknesses ensures high stability and durability, while the AD sealing system with two gasket levels provides reliable protection against weather influences. Supporting glazing thicknesses of up to 48 mm, SOFTLINE 76 AD is suitable for modern triple glazing and functional glass, making it ideal for both new construction and renovation projects.

VEKAVARIANT is a top‑mounted roller shutter box system designed for efficient integration with VEKA window systems as well as windows from other manufacturers. The system uses proven clip technology for fast installation, offers good thermal and acoustic performance, and allows the integration of roller shutters, insect screens or ZIP/textile screens, making it suitable for a wide range of new build and renovation applications.

Specification

Product:
Tilt & Turn window with integrated roller shutter, SOFTLINE 76 AD system with VEKAVARIANT 2.0
Finish:
Inside white, outside according to project requirements (foil or aluminium cover caps)
Profile:
VEKA Class A PVC‑U profile, 76 mm installation depth, multi‑chamber design providing a balanced combination of energy efficiency, stability and cost effectiveness
Glazing:
Up to 48 mm, suitable for double or triple glazing as well as functional glass (sound insulation, burglary protection)
Window Features
- Tilt & Turn sash for controlled ventilation and easy cleaning
- AD sealing system with two gasket levels for reliable weather protection
- Thermal insulation with Uf‑value approx. 1.2 W/(m²K), depending on configuration
- Sound insulation up to approx. 47 dB and burglar resistance up to RC2 (depending on hardware and glazing)
Roller Shutter Box – VEKAVARIANT 2.0
- Top‑mounted roller shutter box system for efficient production and installation
- Available in three box sizes and suitable for various installation situations
- Good thermal performance with Usb‑values approx. 0.77 W/(m²K), depending on configuration [veka.de]
- Compatible with all VEKA window systems and many third‑party systems via proven clip technology [veka.de]
- Optional integration of roller shutters, insect screens or ZIP/textile screens
Application:
Suitable for residential and commercial buildings, ideal for new construction and renovation projects requiring integrated shading, reliable functionality and an economical window system solution.

Technical specification

Unique ref.tilt-and-turn-window-with-roller-shutter-softline-76-ad-and-vekavariant-20
Product familyVEKA Softline 76 AD
Product groupWindows
TypeObject (single object)
Date of publishing2026-03-13
Edition number1
