Tilt & Turn Window with fixed sublight and side part - SOFTLINE 82 MD

Tilt & Turn Window with fixed sublight and side part - SOFTLINE 82 MD

SOFTLINE 82 MD is a high‑performance PVC‑U window system with an 82 mm installation depth and a three‑level MD sealing system. The advanced multi‑chamber geometry and VEKA Class A wall thicknesses ensure excellent thermal insulation, high stability and long‑term durability. With support for triple glazing and large element sizes, SOFTLINE 82 MD is ideal for energy‑efficient new builds and demanding renovation projects.

Specification

Product:

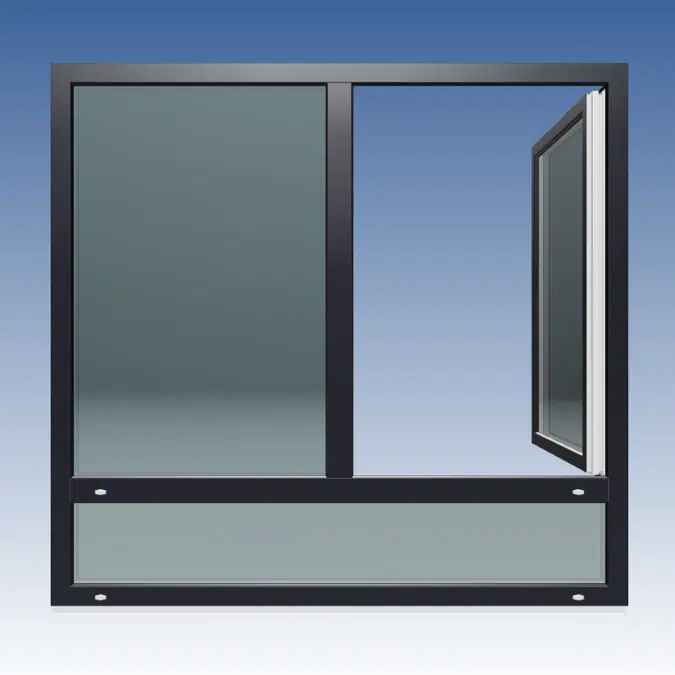

Tilt & Turn window with fixed sublight and fixed side part, SOFTLINE 82 MD system - Hotel window
Finish:
Outside anthracite grey fine structure, inside white
Profile:

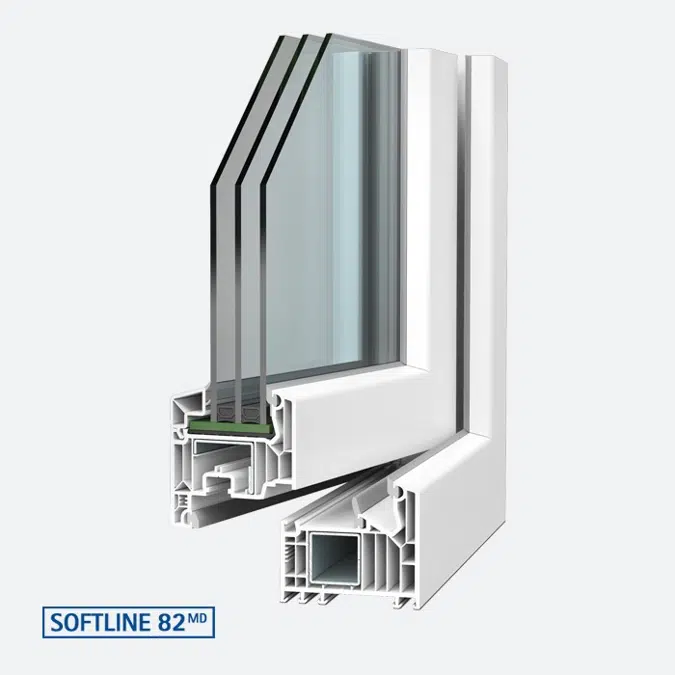

VEKA Class A PVC‑U profile, 82 mm installation depth, multi‑chamber design for high stability and durability
Glazing:
Up to 52 mm, suitable for triple glazing and functional glass (thermal insulation, sound insulation, safety)
Features:
- Tilt & Turn sash combined with fixed sublight and fixed side element for controlled ventilation and maximum daylight
- MD sealing system with three gasket levels for high airtightness and weather protection
- Excellent thermal performance with Uf‑values approx. 1.0 W/(m²K) (depending on configuration)
- Enhanced acoustic comfort, suitable for hotel use (sound insulation depending on glazing)
- High structural stability for medium to large window elements
- Fine‑structure anthracite exterior surface for a modern, durable façade appearance
Application:
Designed for hotel and hospitality buildings, suitable for new construction and renovation projects with high demands on comfort, energy efficiency and appearance.

Technical specification

Unique ref.tilt-and-turn-window-with-fixed-sublight-and-side-part-softline-82-md
Product familyVEKA Softline 82 MD
Product groupTilt and Turn Windows
TypeObject (single object)
Date of publishing2026-03-13
Edition number1

Links

Product urlhttps://www.veka.de/en/homepage/products/window-systems/softline82md.html
Technical descriptionhttps://www.veka.de/en/homepage/company/partner-concept/partnerregistration.html

Material mainPVC
Material secondaryGlass

Classification

BIMobject CategoryWindows - Tilt and Turn Windows
IFC classificationWindow
ETIM CodeEC003536
ETIM NameWindow (complete with frame)
Uniclass 2015 CodePr_30_59_98_92
Uniclass 2015 DescriptionUnplasticized polyvinyl chloride (PVC-U) window units
CSI MasterFormat 2014 Code08 50 00
CSI MasterFormat 2014 TitleWindows
OmniClass Number23-17 13 00
OmniClass TitleWindows
