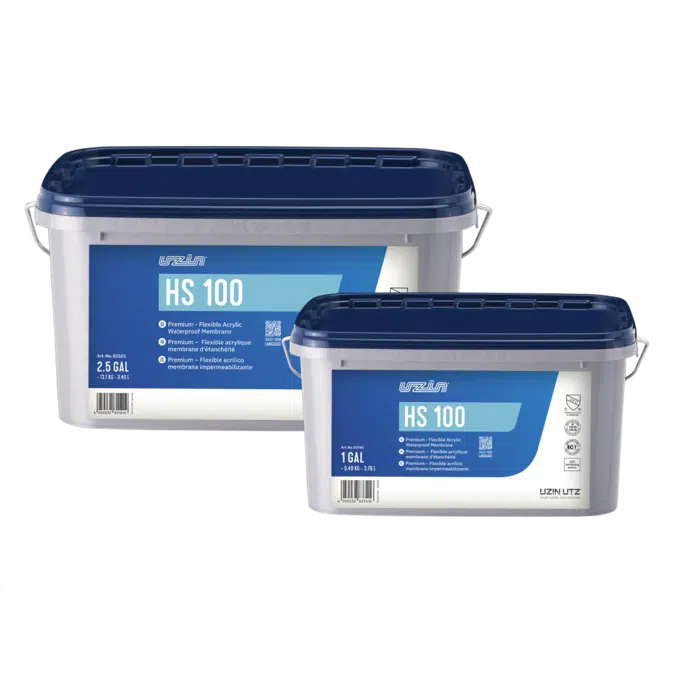

BIM objects - Free download! Tile Waterproofing Membrane - HS100

Applications

Over properly prepared concrete, masonry, cement mortar beds and leveling coats
Over tile backerboards (with approved seam tape)
Over gypsum wallboard (interior, dry conditions)
Over industry standard plywood (interior, dry conditions)
Over radiant heated substrates
Over UZIN brand surface preparation products where applicable
With UZIN WP Accessories for a complete waterproofing system. See UZIN WP Accessories PDS for items and additional installation detail
For floor, wall and ceiling applications in residential, commercial and institutional conditions
Suitable applications include showers, tub surrounds, bathrooms, laundry, food service, exterior walls and building facades, shower pans, staircases, staircase landings and wet rooms
For use in steam rooms and steam showers providing there is an intact vapor barrier behind the backerboard. If unsure, use UZIN WP Hydrostop
For contact with plumbing rated PVC, copper, brass and stainless steel pipe penetrations, lightly abrade the surface
For overlapping contact with Schluter® Kerdi series products such as Kerdi Drain, Kerdi Curb, Kerdi Board and other Schluter® components
For immersion applications such as pools, spas and fountains, use UZIN HS 200
For preventing in-plane floor cracks from transmitting through tile or stone
For filling gaps and changes in plane to floor and wall joints up to 1/8" (3 mm)
For use in conjunction with breathable fiber reinforcing meshes

Properties

Smooth texture and easy handling - Fast, seamless application with roller, trowel or brush
Ready-mixed one-component - No mixing, use only what is necessary
UPC Listed for Shower pan liner - Plumbing code performance validation
No mesh required to meet ANSI A118.10 - Labor and cost savings, Surface uniformity
Fast curing - Same day tile installation
Rectangle pails - No paint tray required, just dip and go
Light green color - Easy to see reference marks
Non-sag, filling properties - Use as a gap filler up to 1/8” (3mm)
