2-Way Zone Valve, 3/8 IN Flare - 700F

2-Way Zone Valve, 3/8 IN Flare - 700F

2-Way Zone Valve, 3/8 IN Flare - 700F

2-Way Zone Valve, 3/8 IN Flare - 700F

2-Way Zone Valve, 3/8 IN Flare - 700F

2-Way Zone Valve, 3/8 IN Flare - 700F

2-Way Zone Valve, 3/8 IN Flare - 700F

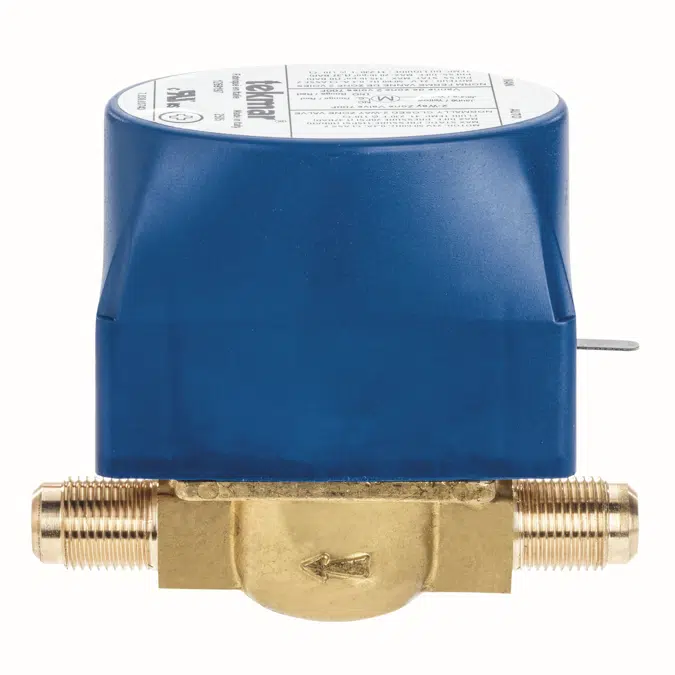

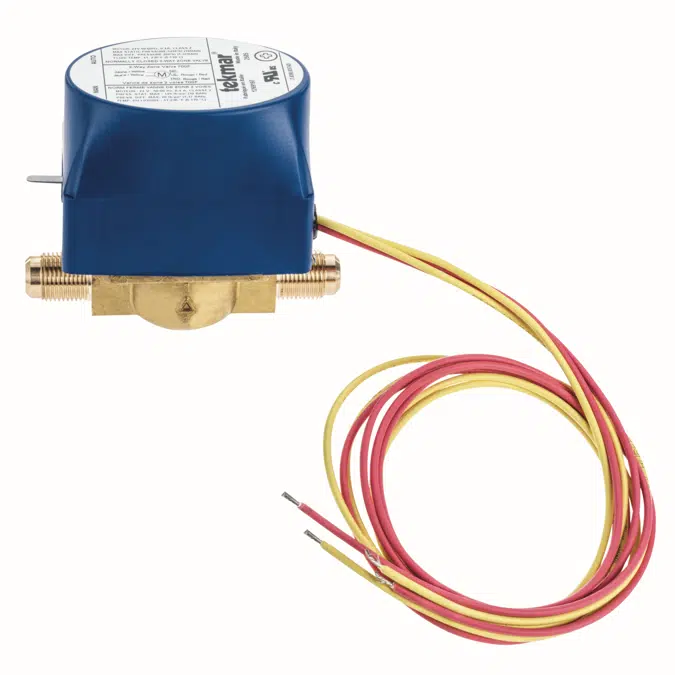

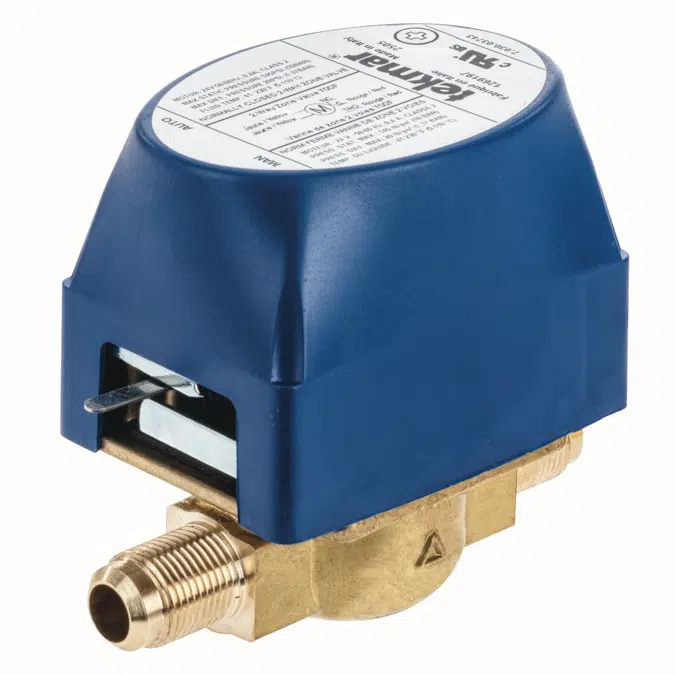

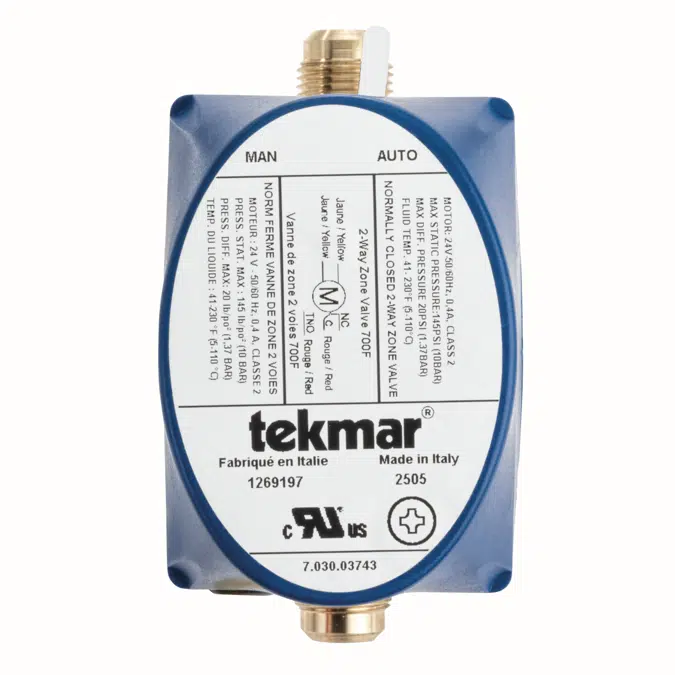

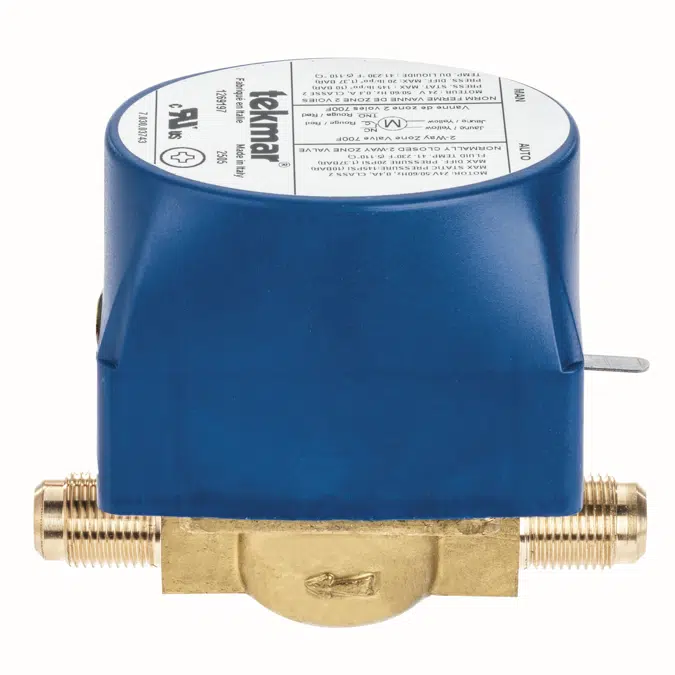

This tekmar 2-way zone valve, model 700F, regulates flow into designated heating and cooling zones within a hydronic system. The valves are normally closed and are mechanically actuated, with a connection to an end switch.

Features

Mechanically actuated
Normally open, spring return
End switch
Flare fitting

Specification

Specifications
Connection Size	1/2 IN
Connection Type	Flare Joint
Dimensions	4 IN L x 2 5/8 IN W x 4 IN H (101 x 67 x 101 mm)
Markets	Commercial Buildings with BAS, Multifamily Homes, Single-Family Homes, Small Commercial Buildings
Maximum Operating Pressure	145 psi (10 bar)
Operating Temperature Range	41 to 140 degrees F (5 to 60 degrees C)
Power Consumption	8 VA
Rated Supply Voltage	24 V (ac)
Thread Type	Does Not Apply To Product
Valve CV	4.00

Technical specification

Unique ref.2-Way-Zone-Valve-3-8-IN-Flare-700F
Product familyControls
Product groupControl Accessories
TypeObject (single object)
Date of publishing2026-02-06
Edition number1

Links

Product urlhttps://www.watts.com/products/hvac-hot-water-solutions/controls/control-accessories/700f
Installation instructionshttps://www.watts.com/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/666740-source/639050366370000000/iom-t-2zv-2546.pdf
Technical descriptionhttps://www.watts.com/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/667441-source/639051276730000000/es-t-2zv-2549.pdf

Classification

BIMobject CategoryHVAC - Control Panels
OmniClass Number23-27 11 15
OmniClass TitleFlow Measuring Instrument And Controls
