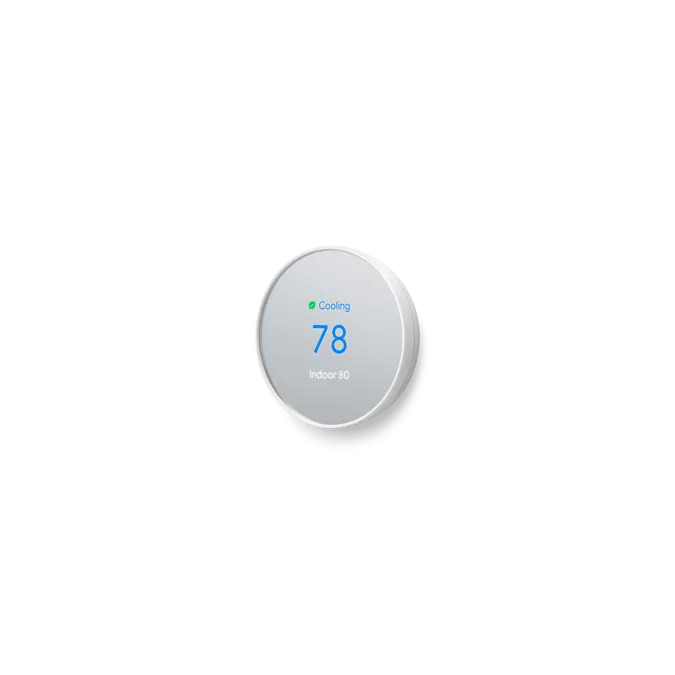

Nest Thermostat

Dimensions & Weight

• Diameter: 3.3 in (84 mm)
• Depth: 1.07 in (27.25 mm)
• Weight: 4.9 oz (139 g)

Colors

• Snow
• Sand
• Fog
• Charcoal


Display

• 2.4-inch QVGA IPS liquid crystal display (240 x 320 pixels) with digital brightness enhancement film and mirrored glass lens

Sensors

• Motion
• Temperature
• Humidity
• Capacitive touch
• Ambient light

Power

Primary Power

• From HVAC system wires
• Voltage 20-30VAC
• Startup/Max current 4VA
• Standby current 2VA

Battery Backup

• 2 AAA 1.5V alkaline batteries

Power Consumption

• Less than 1 kWh/month

Connectivity

• Wi-Fi: 802.11b/g/n 2.4 GHz, 802.11a/n 5 GHz Wi-Fi
• Bluetooth Low Energy

Compatibility

• The Nest Thermostat works with most 24V heating and cooling systems, including furnaces, air conditioners, boilers, and heat pumps with either forced air or radiant delivery.
• It works with conventional systems that have one stage of heating and cooling and a second stage of either heating or cooling
• It works with heat pumps that have one stage of heating and cooling and either aux or emergency heat. And it works with HVAC fans
• The Nest Thermostat is designed to work if your home doesn’t have a common (“C”) wire. In some cases, particularly if you have a heating- or cooling-only system or use a zone controller, a C wire or other power-supply accessory may be necessary. See g.co/nest/cwire for details

Multi-zone Control

• Works with multi-zone systems (one thermostat required per zone)

Matter Certified

• Control the Nest Thermostat with Google Home and other smart home platforms
• Compatible with Google Assistant and all Matter-certified voice assistants


Voice Control

• Works with Hey Google and Alexa
• Voice control requires a compatible device

Accessories (sold separately)

• Trim plate - Covers cosmetic wall imperfections that may be left behind when an old thermostat is removed (optional).
• Steel plate - Required if your thermostat is installed on an electrical box

Warranty

• 1-year standard warranty

Sustainability

• Post-consumer recycled materials - All plastic components are made with 49% post-consumer recycled materials.
• Learn more about Nest’s sustainability initiatives at g.co/store/sustainability

Languages

• English, French, Spanish

What's in the Box

• Nest thermostat display
• Nest thermostat base
• Mounting screws and wire labels
• Installation guide


Requirements

• Compatible HVAC system
• Wi-Fi internet connection
• Phone or tablet (iOS or Android)
• Google Home app

Certifications

• ENERGY STAR® certified thermostat.
• The Nest Thermostat's energy-saving features earned an ENERGY STAR® from the EPA
