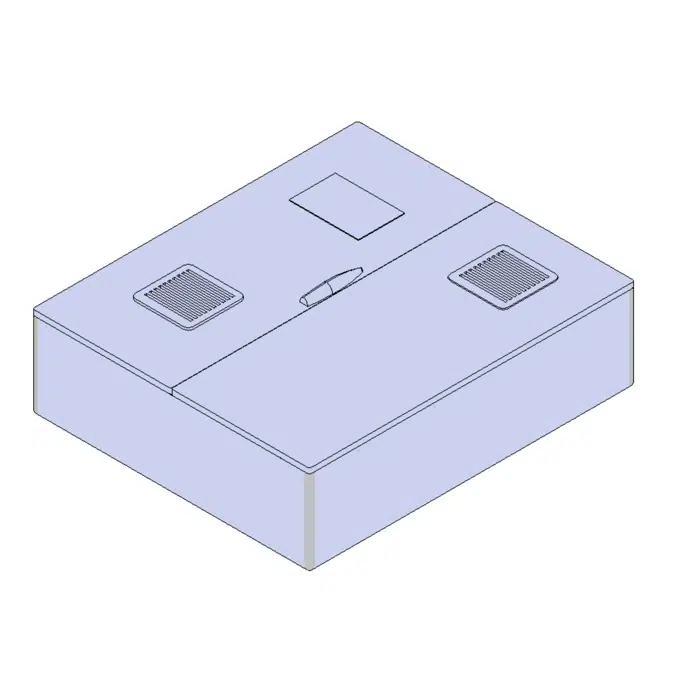

3kW-11kW Variable Speed Fan Control Panel

3kW-11kW Variable Speed Fan Control Panel

The 3kW - 11kW Variable Speed Fan Control Panel is a PLC-driven smoke ventilation control solution operating at 400 V, 3-phase, 50 Hz, providing precise management of duty and standby fans for complex, multi-zone applications. Integrated Variable Frequency Drives (VFDs) allow multiple programmable fan speeds, while both hard-wired and networked activation options support flexible system design. External firefighter key switch inputs, reversible airflow capability, and compatibility with twin- or triple-shaft push/pull systems further enhance operational performance.

The panel incorporates extensive monitoring features, including support for up to 50 pressure sensors, environmental fan control, and a range of damper actuation options. System status is indicated via front-panel LEDs, with Volt-Free Contacts (VFCs) for BMS integration, optional Cloudlink remote monitoring, and compatibility with the SHEVTEC Repeater Panel. An optional BS 8519 ATS-compliant configuration is available, and the panel is designed and tested to BS EN 60204-1:2018, BS ISO 21927-9:2012, and EN 12101-3.

This BIM object includes structured technical data, connection information, and model parameters to support coordinated design, installation, commissioning, and lifecycle management in digital construction environments.

Specification

Power
• Class 1
• Primary and secondary 400 V 3Ph 50 Hz supplies into internally fitted Automatic
Transfer Switch (ATS) unit or from external ATS unit
• Isolating switch in panel face for service requirements
• Current draw between 1 to 29.1 A depending on either quiescent state or system activated state and associated fan Full Load Curren (FLC): 3 kW - 11 kW: 4.7 to 21.3 A FLC
• PLC backup battery 2 x 12 V 12.0 Ah sealed lead-acid batteries (batteries not included).
Environment
• IP rating 55 (Internal and External) fully weatherproofed
• Internal or external panel fitting option
• Humidity 10 to 90% non-condensing
• Operating temperature -5 to 40°C (internally climate controlled via cooling fan and heater)
• Can be installed up to 1,000 metres above sea level without de-rating
• Fan can be installed up to 50 metres away from the panel
• Standard Finish:
Panel: Powder Coated RAL 7035
Canopy: Powder Coated RAL 5020
Miscellaneous
Note: The below are all dependent on a variety of factors, including, but not limited to, system specification, inverter size, ATS requirements, additional NV fan control and panel location.
• Weight from 140 kg up to 210 kg
• Bottom cable entry regardless of panel location

Technical specification

Unique ref.SECBIM0014
Product familyControl Systems
Product groupController
TypeObject (single object)
Date of publishing2024-03-14
Edition number1
Height (mm)1400
Width (mm)1200
Depth (mm)400

Links

Material mainSteel
Designed inUnited Kingdom
Manufactured inUnited Kingdom
Weight Net (Kg)210

Classification

BIMobject CategoryElectrical - Controls
IFC classificationController
Uniclass 2015 CodePr_75_50_18
Uniclass 2015 DescriptionControllers and control panels
