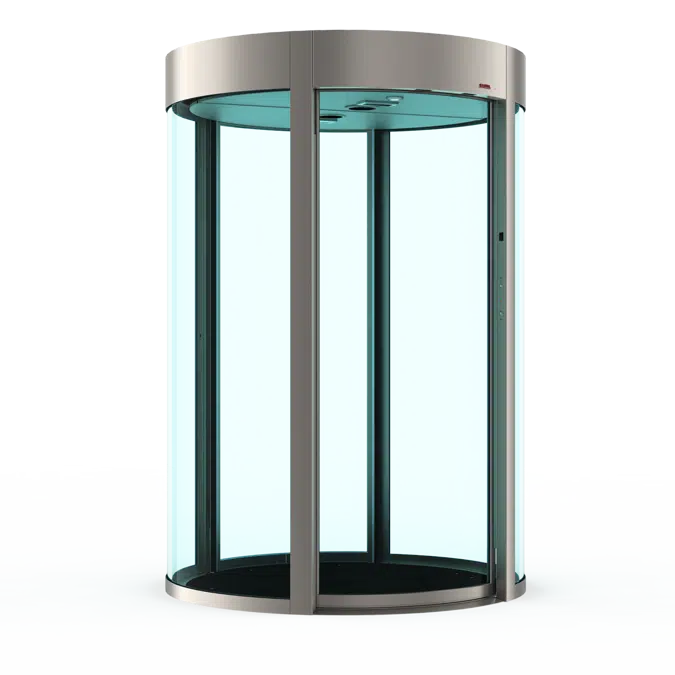

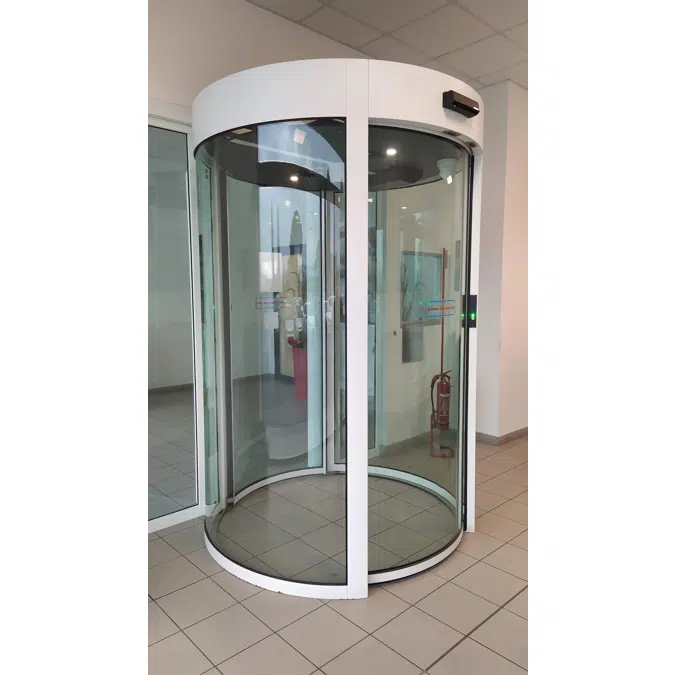

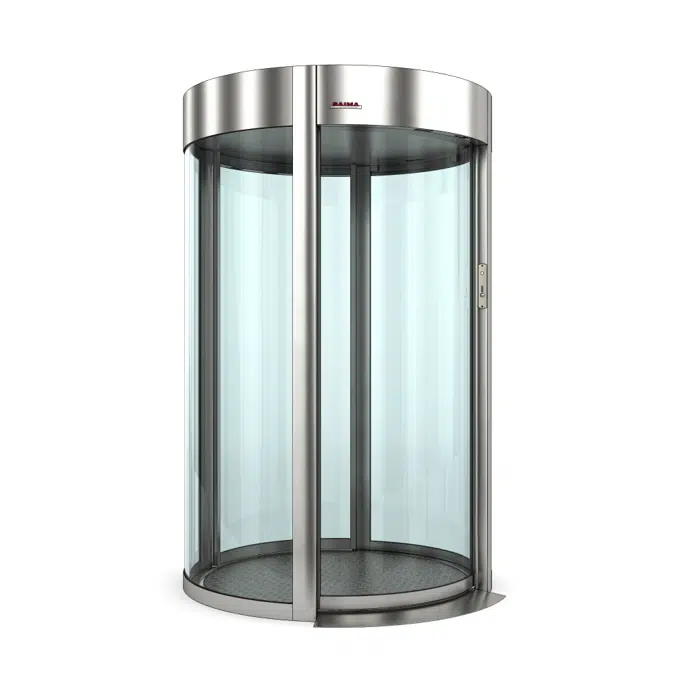

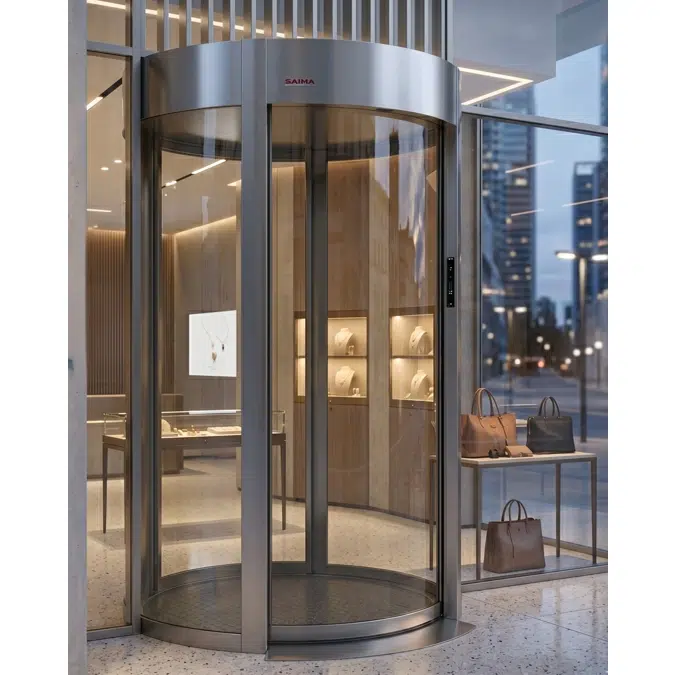

IR - Security Interlocked Door

(IR) The Saima range of interlocking doors combines high-resistance extruded aluminum structures with advanced security to ensure reliability and protection against break-in attempts. Engineered for high-security environments like Banks and Data Centers, the system utilizes a PC-concept electronics architecture supporting communication standards such as Ethernet (TCP/IP), USB-3, and CAN BUS.The portal features a high-speed processor that constantly monitors safety sensors and manages unicity of passage via cameras or equivalent systems to prevent tailgating. A key innovation is the remote management system, which allows real-time diagnostics, configuration, and maintenance through a tablet, PC, or smartphone via Wi-Fi. Additionally, the "low energy" motor characteristics reduce harmful emissions, and the use of standardized aluminum profiles across all models ensures assembly flexibility and reduced maintenance times.

Specification

1. Power Supply: Switching 110/230V dc (CE and UL standard). 2. Maximum Power Absorbed: Brushless motors in 24V dc 50W. 3. Working Temperature: A heating kit is available as an option for drives and electronics in various environments. 4. Backup Battery: Included as a standard feature , featuring security electric locks at 24V dc and emergency opening triggered by an external signal. 5. Operating Logic: Electronic equipment controller fitted with Ethernet 100Mb/s Ports, RS485 x 2, Can bus, RS 232, and USB ports ($2.0 \times 2$). It also includes an IP network connection and a historic events database. 6. Accident Prevention: Standard features include anti-air-passage brushes and emergency opening signals. Optional safety includes a single passage detection system (camera, mat, or weight system) and internal emergency buttons. 7. Dimensions: Total Height (Standard): 2320 mm. External Diameter: Ranges from 1050 mm (IR6/IR6F) to 1800 mm (IR11F). Passage Width (PW): Ranges from 600 mm to 1050 mm depending on the model. Weight: The structure features 11/12 mm glass and can be reinforced with FB4 or FB6 bullet-resistant materials.

Technical specification

Unique ref.IR
Product familySecurity Doors
Product groupMotorized Security Doors
TypeObject (single object)
Date of publishing2026-04-30
Edition number1
Height (mm)2575
Width (mm)1750
Depth (mm)1536

Links

Product urlhttps://www.saimasicurezza.com/sectors/public-entities/interlocking-door-commodoor-light/

Material mainAluminium
Material secondaryGlass
Designed inItaly
Manufactured inItaly
Weight Net (Kg)1200

Classification

BIMobject CategoryDoors - Security Doors
IFC classificationDoor
Uniclass 2015 CodePr_30_59_34
Uniclass 2015 DescriptionGates and turnstiles
CSI MasterFormat 2014 Code11 14 13.19
CSI MasterFormat 2014 TitleTurnstiles
OmniClass Number23-17 11 49
OmniClass TitleSecurity Rated Door
