Pass 107 Light

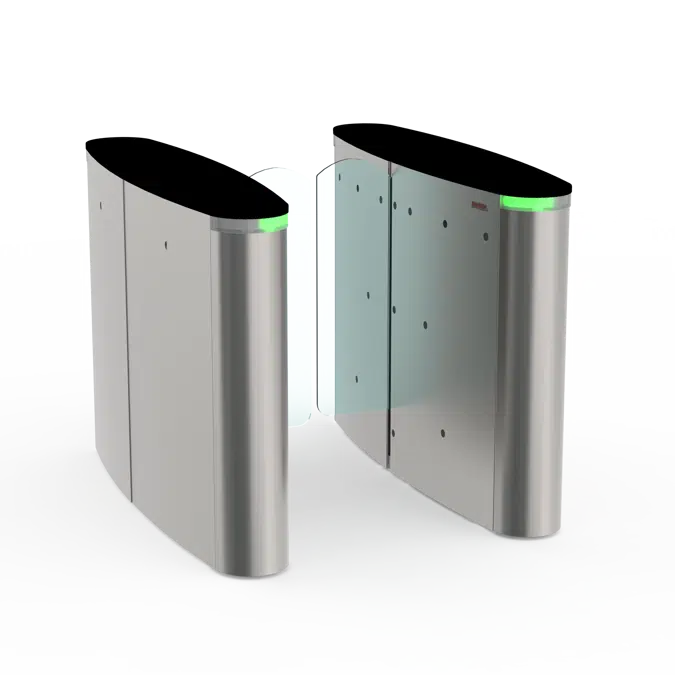

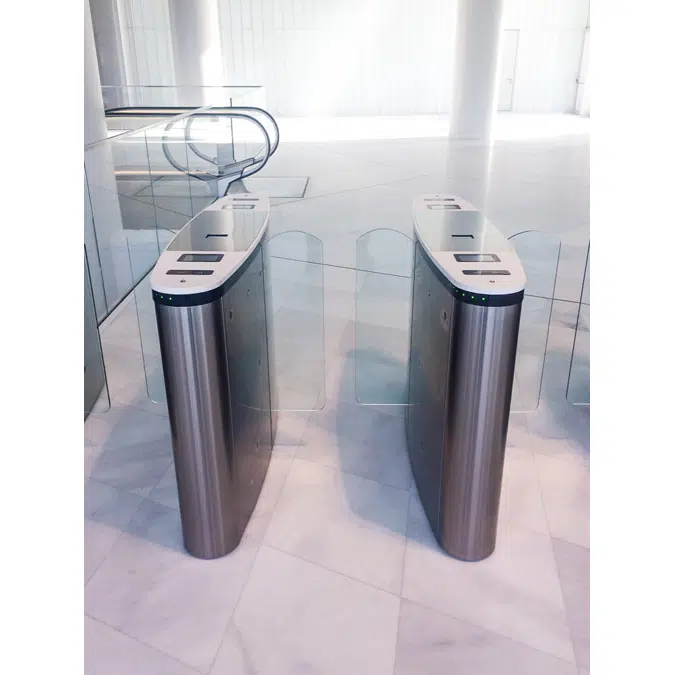

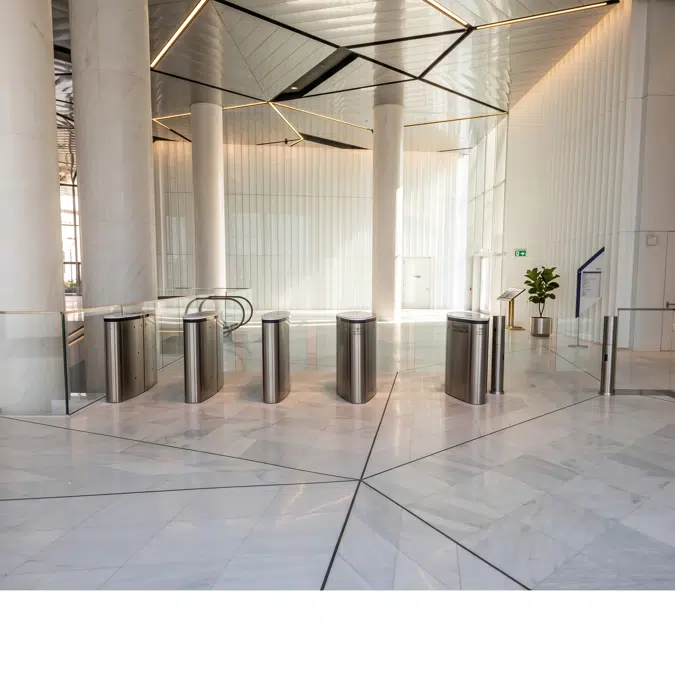

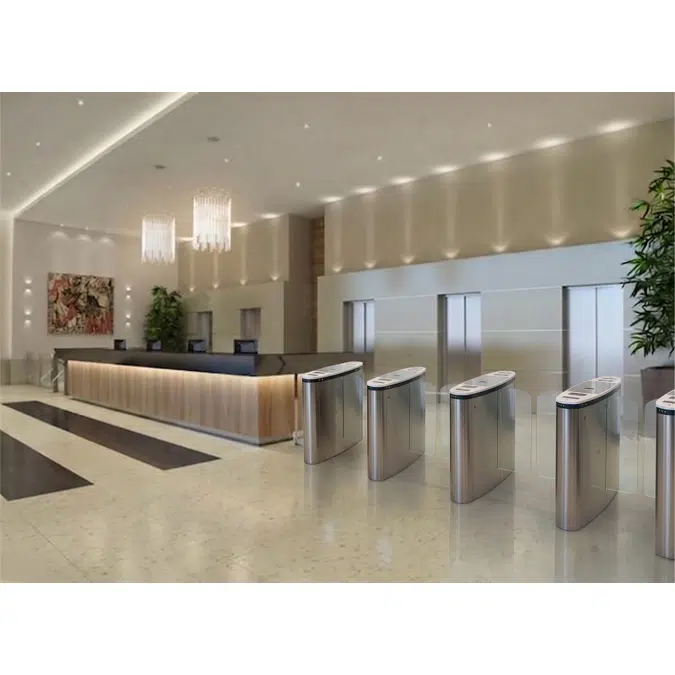

Pass 107 Light is a motorized gate that the combination of raw material (steel, and glass) and Italian style make particularly smart and elegant. This access control system, made by two or more machines combined to work together, is able to protect any entrance. The transit is allowed by the sliding motion of the leaves that regulate the opening /closing of the gate. Versions with a larger passage are available too, to allow the passage to wheelchairs. Besides it is also possible to carry out extendable machines working with open leaves and different glass height for increasing the physical safety of the passage.

Specification

1. Power Supply: 230Vac (+/- 10%) 50Hz or 110Vac (+/- 10%) 60Hz.
2. Maximum power absorbed: 400W.
3. Working Temperature: - 10 °C/55 °C - 14 °F/131 °F.
4. Motors: n.2 24Vcc engines for the movement of the wings, with safety lock when closing. In case of emergency opening wings.
5. Operating logic: programmable by microprocessor with n. 1 RS485 and n. 1 RS232.
6. Accident prevention: Photocells on the walls of the passages both at the entrance and at the exit and a control system that guarantees the regulation of the torque of the engine.
7. Transit speed: 30 passes per minute (excluding the action times of any badges).
8. Dimensions:
Total dimensions:
Height 1000 mm - 39 3/8"
Length 1415 mm - 55 3/4"
Passage size (mm): Width 600 mm - 23 5/8".
Weight: 380 Kg - 837,75 lbs (standard gate, 2 machine bodies).
9. MCBF: 2 years o 1 000 000 of passages respecting the ordinary maintenance.
10. MTTR: 1 hour.

Technical specification

Unique ref.Pass-107-Light
Product familySpeed Gate
Product groupSpeed Gate
TypeObject (single object)
Date of publishing2022-09-23
Edition number1
Height (mm)1000
Width (mm)320
Depth (mm)1413

Links

Product urlhttps://www.saimasicurezza.com/security-systems/pass-107-light/

Material mainStainless steel
Material secondaryGlass
Designed inItaly
Manufactured inItaly
Weight Net (Kg)380

Classification

BIMobject CategoryDoors - Security Doors
IFC classificationDoor
UNSPSC nameSecurity or access control systems
UNSPSC code46171619
Uniclass 2015 CodePr_30_59_34
Uniclass 2015 DescriptionGates and turnstiles
CSI MasterFormat 2014 Code08 34 56
CSI MasterFormat 2014 TitleSecurity Gates
OmniClass Number23-11 25 15 15
OmniClass TitleSliding Gates
CSI UniFormat II CodeC1020
CSI UniFormat II TitleInterior Doors
