Technical information
Equipment made of non-impregnated mountain larch
Core-free
Sawn-timbers core-free, thus decreasing occurrences of cracking and undesired changes in shape
Laminated wood beams
Laminated wood beams made of non-impregnated larch, glued according to EN 14080:2013; for very large timber cross-sections; comparatively low shrinkage, almost completely free of cracks
Plywood
Plywood made of mountain larch, three-layer (3 cm) or five-layer (4 cm). High dimensional stability, waterproof, glued according to DIN EN 13353:2011
Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel
See-saw mechanism with rubber buffers, maintenance-free. Grips of stainless steel, glass bead blasted.

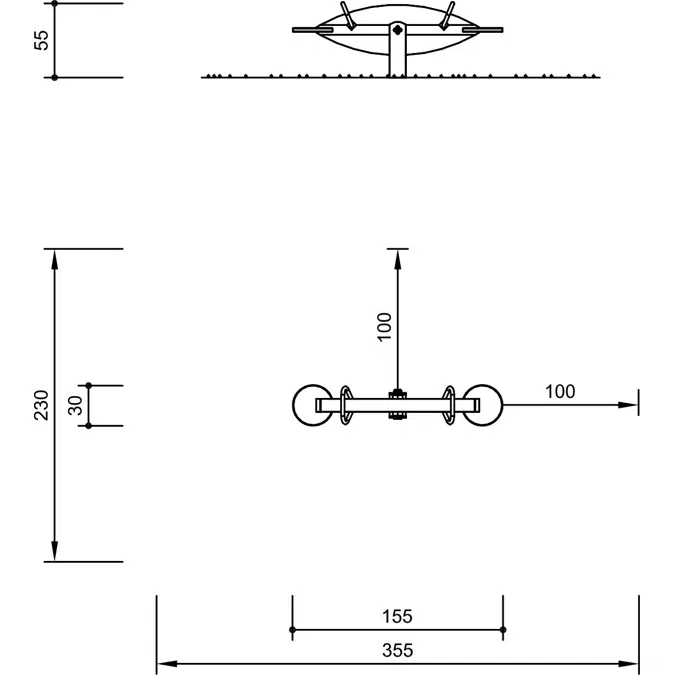

- Height: 0.55 m
- Max. rocking height: 0.80 m
- Length: 1.55 m
- Width: 0.30 m
- Weight: 55 kg
Installation information
Surfacing requirements
Corresponding to a critical fall height of ≤ 1.00 m
Foundations
- 1 item: 50 x 80 x 50 cm
- Excavation depth: 70 cm
Attention:
Exact measurements may vary. For all installation dimensions, please refer to the current installation instructions.
Technical changes reserved.
