Toddler's Twin Swing special | Playground Equipment | Swing

Technical information

Equipment made of non-impregnated mountain larch

Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced

Swing joint
Drop-forged, hot-dip galvanised swing joint with sintered bush and integrated swivel

Profiled washer
Profiled washer for covering protruding screw heads according to standard, improved pressure distribution and protection against water. Impedes loosening the bolt

Interlocking
Interlocking connection, with milled metal rings or serrated disc dowels, to reinforce the bolt connection under high loads transverse to the grain direction of the wood

Sintered bush
For all reciprocating movements we use sintered plain bearings which are self-lubricating in use and can easily be exchanged if necessary

Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel

Cross beam made of steel
Swing cross beam made of hot-dip galvanized steel. Optimized swing geometry with rigid corner connections, thus allowing for smaller foundations and easier foundation covering

Chains
Chains made of hot-dip galvanized steel (1.4301 / 1.4571 at extra charge) welded before galvanising, short-linked, without eyelets on the connecting parts, easy to exchange and shorten

Flexible swing seat made of steel reinforced rubber.

• Toddler's Swing special: Height 1.95 m, Vertical clearance 1.70 m, Width 2.25 m, Weight 130 kg

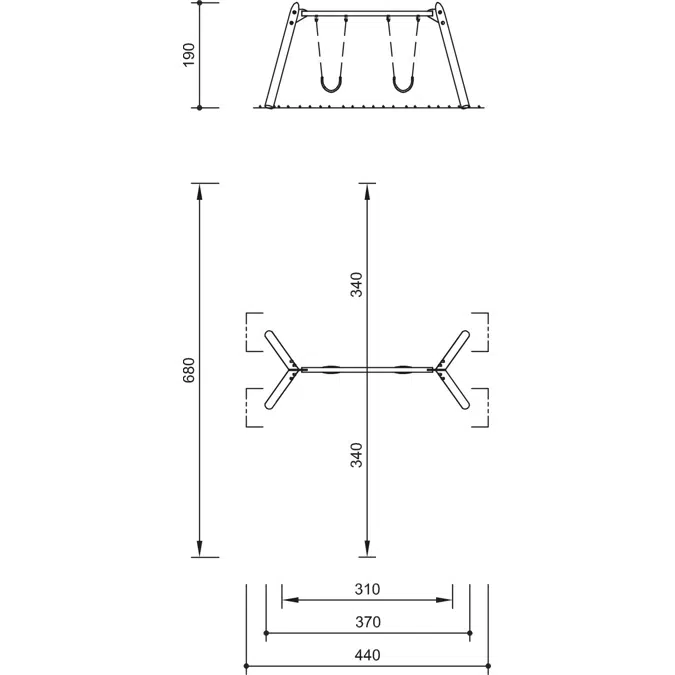

• Toddler's Twin Swing special: Height 1.90 m, Vertical clearance 1.70 m, Width 3.70 m, Weight 180 kg

Installation information

Surfacing requirements
Corresponding to a fall height of ≤ 1.00 m

Foundations

• 2 items: 60 x 60 x 60 cm, excavation depth 80 cm
• 4 items: 60 x 70 x 40 cm, excavation depth 60 cm

Attention:
Exact measurements may vary. For all installation dimensions, please refer to the current installation instructions.

Technical changes reserved.
