Off-road Vehicle | Playground Equipment | Play Vehicle

Technical information

Equipment made of non-impregnated mountain larch

Core-free
Sawn-timbers core-free, thus decreasing occurrences of cracking and undesired changes in shape

Tongue and groove
Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling of dust / sand, protection against direct rain

Plywood
Plywood made of mountain larch, three-layer (3 cm) or five-layer (4 cm). High dimensional stability, waterproof, glued according to DIN EN 13353:2011

Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel

Chains
Chains made of hot-dip galvanized steel (1.4301 / 1.4571 at extra charge) welded before galvanising, short-linked, without eyelets on the connecting parts, easy to exchange and shorten

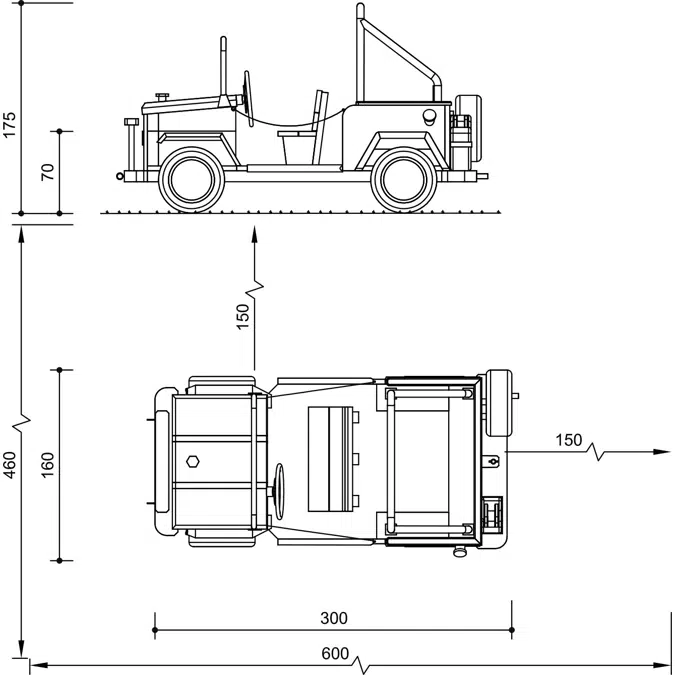

• Height: 1.75 m
• Length: 3.00 m
• Width: 1.60 m
• Weight: 525 kg

Installation information

Surfacing requirements
Corresponding to a fall height of ≤ 1.00 m

Foundations

• 2 items: 60 x 120 x 40 cm
• Excavation depth: 60 cm

Attention:
Exact measurements may vary. For all installation dimensions, please refer to the current installation instructions.

Technical changes reserved.
