Technical information

Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced

Universal joint
Drop-forged, hot-dip galvanised universal joint, consists of two sintered bushes, for free swinging in any direction

Profiled washer
Profiled washer for covering protruding screw heads according to standard, improved pressure distribution and protection against water. Impedes loosening the bolt

Interlocking
Interlocking connection, with milled metal rings or serrated disc dowels, to reinforce the bolt connection under high loads transverse to the grain direction of the wood

Sintered bush
For all reciprocating movements we use sintered plain bearings which are self-lubricating in use and can easily be exchanged if necessary

Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel

Cross beam made of steel
Swing cross beam made of hot-dip galvanized steel. Optimized swing geometry with rigid corner connections, thus allowing for smaller foundations and easier foundation covering

Stainless chains
Chains made of steel with high corrosion resistance. Short-linked, without eyelets on the connecting parts, easily replaceable and simple shortening

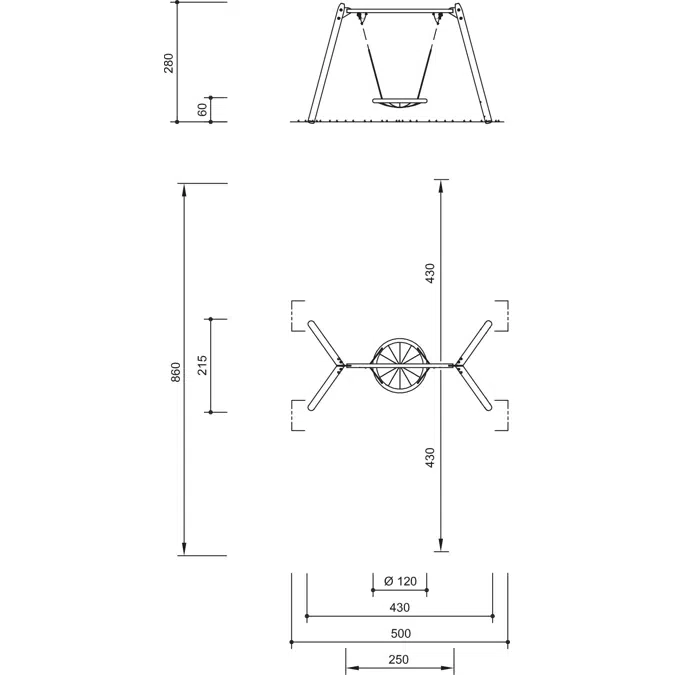

Stork nest Ø 120 cm with olive green rope ring (PP), net seat and suspension rope black Ø 16 mm (polyester). Suspended on Ø 7 mm stainless steel chains.

• Height: 2.80 m
• Vertical clearance: 2.60 m
• Length: 4.30 m
• Width: 2.15 m
• Weight: 280 kg

Installation information

Surfacing requirements
Corresponding to a fall height of ≤ 1.50 m

Foundations

• 4 items: 60 x 70 x 60 cm
• Excavation depth: 80 cm

Attention:
Exact measurements may vary. For all installation dimensions, please refer to the current installation instructions.

Technical changes reserved.
