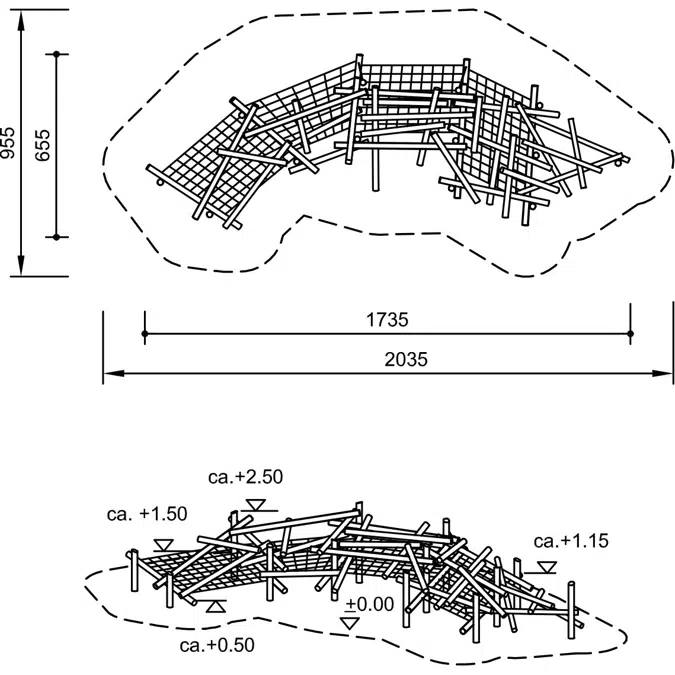

Climbing Structure 16 | Playground Equipment | Climbing Structure

Technical information

Posts made of robinia, Ø 15 - 21 cm

Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced

Bevel cut
Vertical stand posts with bevelled end grain section as constructive wood preservation measure

Richter Hercules type rope
Richter Hercules type rope, a combination of galvanised six-strand steel cables and polyester yarn, diameter > 20 mm, laid and glued with very good abrasion resistance, strong sheathing even in the case of damage by puncturing

Aluminium rope pressing
Aluminium rope pressing, cylindrically pressed, with rounded ends

S-connectors
S-connectors Ø 8.1 mm, made of high-quality stainless steel, rounded

Profiled washer
Profiled washer for covering protruding screw heads according to standard, improved pressure distribution and protection against water. Impedes loosening the bolt

Adjustable
Adjustable two-piece bolt connection, easy to maintain, no projecting threads

Stainless chains
Chains made of steel 1.4571 with high corrosion resistance. Short-linked, without eyelets on the connecting parts, easily replaceable and simple shortening

Distance fitting
Screw connection with distance fitting made of polyamide to avoid entrapment areas

Fastening of rope
Fastening of rope / net by means of adjustable chain fixation, easy assembly and maintenance

Standard colour rope: natural. For more detailed explanation of the quality characteristics see our website.

Installation information

Surfacing requirements
corresponding to a fall height of ≤ 3.00 m (please refer to our website for more detailed information)

Foundations

• 14 items 80 x 80 x 60 cm
• Excavation depth: 80 cm

Note
The climbing structure is an individual construction which is only partly pre-assembled in our workshop. Therefore, the installation needs to be carried out by an installation company authorised by us.

Technical changes reserved.
