Big Pyramid Tower | Playground Equipment | Play Tower

Technical information

Equipment made of non-impregnated mountain larch

Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced

Core-free
Sawn-timbers core-free, thus decreasing occurrences of cracking and undesired changes in shape

Claddings
Claddings made of mountain larch (4 - 5 cm). Peeled white by hand, natural tree surface remains tangible and perceptible

Tongue and groove
Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling of dust / sand, protection against direct rain

Hardwood rungs
Climbing rungs made of hardwood (ash) Ø 4.2 cm, milled and mortised, secured against twisting, easy to grip and not cold for children to touch

Interlocking
Interlocking connection, with milled metal rings or serrated disc dowels, to reinforce the bolt connection under high loads transverse to the grain direction of the wood

Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel. For more detailed explanation of the quality characteristics see our website.

Tip made of stainless steel, glass bead blasted.

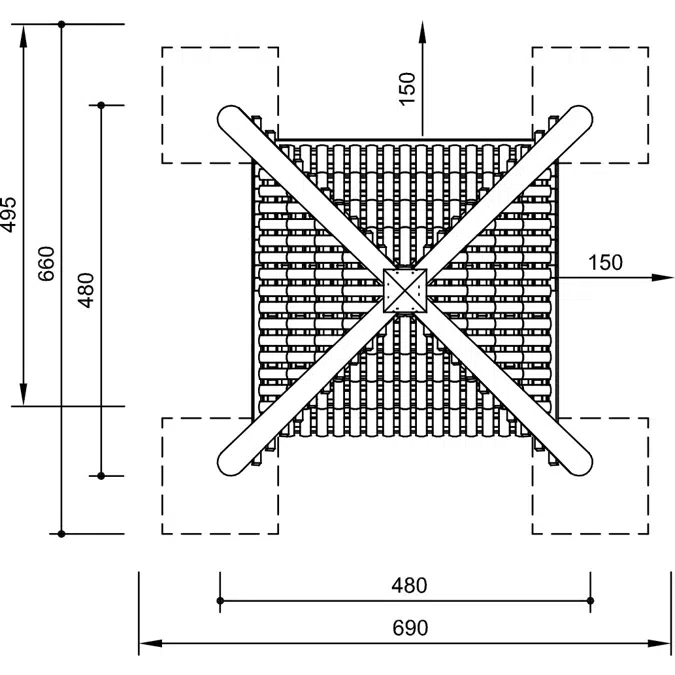

Dimensions
(small deviations possible)

• Order No. L3.41000, Small Pyramid Tower: Height 7.00 m, Floor heights 1.00 - 3.00 m, Ground surface 2.50 x 2.50 m, Support posts diameter 22 - 24 cm, Weight approx. 1500 kg
• Order No. L3.42000, Middle Pyramid Tower: Height 9.00 m, Floor heights 1.00 - 5.00 m, Ground surface 3.30 x 3.30 m, Support posts diameter 25 - 29 cm, Weight approx. 3000 kg
• Order No. L3.42500, Midsize Pyramid Tower: Height 11.00 m, Floor heights 1.00 - 7.00 m, Ground surface 4.00 x 4.00 m, Support posts diameter 25 - 29 cm, Weight approx. 4000 kg
• Order No. L3.43000, Big Pyramid Tower: Height 13.00 m, Floor heights 1.00 - 9.00 m, Ground surface 4.80 x 4.80 m, Support posts diameter 26 - 35 cm, Weight approx. 6000 kg

Installation information

Surfacing requirements
Corresponding to a fall height of ≤ 1.00 m (please refer to our website for more detailed information).

Foundations

• Order No. L3.41000, Small Pyramid Tower: 4 items 100 x 100 x 80 cm, Excavation depth 100 cm
• Order No. L3.42000, Middle Pyramid Tower: 4 items 100 x 100 x 100 cm, Excavation depth 120 cm
• Order No. L3.42500, Midsize Pyramid Tower: 4 items 150 x 150 x 100 cm, Excavation depth 120 cm; 1 item 90 x 30 x 50 cm, Excavation depth 70 cm
• Order No. L3.43000, Big Pyramid Tower: 4 items 150 x 150 x 100 cm, Excavation depth 120 cm; 1 item 90 x 30 x 50 cm, Excavation depth 70 cm; 1 item 40 x 40 x 50 cm, Excavation depth 70 cm

Attention:
Exact measurements may vary. For all installation dimensions, please refer to the current installation instructions.

For special climatic conditions, the equipment is also available with support posts made of glued laminated beams in mountain larch with square cross-section.

Technical changes reserved.
