AQuadrat® | Playground Equipment | Water Play Installation

Technical information

Pedestals
Modular system made of non-impregnated mountain larch, in high-quality and superior construction

Core-free
Sawn-timbers core-free, thus decreasing occurrences of cracking and undesired changes in shape

Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel. For more detailed explanation of the quality characteristics see our website.

With dovetail jointed corners. Gutters made of stainless steel, glass bead blasted. Functional elements made of stainless steel, glass bead blasted, rubber wedge made of industrial rubber (Order No. 5.51010 / 5.53200).

Up-to-date details on the connection for the water supply see Order No. 5.18000 Mushroom Spring and Order No. 5.17630 Playground Pump.

Order No. 5.53300 / 5.53400: Connection to mains water max. 6 bar, required diameter for water supply 3/4 inch inside (we recommend a compression proof diameter 3/4 inch).

Dimensions
(small deviations possible)

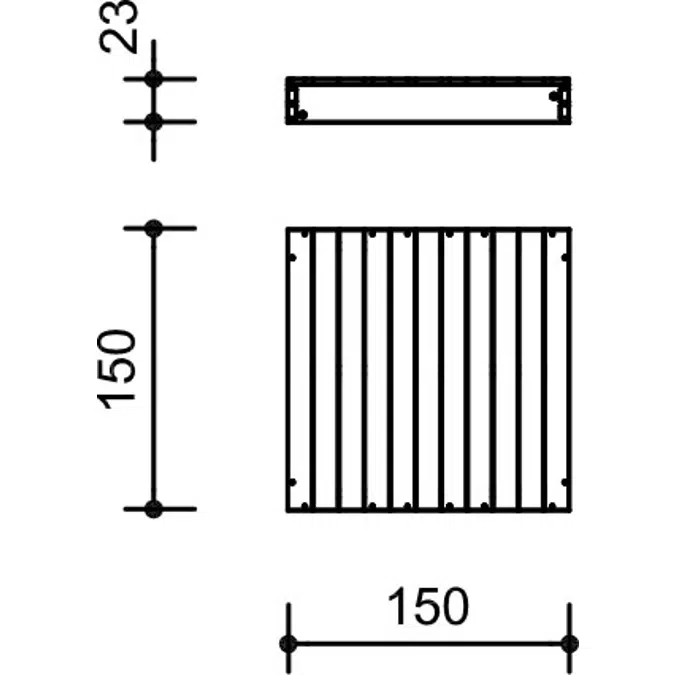

• Size of module: 1.50 x 1.50 m
• Height of single elements: 0.23 m
• Height of the substructure: 0.20 m

Components
Depending on the overall installation (Order No. 5.50001 - 5.53010)

Trademark
303 39 335.1 Germany

Installation information

Surfacing requirements
No fall height according to standard; a staircase-like construction may make necessary a check of the critical fall heights.

Recommendation
Sand with drainage and pavement with gully and corresponding landscaping.

Foundations per corner

• 1 item: 50 x 50 x 40 cm
• Excavation depth: 70 cm

Attention:
Exact measurements may vary. For all installation dimensions, please refer to the current installation instructions.

Technical changes reserved.

For use in aggressive environments such as salt or chlorine water, the water-bearing elements are also available in marine grade steel (V4A).
