    PREFA

    Siding

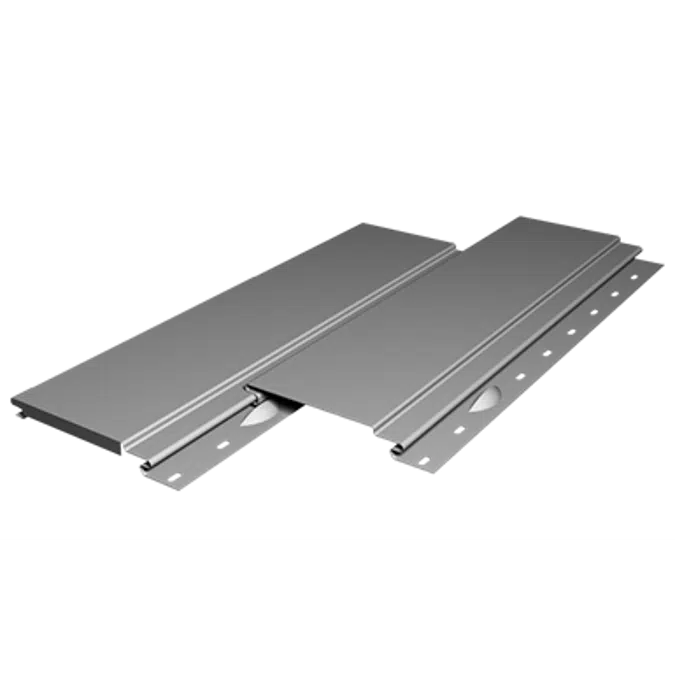

    PREFA aluminium sidings are façade elements from our façade range. PREFA sidings are used in a variety of ways, both indoors and out, as wall and ceiling coverings. Their concealed fastening (via a tongue and groove system) guarantees an attractive appearance. PREFA sidings can be installed horizontally or vertically, with or without a shadow gap, enable building façades to be ingeniously enhanced, maintained and modernised for decades to come.

    • Can be safely installed: diagonally, vertically or horizontally
    • 23 colours to choose from
    • many design possibilities thanks to the combination of different visible widths
    Specification

    • COATING: Coil coating

      STANDARD MATERIAL:

      0.7 × 138 mm (thickness/visible side), stucco, lined with shadow gap option (also smooth for P.10)
      1.0 × 200 mm (thickness/visible side), smooth, lined or stucco, with shadow gap option
      1.2 × 300 mm (thickness/visible side), smooth, with shadow gap option
      1.2 × 400 mm (thickness/visible side), smooth, with shadow gap option (installation with storm-proof clip)
      special visible widths (120 to 400 mm) upon request

      ENDS: with or without edge downstand (11 mm)

      SHADOW GAP: with or without shadow gap; shadow gap: 15 mm wide, 7 mm deep

      WEIGHT: approx. 3.30–4.30 kg/m² depending on the visible width

      LENGTH:
      500–2,500 mm for all visible widths (with PREFA joint)
      500–6,200 mm for all visible widths (without PREFA joint)

    Technical specification
    • Unique ref.siding
    • Product familyFacade Systems
    • Product groupFacade System
    • TypeObject (single object)
    • Date of publishing2020-09-16
    • Edition number1
    Links
    Related
    • Material mainAluminium
    • Designed inAustria
    Classification
    • BIMobject CategoryWalls - Curtain Walls

    Region availability

    Europe
    Austria
    Belgium
    Croatia
    Czech Republic
    Denmark
    Estonia
    France
    Germany
    Hungary
    Ireland
    Italy
    Latvia
    Lithuania
    Luxembourg
    Netherlands
    Norway
    Poland
    Russia
    Slovakia
    Slovenia
    Sweden
    Switzerland
    United Kingdom
