MK-Series Cloud-Managed Server OE-MKX
OpenEye

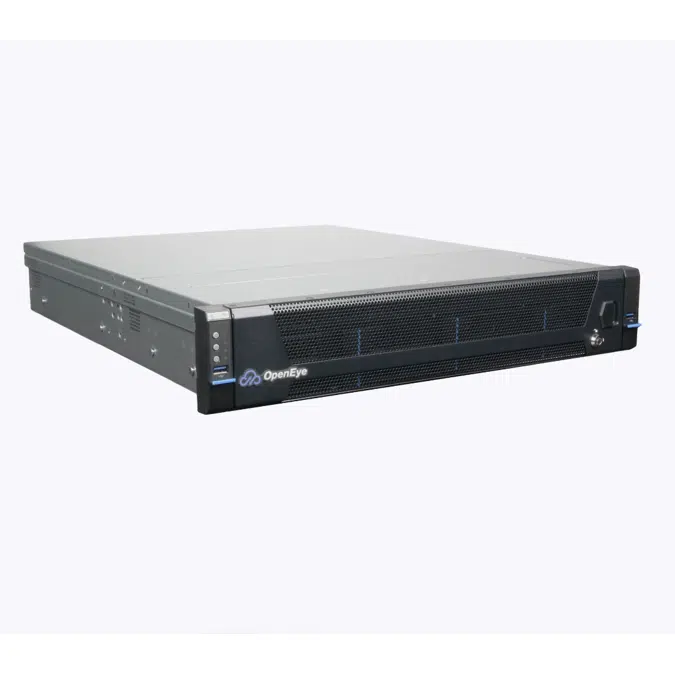

MK-Series Cloud-Managed Server OE-MKX

Purpose-built and enterprise-level, the OE-MK features increased processing and throughput to handle up to 96 channels.

Key features of OE-MK-Gen-4

8 Drive Capacity- Record video on up to 8 drives for advanced storage retention.

Front Swappable Drives- Maintain storage space easily with quick storage replacement.

Rack Mountable- Compatible with standard server racks.

SSD OS Drive- Increase storage capacity, speed and efficiency with solid-state drives.

Specification

  • Max Channel Count: 96
    Max Recording Rate:     300 Mbps
    Max Storage Capacity:     128TB
    Operating System:     Windows (Linux Optional)
    Network Ports:     1 x 2.5GbE, 1 x GbE
    Form Factor:     2U
    OS Drive:     Dedicated SSD (1x M.2 NVMe SSD)
    Storage Drives:     8
    Power Supply:     500W
    Power Consumption:     Max: 331W | Nominal: 268W
    Dimensions:     W: 17.3" x H: 3.5" x D: 22" (438 x 87 x 557mm)
    Weight:     38lbs (17.3kg)
    Certifications:     ETL (Intertek) / FCC
    Country Of Origin:     Assembled in the USA
    NDAA Compliant:     Yes

Technical specification
  • Unique ref.mk-series-cloud-managed-server-oe-mkx
  • Product familyOE-MK-RAID-Gen-4
  • Product groupMK-Series
  • TypeObject (single object)
  • Date of publishing2025-11-11
  • Edition number1
Links
Related
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryElectronics - Security, Cameras & Accessories
  • ETIM CodeEC001511
  • ETIM NameCamera for monitoring system
  • Uniclass 2015 CodePr_60_75_86
  • Uniclass 2015 DescriptionSurveillance cameras, monitors and ancillaries
  • CSI MasterFormat 2014 Code28 23 13
  • CSI MasterFormat 2014 TitleVideo Surveillance Control and Management Systems
  • OmniClass Number23-29 11 00
  • OmniClass TitleSecurity Detection and Monitoring
