MM-Series Cloud-Managed Server OE-MMX
OpenEye

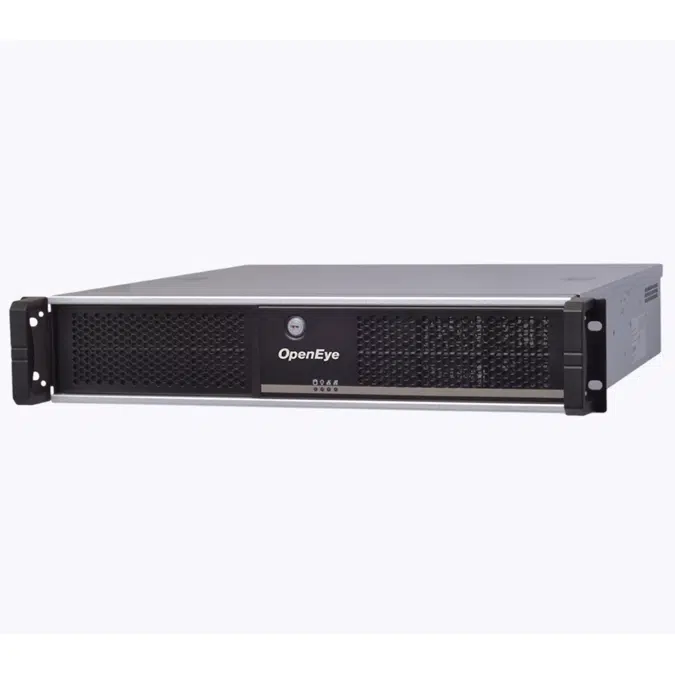

MM-Series Cloud-Managed Server OE-MMX

A scalable cloud-managed server, the OE-MM supports up to 96 channels of video.

Key features of OE-MM-Gen-2

4 Drive Capacity- Record video on up to 4 drives for increased storage retention.

Front Swappable Drives- Maintain storage space easily with quick storage replacement.

Rack Mountable- Compatible with standard server racks.

SSD OS Drive- Increase storage capacity, speed and efficiency with solid-state drives.

Scalable NVR Server- Scale to meet business needs with different upgrade options.

Specification

  • Max Channel Count: 64 (96 w/ Upgrade Options)
    Max Recording Rate:     300 Mbps
    Max Storage Capacity:     96TB
    Operating System:     Linux (Windows Optional)
    Network Ports:     1 x 2.5GbE, 1 x GbE
    OS Drive:     Dedicated SSD
    Power Consumption:     Max: 287W | Nominal: 223W
    Dimensions:     W: 16.9” x H: 3.5 x D: 18”
    Weight:     27lbs (12.25kg)
    Country Of Origin:     United States

Technical specification
  • Unique ref.mm-series-cloud-managed-server-oe-mmx
  • Product familyOE-MM-RAID-Gen-2
  • Product groupMM-Series
  • TypeObject (single object)
  • Date of publishing2025-11-11
  • Edition number1
Links
Related
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryElectronics - Security, Cameras & Accessories
  • ETIM CodeEC001511
  • ETIM NameCamera for monitoring system
  • Uniclass 2015 CodePr_60_75_86
  • Uniclass 2015 DescriptionSurveillance cameras, monitors and ancillaries
  • CSI MasterFormat 2014 Code28 23 13
  • CSI MasterFormat 2014 TitleVideo Surveillance Control and Management Systems
  • OmniClass Number23-29 11 00
  • OmniClass TitleSecurity Detection and Monitoring
