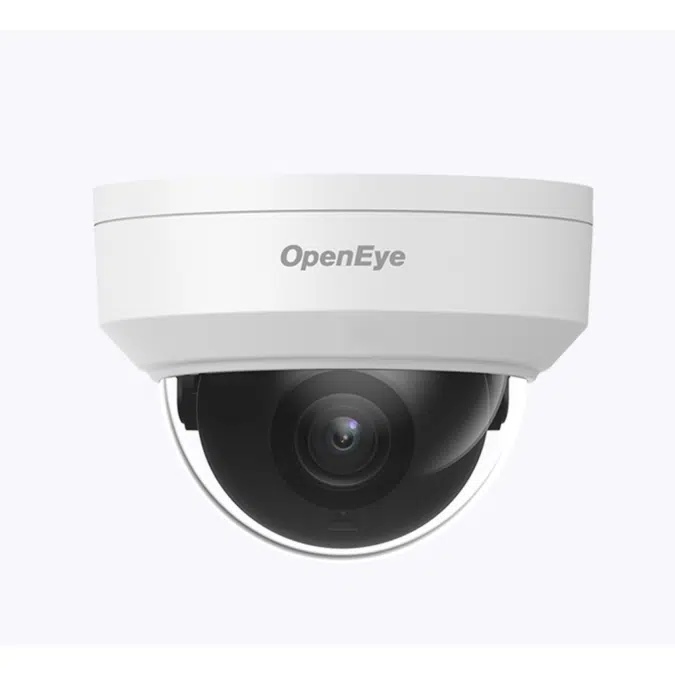

2MP Outdoor Mini IP Dome Camera oe-c1012d2-s
OpenEye

2MP Outdoor Mini IP Dome Camera oe-c1012d2-s

Equipped with person, vehicle, and line crossing analytics, the OE-C1012D2-S provides high quality images in a compact size.

Key features of OE-C1012D2-S

2MP- Experience clear imagery with 2MP resolution, boosting your video quality.

Audio I/O- Enhance video surveillance with clear sound capture and playback.

IK10- Protect cameras from tampering & vandalism with an IK10 rating.

Adaptive IR- Optimal illumination & clear images in low-light environments.

Paintable Snap On Cover- Match the environment with a snap-on paintable cover.

Relay Output- Use relays to actively manage your business remotely.

Sensor Input- Use sensors to actively manage your business remotely.

True Wide Dynamic Range- Quickly adapt to shifting light for consistent, high-quality imagery.

Specification
  • Environment: Outdoor
    Maximum Resolution:
    1920x1080
    Maximum Framerate:
    30FPS @ 1920x1080
    Lens:
    2.8mm Fixed Lens
    Field of View:
    105°
    Pan/Tilt/Rotate:
    Pan: 0° ~ 348° Tilt: -66° ~ 66° Rotate: 0° ~ 346°
    Ingress Protection:
    IP67
    Impact Rating:
    IK10
    Alarm I/O:
    1 / 1
    Power Source:
    PoE (IEEE 802.3af) / DC 12V±25%
    Power Consumption:
    Max 4.5W
    Operating Temperature:
    -22°F ~ 140°F (-30°C~60°C)
    Dimensions:
    W: Ø4.3 x H: 3.2 (Ø109 x 81mm)
    Weight:
    0.93lb (0.45kg)
    Certifications:
    UL / cUL / UKCA / CE / FCC
    Country Of Origin:
    China
    NDAA Compliant:
    Yes

Technical specification
  • Unique ref.2mp-outdoor-mini-ip-dome-camera-oe-c1012d2-s
  • Product family10-Series
  • Product groupDome Camera Series
  • TypeObject (single object)
  • Date of publishing2025-11-11
  • Edition number1
Related
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryElectronics - Security, Cameras & Accessories
  • ETIM CodeEC001511
  • ETIM NameCamera for monitoring system
  • Uniclass 2015 CodePr_60_75_86
  • Uniclass 2015 DescriptionSurveillance cameras, monitors and ancillaries
  • CSI MasterFormat 2014 Code28 23 13
  • CSI MasterFormat 2014 TitleVideo Surveillance Control and Management Systems
  • OmniClass Number23-29 11 00
  • OmniClass TitleSecurity Detection and Monitoring
