OKNOPLAST, patio door HST MOTION, opening schema K

OKNOPLAST, patio door HST MOTION, opening schema K

HST MOTION.
made for lightness

The visual lightness of the structure, excellent interior lighting, the possibility of creating large, glazing results and very good thermal insulation.

Specification

- Excellent interior lighting - large glass surfaces enclosed in narrow PVC profiles provide more light in the room.

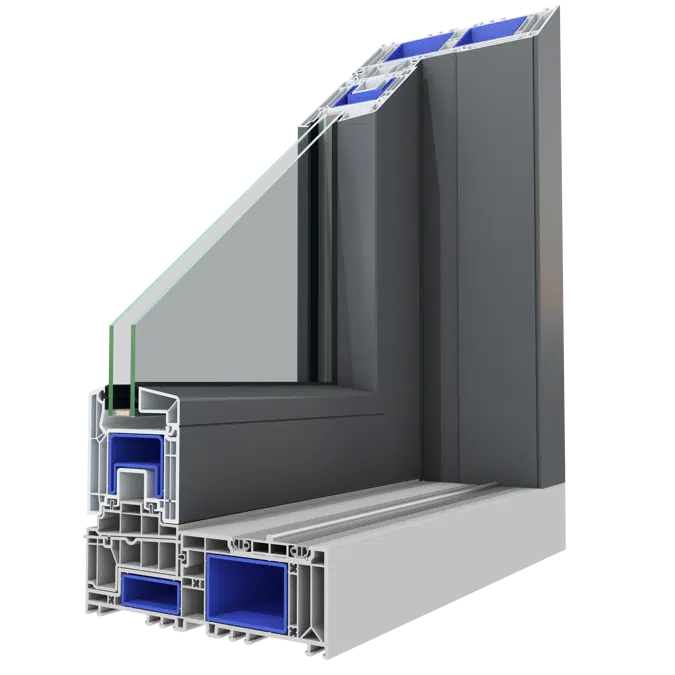

- Frame profile with a depth of 194 mm, 5-chamber sash profile with a depth of 82 mm provide a wide range of applications.
- The maximum dimension of the structure in opening scheme A is 6000 x 2700 mm.
- Possibility of installing warm triple or even quadruple glazing units up to a thickness of 54 mm.
- A system with excellent stability with new steel reinforcements.
- Possibility of installation very low threshold (threshold 0 mm).
- Optimal use of space inside the room: opening the door does not require opening the wings.
- Latest generation warm threshold.
- Specialized fittings ensure that the sash, after opening, moves freely on trolleys relative to the unopened part of the structure.

Technical specification

Unique ref.oknoplast-patio-door-hst-motion-opening-schema-k
Product familyWindows (PVC)
Product groupHST MOTION
TypeBuilding Material
Date of publishing2023-08-28
Edition number1

Links

Product urlhttps://oknoplast.com.pl/drzwi-tarasowe/hst-motion/

Related

Material mainPVC
Material secondaryGlass
Designed inPoland
Manufactured inPoland

Classification

BIMobject CategoryWindows - Sliding Windows
IFC classificationWindow
Uniclass 2015 CodeEF_25_30
Uniclass 2015 DescriptionDoors and windows
CSI MasterFormat 2014 Code08 50 00
CSI MasterFormat 2014 TitleWindows
OmniClass Number23-17 13 00
OmniClass TitleWindows

Region availability

Europe	North America
France	United States
Germany
Ireland
Italy
Poland
