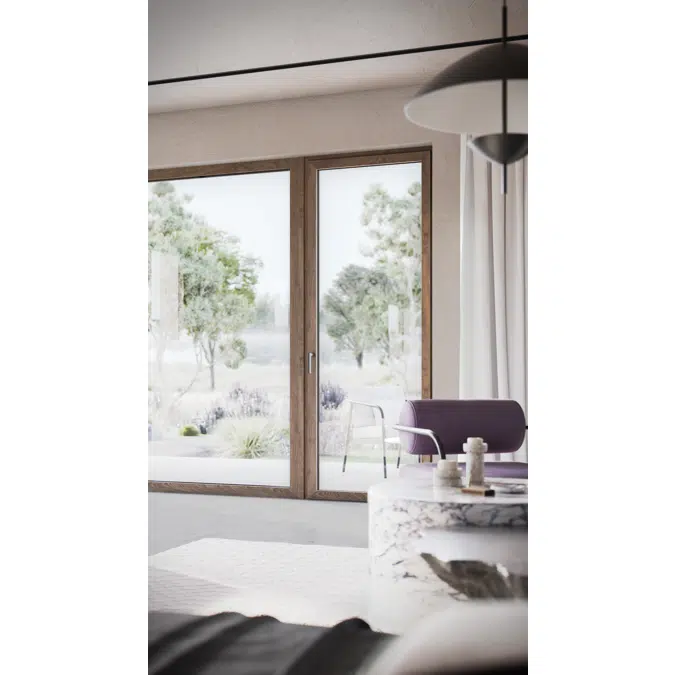

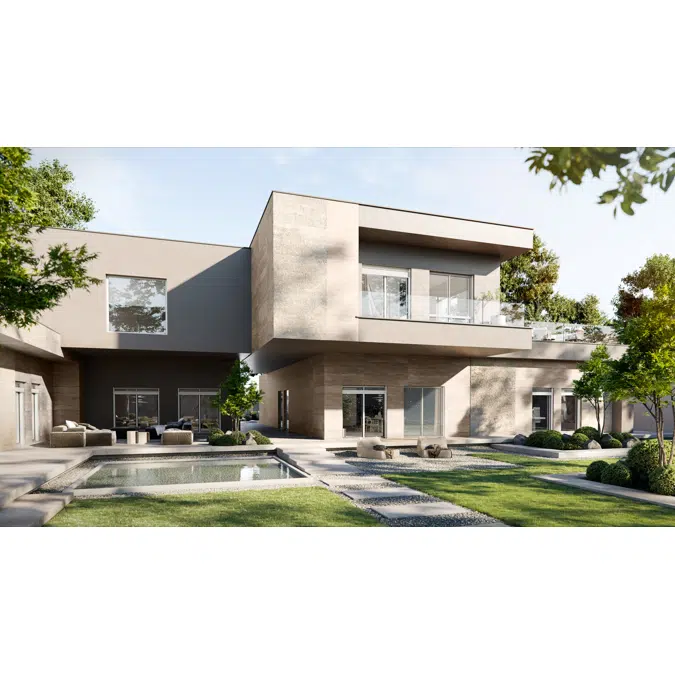

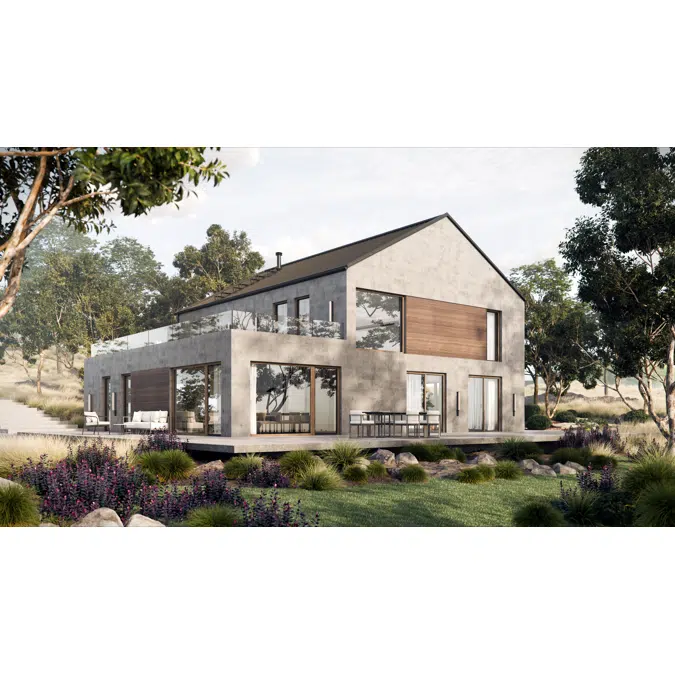

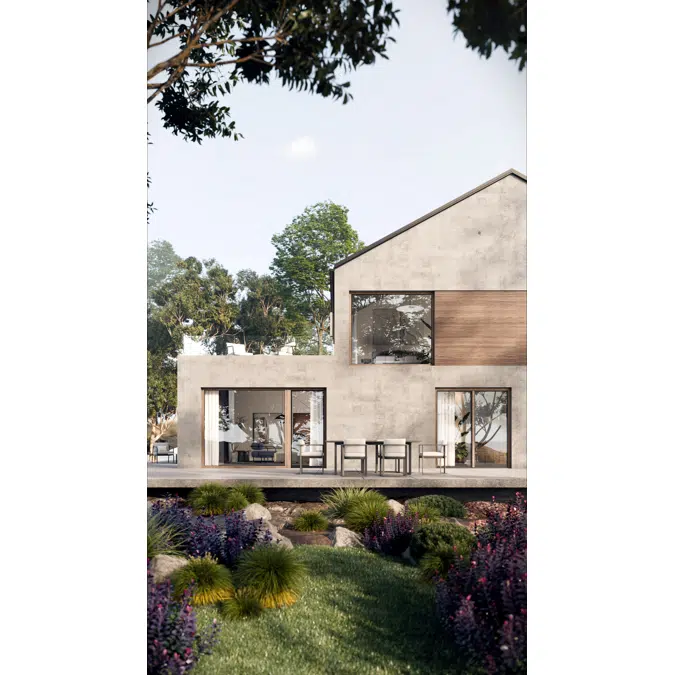

OKNOPLAST, window PILAR, fixed frame window

OKNOPLAST, window PILAR, fixed frame window

OKNOPLAST, window PILAR, fixed frame window

OKNOPLAST, window PILAR, fixed frame window

OKNOPLAST, window PILAR, fixed frame window

OKNOPLAST, window PILAR, fixed frame window

PILAR.
created for balance

Are you looking for balance in your life? PILAR is a window that combines aesthetics, functionality, and new technologies. Discover a groundbreaking window that breaks the mold.

Specification

- Proprietary Design: A unique, proprietary profile carefully designed to combine excellent aesthetics with exceptional functionality.
- Profile Specs: A 5-chamber Class A frame profile with a depth of 76 mm.
- Aluminum Look: A modern finish that gives the window an exclusive, industrial appearance.
- STV Technology: An innovative glass-bonding method that increases stability and improves durability.
THERMAL TRANSMITTANCE
Uw = 0.74 W/(m²K)*
SOUND INSULATION RAITING
Rw = 37 (-2; -7) dB**
* For a reference window with 4/18/3/16/3 glass with Ug = 0.5 W/(m²K) and a Warmatec warm edge spacer.
** For a reference window measuring 1230 x 1480 mm with 4Xglass 4TF/18cAr/3/16cAr/3TF glass.

Technical specification

Unique ref.oknoplast-window-pilar-fixed-frame-window
Product familyWindows (PVC)
Product groupPILAR
TypeBuilding Material
Date of publishing2026-05-07
Edition number1

Links

Product urlhttps://oknoplast.com/windows/pilar/

Related

Material mainPVC
Material secondaryGlass
Designed inPoland
Manufactured inPoland

Classification

BIMobject CategoryWindows - Fixed Frame Windows
IFC classificationWindow
Uniclass 2015 CodeEF_25_30
Uniclass 2015 DescriptionDoors and windows
CSI MasterFormat 2014 Code08 50 00
CSI MasterFormat 2014 TitleWindows
OmniClass Number23-17 13 00
OmniClass TitleWindows

Region availability

Europe	North America
France	United States
Germany
Ireland
Italy
Poland
