QF Elbow 16ga

Nordfab manufactures ducting for use in dust, mist, and fume collection systems.

Quick-Fit^® 16 gauge Elbows have rolled ends for use with Quick-Fit Clamps, allowing quick assembly / disassembly and relocation.

Available in 90°, 60°, 45°, and 30° with a radius of 1.5. Other CLRs available upon request. Long radius16ga elbows are also available.

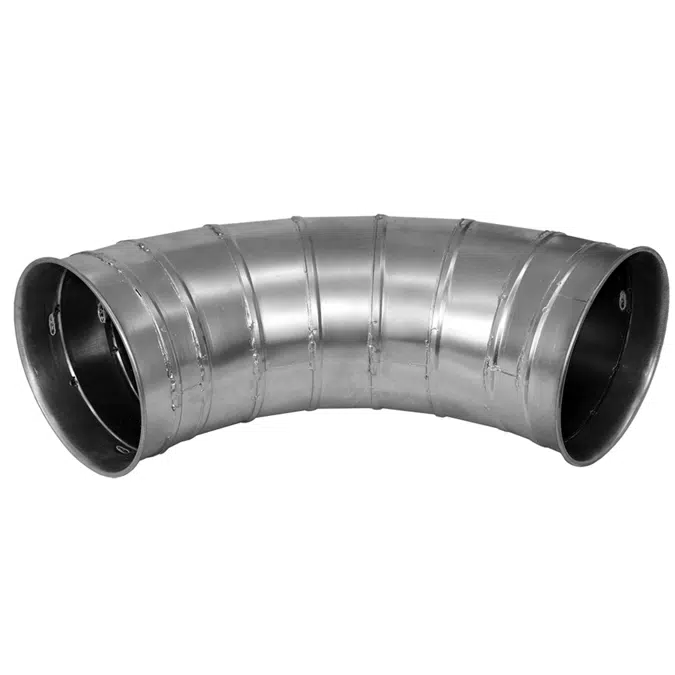

QF® Elbows in 16 gauge steel are constructed of gores lapped over one another and spot welded. Heavier gauge construction may be the solution to reduce the frequency and cost of replacing worn-through elbows in high wear applications.

This is a directional elbow supplied with an arrow to indicate the direction of flow.

Available in Galvanized and 304SS (as shown below) or optional 316SS or carbon steel
Available with flanged ends in diameters up to 72", and other various end styles. Please specify direction if ordering ends other than QF.
Elbows in even heavier gauges can be supplied in solid welded construction at an additional cost. Optional gauges standard 22 or 20, 18, 14, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options. Interior buffing available upon request for additional cost.

Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.

Specification

A. General Fabrication Requirements: Comply with SMACNA's "HVAC Duct Construction Standards - Metal and Flexible," Ch. 3, "Round, Oval, and Flexible Duct," based on indicated static-pressure class unless otherwise indicated.
1. Construct ducts of galvanized sheet steel unless otherwise indicated. 304SS Optional.
2. Basis-of-Design Product: Subject to compliance with requirements, provide Nordfab Ducting, LLC; Quick Fit (QF) Duct.
B. Connection Joints: Joint types are fabricated in accordance with SMACNA's "HVAC Duct Construction Standards - Metal and Flexible," for static-pressure class, applicable sealing requirements, materials involved, duct-support intervals, and other provisions in SMACNA's "HVAC Duct Construction Standards - Metal and Flexible."
1. Quick Fit Joints in Ducts 3 to 24 inches (76 to 510 mm) in diameter. Flange: Optional.
2. Flanged Joints in All Ducts Greater than 24 inches (610 mm) in diameter.
C. Longitudinal Seams: Seam types are fabricated in accordance with SMACNA's "HVAC Duct Construction Standards - Metal and Flexible," Figure 3-2, "Round Duct Longitudinal Seams," for static-pressure class, applicable sealing requirements, materials involved, duct-support intervals, and other provisions in SMACNA's "HVAC Duct Construction Standards - Metal and Flexible."
1. Fabricated round ducts 3 to 24 inches (76 to 510 mm) in diameter to have laser-welded or plasma-welded longitudinal seams.
2. Fabricated round ducts above 24 inches (610 mm) in diameter to have plasma-welded longitudinal seams.
