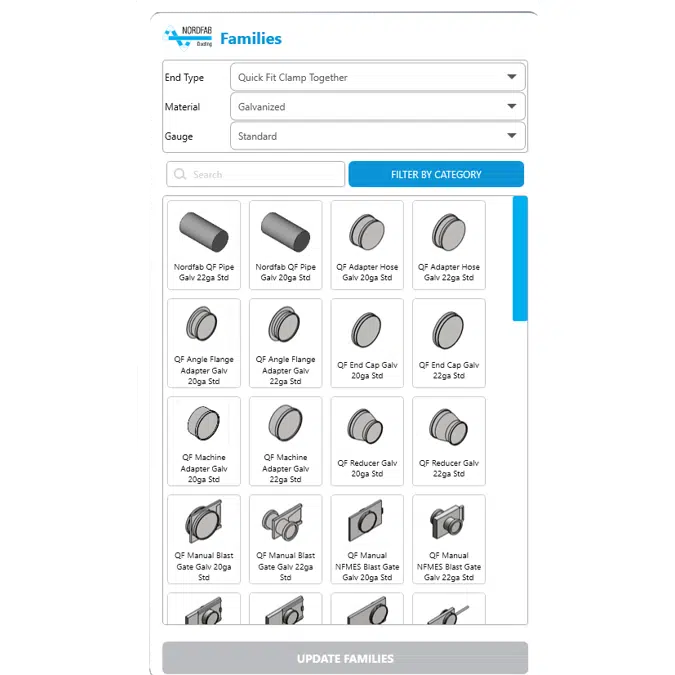

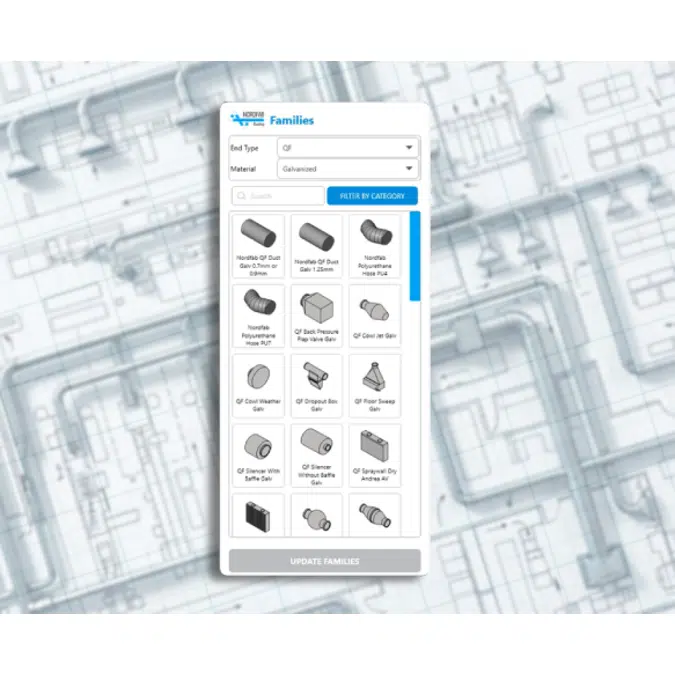

The Nordfab BIM Toolbar is a Revit® add-in that provides direct access to Nordfab’s BIM library of Quick-Fit® clamp-together ducting components for industrial ventilation and dust collection systems.

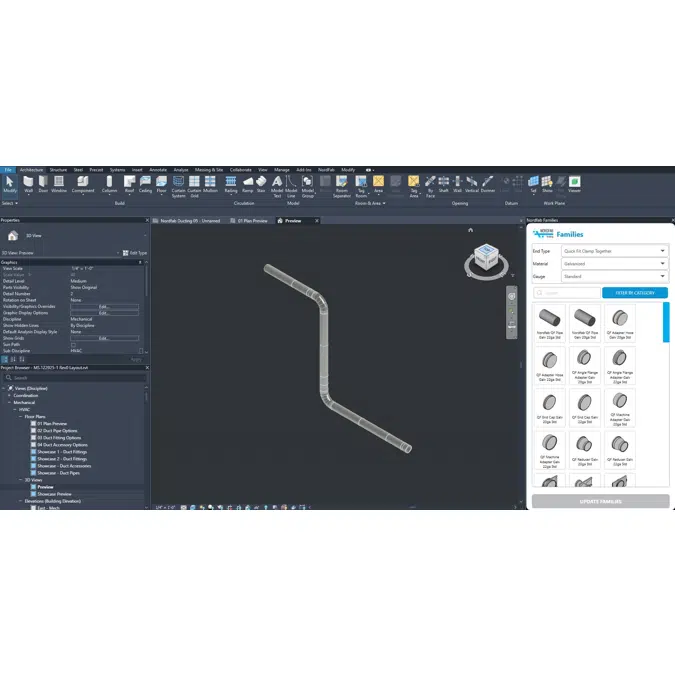

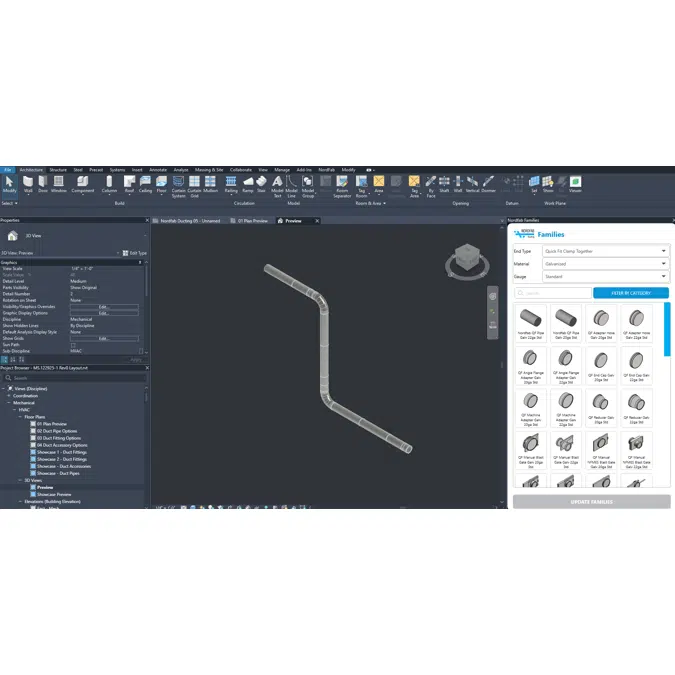

The toolbar enables engineers and designers to browse, insert, and update Nordfab ducting families directly inside Revit®, eliminating the need to manually download and manage family files.
The library includes a wide range of manufacturer-validated components with accurate geometry and embedded product data to support layout, coordination, scheduling, and downstream documentation. Both inch and metric configurations are available to support regional and global projects.
Key features include:
• In-model access to Nordfab Quick-Fit® ducting components
• Secure login access
• Update notifications to ensure current family versions
• Accurate geometry and connection details
• Embedded product data for improved coordination
• Designed specifically for industrial ventilation and dust collection workflows
The Nordfab BIM Toolbar helps reduce file management time, minimize RFIs, and improve overall modeling efficiency for small workshops through large-scale manufacturing facilities and gigafactories.
For questions, technical support, or a live walkthrough of the toolbar, please contact: info@nordfab.com
