M12 wall bushings

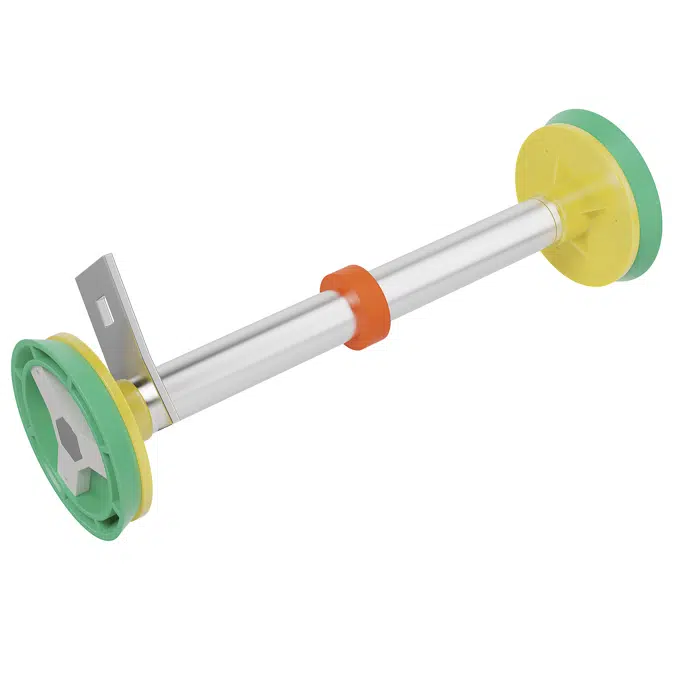

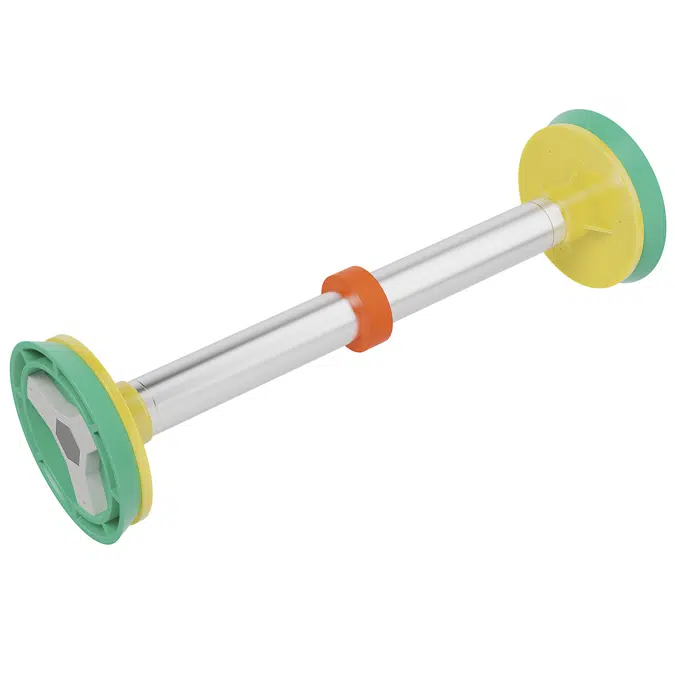

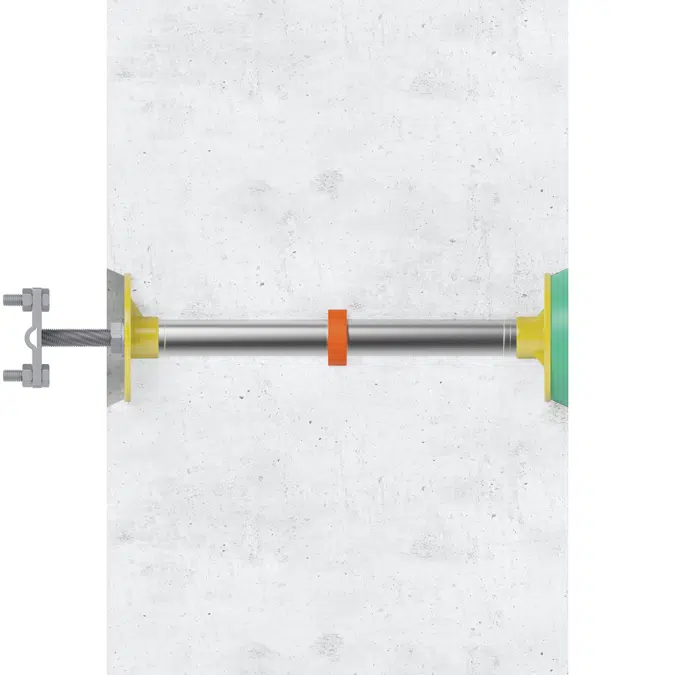

The M12 wall bushings have a solid 25 mm conductive core and are pre-assembled and supplied in the exact wall thickness. Time-consuming adjustments are not necessary.

available in Revit 2022-2027

3 versions available:

Type solo (Water pressure-tight wall bushing | M12 threaded connection on both sides | incl. nail adapter for fastening to the formwork)
Type connect (Water pressure-tight wall bushing | M12 threaded connection on both sides with additional connection plate for concrete-laid earthing conductors | incl. nail adapter for fastening to the formwork)
Type iso (Water pressure-tight, insulated wall bushing | M12 threaded connection on both sides | incl. nail adapter for fastening to the formwork)

Specification

Material:
Fixed earthing terminal + conductive core: stainless steel
Nail adapter: POM (polyoxymethylene)
Available for wall thicknesses:
70-300 mm
versions:
- M12 wall bushing type solo

  Revit model No. 1
  - Art.-No. 100366: wall thickness 70 mm
  - Art.-No. 100367: wall thickness 80 mm
  - Art.-No. 100368: wall thickness 100 mm
  - Art.-No. 100369: wall thickness 120 mm
  - Art.-No. 100371: wall thickness 150 mm
  - Art.-No. 100372: wall thickness 200 mm
  - Art.-No. 100373: wall thickness 240 mm
  - Art.-No. 100374: wall thickness 250 mm
  - Art.-No. 100376: wall thickness 300 mm
- M12 wall bushing type connect

  Revit model No. 2
  - Art.-No. 100366C: wall thickness 70 mm
  - Art.-No. 100367C: wall thickness 80 mm
  - Art.-No. 100368C: wall thickness 100 mm
  - Art.-No. 100369C: wall thickness 120 mm
  - Art.-No. 100371C: wall thickness 150 mm
  - Art.-No. 100372C: wall thickness 200 mm
  - Art.-No. 100373C: wall thickness 240 mm
  - Art.-No. 100374C: wall thickness 250 mm
  - Art.-No. 100376C: wall thickness 300 mm
- M12 wall bushing type iso

  Revit model No. 3
  - Art.-No. 100366I: wall thickness 70 mm
  - Art.-No. 100367I: wall thickness 80 mm
  - Art.-No. 100368I: wall thickness 100 mm
  - Art.-No. 100369I: wall thickness 120 mm
  - Art.-No. 100371I: wall thickness 150 mm
  - Art.-No. 100372I: wall thickness 200 mm
  - Art.-No. 100373I: wall thickness 240 mm
  - Art.-No. 100374I: wall thickness 250 mm
  - Art.-No. 100376I: wall thickness 300 mm
