Fixed earthing terminal M16 and accessories

Fixed earthing terminal M16 and accessories

Fixed earthing terminal M16 and accessories

Fixed earthing terminal M16 and accessories

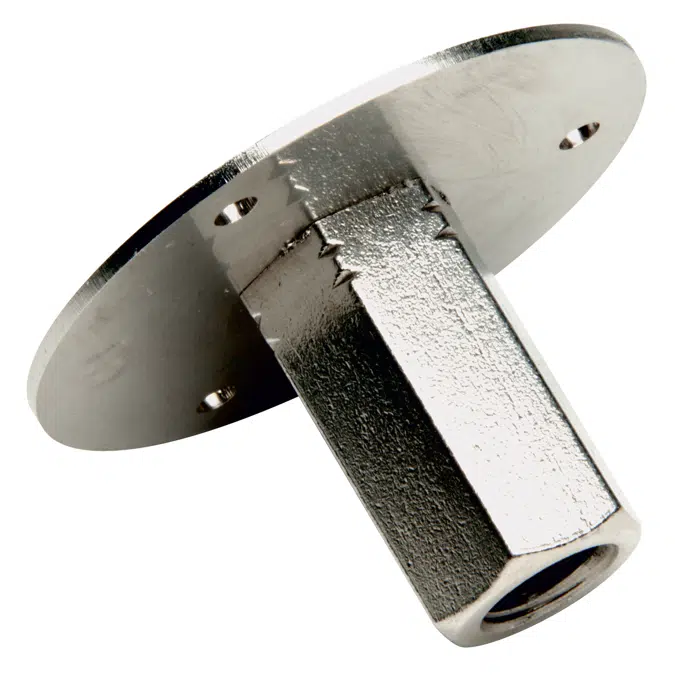

V4A earthing fixed terminal with M16 connection option

available in Revit 2023-2027

Specification

material: V4A stainless steel
versions:
- Fixed earthing terminal M16

  Revit model No. 1
  - Art.-No. 100455: without axis, with yellow protective cap
- Fixed earthing terminal M16 with flexible connection cable

  Revit model No. 2
  - Art.-No. 100461: V4A stainless steel, conductor length 400mm
- Cross clamp for fixed earthing terminal M16

  Revit model No. 3
  - Art.-No. 100458: V4A stainless steel, M16 thread, thread length 30mm

Technical specification

Unique ref.erdungsfestpunkt-m16-mit-zubehoer
Date of publishing2025-12-17
Edition number1

Links

Classification

BIMobject CategoryConstruction - Lightning protection
