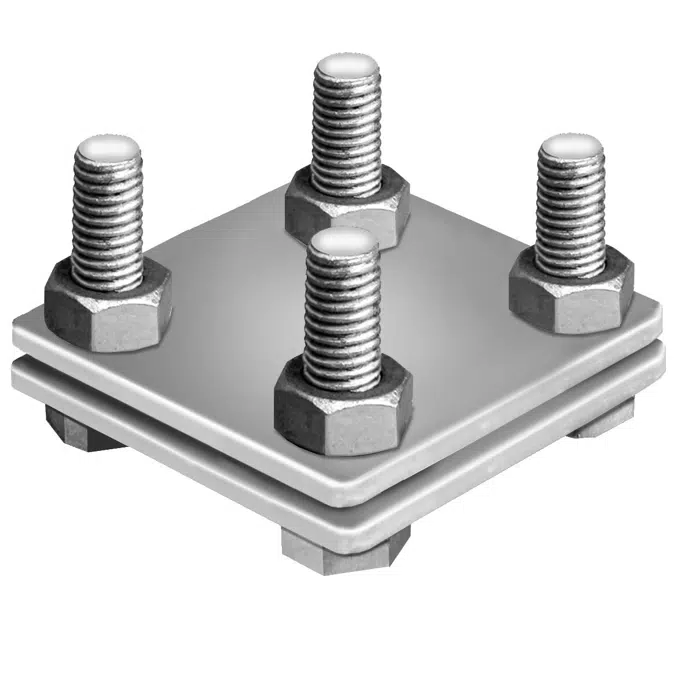

Galvanised cross connectors flat/flat

Galvanised cross connectors flat/flat

for earthing strap up to 30 mm wide

available in Revit 2022-2027 and as IFC

Specification

material:
Fe/Zn
versions:
- Galvanised cross connector flat-flat 30mm M8

  Revit model No. 1
  - Art.-No. 100100: 2-part, flat/flat up to 30mm, heavy duty version, M8 screws
- Galvanised cross connector flat-flat 30mm M6

  Revit model No. 2
  - Art.-No. 100106: 2-part, flat/flat up to 30mm, light version, M6 screws

Technical specification

Unique ref.kreuzverbinder-verzinkt-flach-flach
Date of publishing2025-12-17
Edition number1

Links

Product urlhttps://www.mastertec.eu/en/products/lightning-protection/connectors/cross-connectors
Tendering informationhttps://ausschreiben.de/catalog/mastertec/catalogItem/681b2c0a-6e87-40ce-9529-d33def4e4552

Classification

BIMobject CategoryConstruction - Lightning protection
