Fixed earthing terminal M10/M12

To connect the equipotential bonding conductors to the foundation earth electrode, reinforcement and lightning protection system

available in Revit 2023-2027 and as IFC

Specification

material:
Fixed earthing terminal : stainless steel V4A
versions:

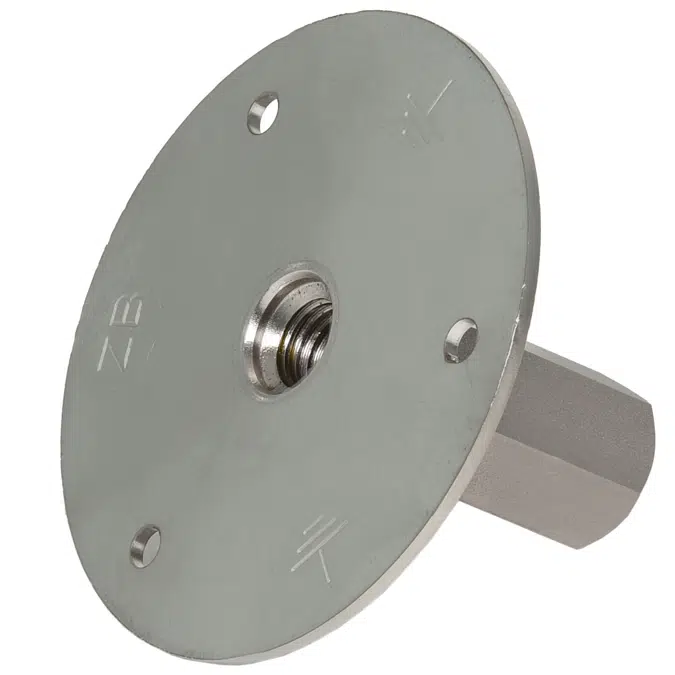

- Fixed earthing terminal M10/M12 without axis

  Revit model No. 1
  - Art.-No. 100187: V4A stainless steel

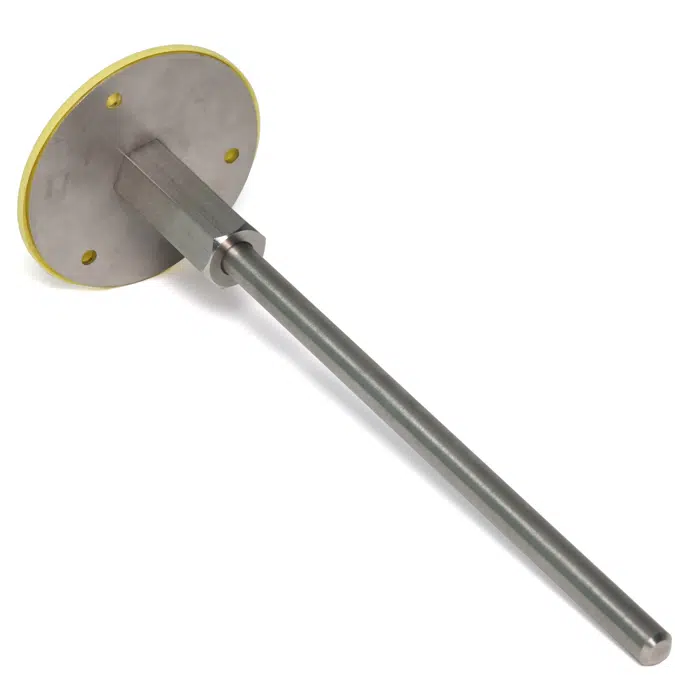

- Fixed earthing terminal M10/M12 with axle

  Revit model No. 2
  - Art.-No. 100202: V4A stainless steel with galvanised axis,
    total length 230 mm
  - Art.-No. 100204: V4A stainless steel with galvanised axis,
    total length 160 mm
  - Art.-No. 100203: V4A stainless steel with stainless steel axis,
    total length 230 mm
- Fixed earthing terminal M10/M12 with connecting clamp

  Revit model No. 3
  - Art.-No. 100200: V4A stainless steel with connecting clamp
