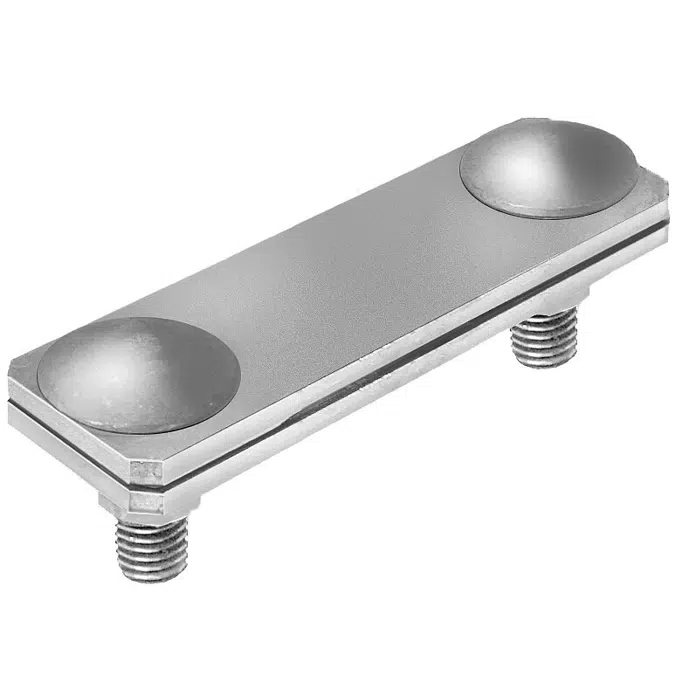

Double clamps

Double clamps

Double clamps

Double clamps

Double clamps

Double clamps

Double clamps

Double clamps

Double clamps

Double clamps

Suitable for the connection of flat conductors to flat conductors, flat conductors to round wires, or round wires to round wires.

available in Revit 2022-2027

Specification

material:
available in V4A stainless steel, V2A stainless steel or Fe/Zn or Fe
versions:

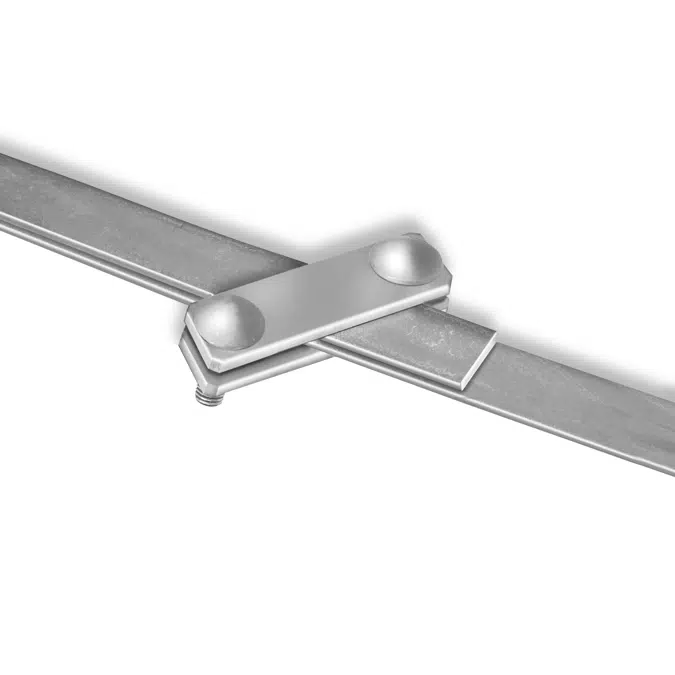

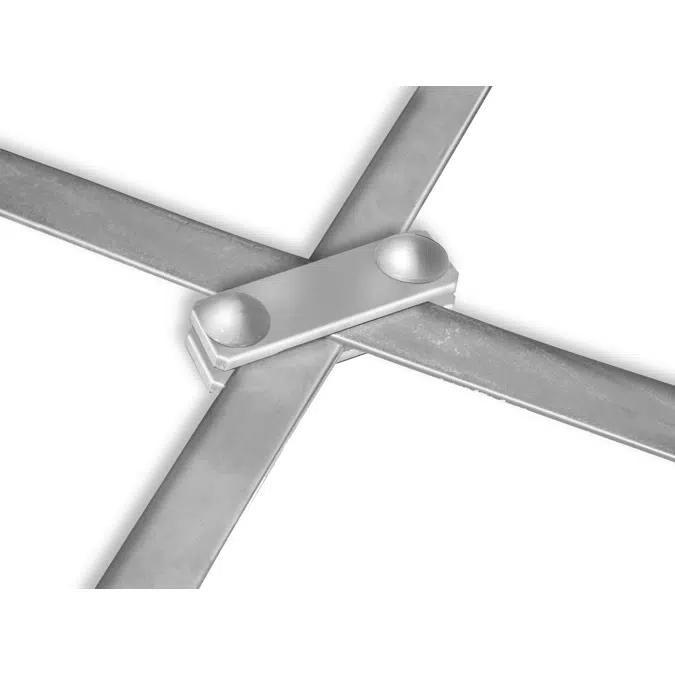

- Double clamp flat-flat

  Revit model No. 1
  - Art.-No. 100220: galvanised steel flat/flat
  - Art.-No. 100273: V4A stainless steel flat/flat

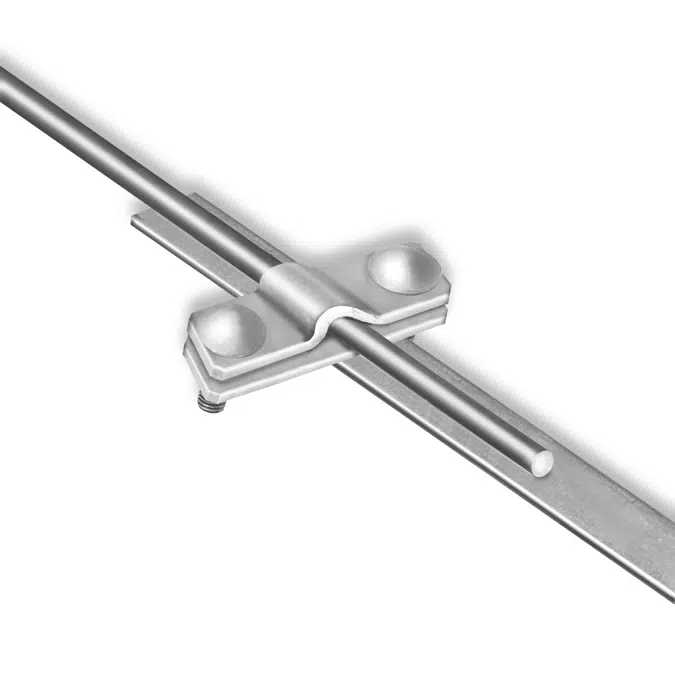

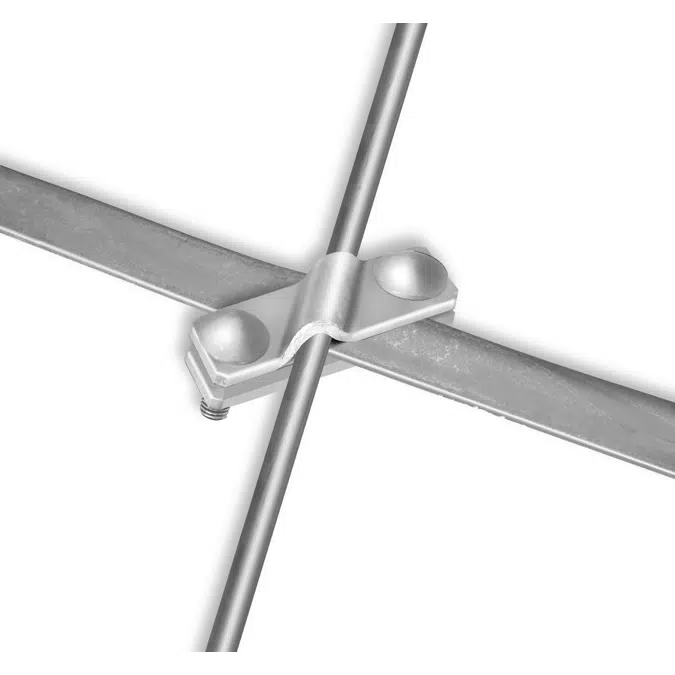

- Double clamp flat-round

  Revit model No. 2
  - Art.-No. 100225: galvanised steel flat/round
  - Art.-No. 100279: V4A stainless steel flat/round

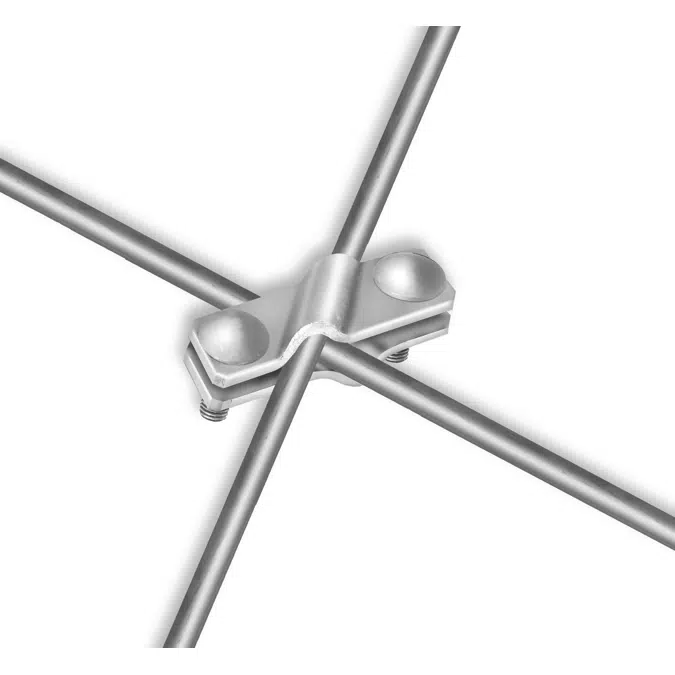

- Double clamp round-round

  Revit model No. 3
  - Art.-No. 100230: galvanised steel round/round
  - Art.-No. 100282: V2A stainless steel round/round
  - Art.-No. 100285: V4A stainless steel round/round

Technical specification

Unique ref.doppelklemmen
Date of publishing2025-12-17
Edition number1

Links

Product urlhttps://www.mastertec.eu/en/products/lightning-protection/connectors/double-clamps
Tendering informationhttps://ausschreiben.de/catalog/mastertec/catalogItem/c73a8f6f-c478-4959-88a3-160e0ca4820f

Classification

BIMobject CategoryConstruction - Lightning protection
