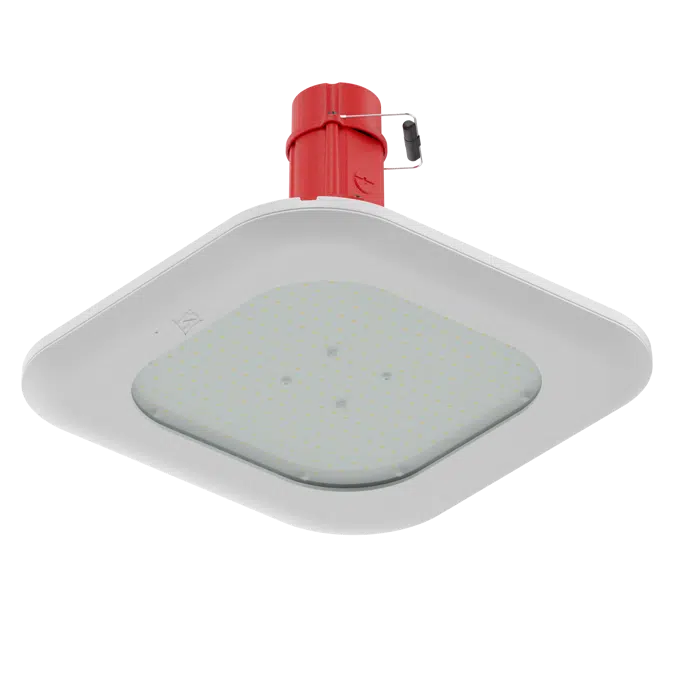

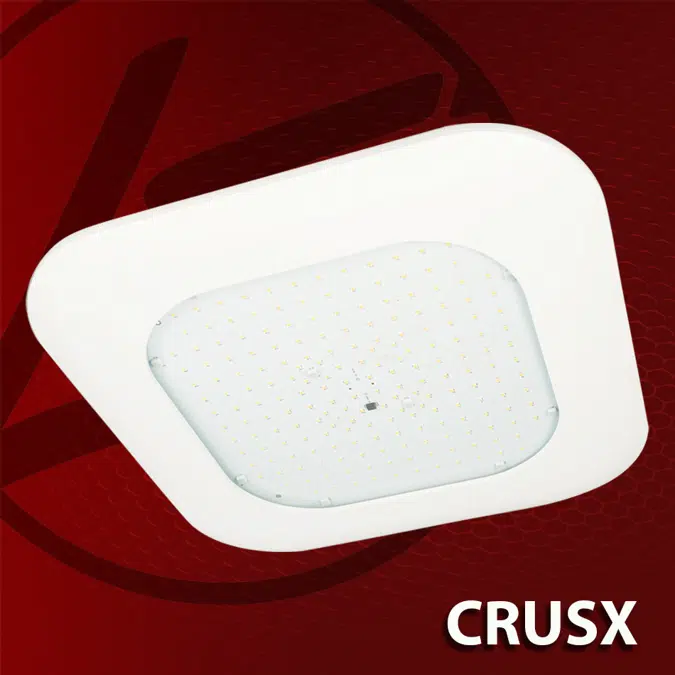

(CRUSX) Scottsdale LED Canopy Fixture

This ultra-slim LED canopy light delivers high performance in a sleek 15/16” die-cast housing with a flat tempered glass lens in clear or diffused options. IP66 rated and water-resistant, it features an integrated heat sink for thermal efficiency and LSI’s durable DuraGrip® powder coat finish to resist cracking and peeling.

Available in 3000K, 4000K, and 5000K (80 CRI) with symmetric or forward throw distributions, it provides 5,000–22,000 lumens. The integrated driver supports 120–277V, 0–10V dimming, and optional Bluetooth® Mesh control.

UL/ETL listed, DLC Premium, DarkSky approved (3000K), and Buy American Act compliant—ideal for petroleum and convenience store lighting.

Ideal Applications: Petroleum station lighting / gasoline station, convenience store lighting / C-Store lighting

Specification

Key Features
- Ultra-slim 15/16″ die-cast housing with clear or diffused tempered glass lens
- Durable white DuraGrip® powder coat finish
- IP66 rated, water-resistant design with integrated heat sink and pressure vent
Installation
- One-person setup compatible with Scottsdale and Encore systems

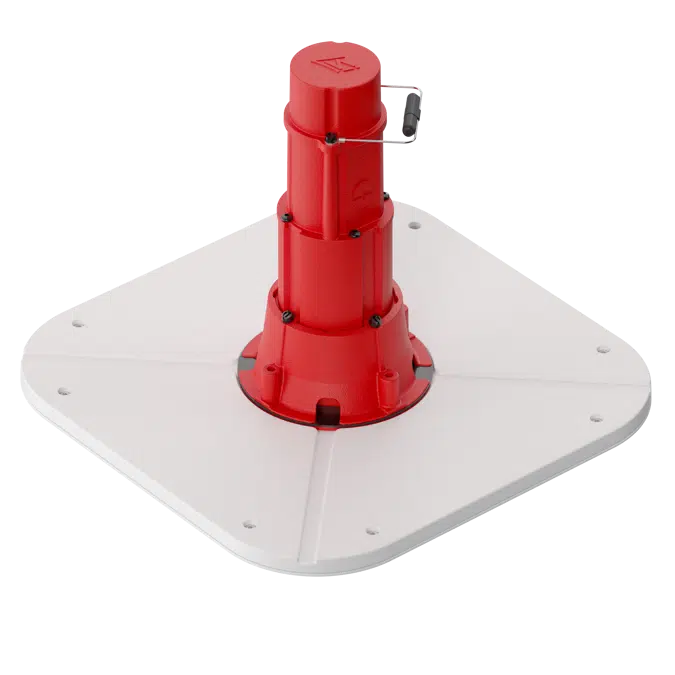

- Optional REDiMount™ quick-mount technology for faster installation
Optical System
- High-efficiency LEDs
- Available in 3000K, 4000K, and 5000K color temperatures
Symmetric or Forward Throw distributions
- Lumen output: 5,000 (min) to 22,000 (max) lumens
Electrical & Controls
- Integrated driver supports 120–277V
- 0–10V dimming
- BLE Mesh capabilities
- Sensors available: ALBMR1
Certifications & Warranty
- UL/ETL listed
- DLC Premium
- DarkSky approved
- Buy American Act compliant
- 5-year limited warranty
