    Alcon Lighting

    In-Ground Driveway Recessed LED Strip Light

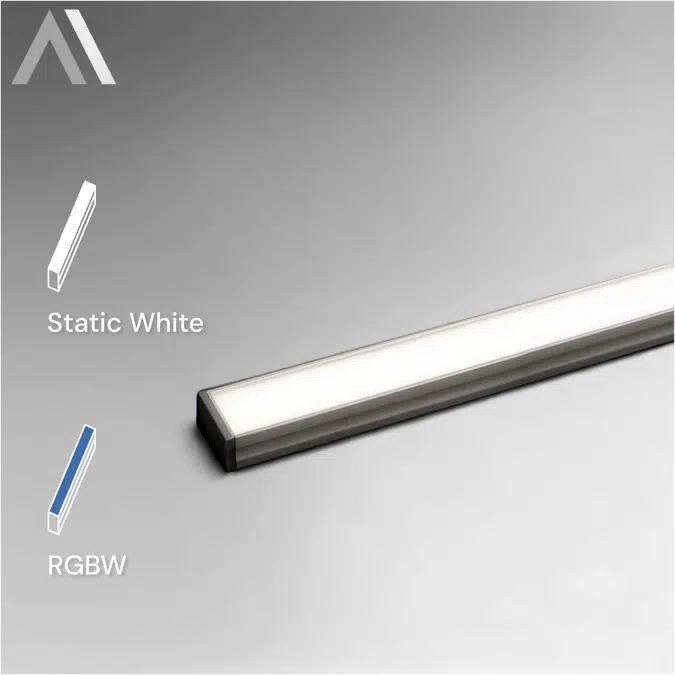

    Alcon Lighting’s 14120 in-ground recessed LED strip light delivers durable, high-performance illumination for driveways, hardscapes and other exterior applications. Constructed from military-grade aluminum with an anodized silver or custom RAL finish, the IP67-rated channel light withstands harsh outdoor conditions and supports drive-over loads up to 5,000 lbs. Designed for concrete installation, the strip light allows continuous runs up to 32 feet with a frosted, glare-free lens providing a 120° beam angle. The standard model delivers 320 lumens per foot at 5.3W with universal dimming, while the RGBW configuration offers full-spectrum RGB lighting plus 2700K or 4000K white lighting via mobile app, RF remote or DMX wall controls. Both models are field-cuttable and serviceable with a removable lens, making them ideal for lasting residential, commercial and public outdoor environments.

    Specification

    • Construction: Durable, military-grade aluminum suitable for recessed applications. UV-free & IR-free. Product is field-cuttable

      Concrete application: Fixture is designed to be installed in concrete

      Finish: Anodized silver or custom RAL

      Lens: Glare-free, frosted; lens can be removed in the future for repair if needed

      Max drive-over load: 5,000 lbs

      Max run: Continuous run length up to 32 ft

      Beam angle: 120°

      Wattage: 5.3 W/ft

      Lumens: 320 lm/ft

      Voltage: 24V LED Fixture

      14120 driver:120-277V TRIAC, ELV, MLV and 0-10V External Driver

      14120-RGBW driver: Remote non-dimming transformer is provided home run required every 16'

      14120 color temperature (CCT): 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K

      14120-RGBW color temperature (CCT): RGB+2700K, RGB+4000K

      RGBW controls: RF remote, DMX wall control + WiFi, Mobile app + WiFi – Easy Remote (iOS), Arcolis Remote (Android)

      CRI: 95+

      Life: 50,000 hours

      Warranty: 5 years

      Listings: Body is IP67 outdoor wet location-rated, LED tape light is IP65 outdoor-rated. UL listed for LED components, CE for LED components, RoHS for LED components, cETL listed for transformer

    Technical specification
    • Unique ref.14120-recessed-driveway-strip-light
    • Product familyOutdoor Lighting
    • Product groupHardscape Lighting
    • TypeObject (single object)
    • Date of publishing2025-11-21
    • Edition number1
