LED Dock light 220 VAC

The loading Systems LED dock light (220 VAC model) is used to illuminate the full length of truck trailers. The LED dock lights increase safety during loading and unloading. the dock light can be easily connected on the control panel. The light source has a 50.000 hours average rated life without changing lamps. it is powered by only 12 watts, which means that the Loading systems LED dock light is also energy efficient and offers a 92% energy savings over an incandescent dock light with a 150-watt lamp.

Specification

Our modular LED dock light (220 VAC version) delivers instant-on, bright and uniform light, easily illuminating the full length of truck trailers. With no filament to break, the LED head is also extremely durable and far more likely to survive an accidental impact.

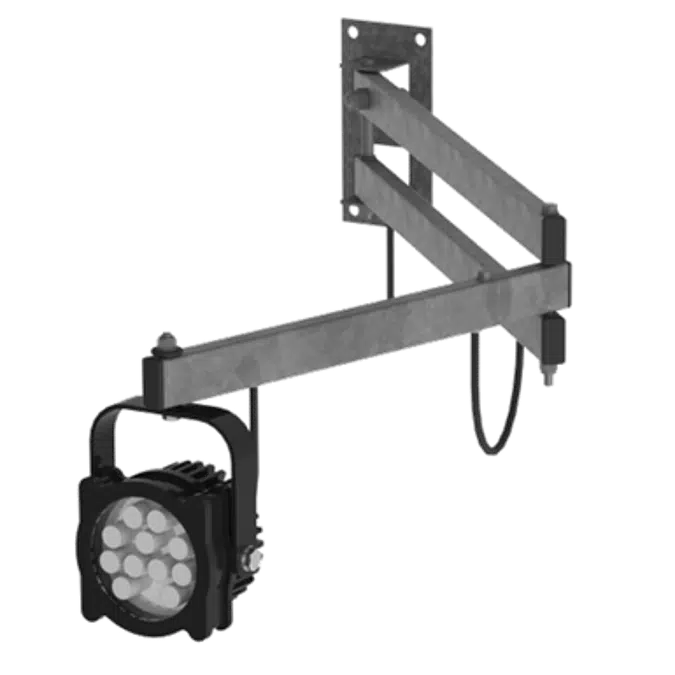

The dock light its arm is made from two robust profiles, which allow swinging the dock light in the required position.
The Loading Systems LED dock light is supplied as a set including swing arm and wiring. The optional DIN-rail transformer is mounted and connected to the control panel of other Loading Systems products.
Technical Specifications
- Standards CE certified
- Dimensions lamp (LxWxH) 98x156x160 mm
- Dimensions swing arm (LxWxH) 1124x166x284 mm
- Lifespan 50.000 hours
- Power consumption 12 W
- Numbers of LEDs 12
- Power connection 220 VAC
- Connection lamp C13 connector
- Protection class IP 67
- Weight (complete set) 6,8 kg
No rights may be derived from the BIM models.

Technical specification

Unique ref.led-dock-light-220-vac
Product familyLoading bay accessories
Product groupAll
TypeObject (single object)
Date of publishing2018-05-15
Edition number1
Height (mm)284
Width (mm)116
Depth (mm)1124

Links

Product urlhttps://www.loading-systems.com/products/accessories/dock-lights
Product certificationhttps://www.loading-systems.com/system/files/DRL/EN/10/090/920/CE%20EN%20920%20LSI.pdf
Technical descriptionhttps://www.loading-systems.com/system/files/DRL/EN/07/090/920/21EN-920-220V.pdf

Material mainAluminium
Material secondaryGalvanized steel
Manufactured inNetherlands
Weight Net (Kg)6.8

Classification

BIMobject CategoryLighting - Wall Mounted
IFC classificationLamp
UNSPSC nameLamps and lightbulbs
UNSPSC code391016
CSI MasterFormat 2014 Code11 13 26
CSI MasterFormat 2014 TitleLoading Dock Lights
OmniClass Number23-23 23 00
OmniClass TitleLoading Dock Equipment
